Product Details:
|
| DELL: | Dell PowerEdge R760 2U | Memory: | 32 DDR5 DIMM Slots Supporting |
|---|---|---|---|
| Drive Bracket: | 12x3.5-inch SAS/SATA，8x2.5-inch SAS/SATA/NVMe，16x2.5 Inch SAS/SATA/NVMe，24x2.5-inch SAS/SATA/NVME | Storage Controllers: | PERC H965i、PERC H755、PERC H755N、PERC H355、HBA355i |
| Highlight: | 2U Dell PowerEdge R760,Storage virtualization host Dell PowerEdge R760,AI intelligent GPU Dell PowerEdge R760 |
||

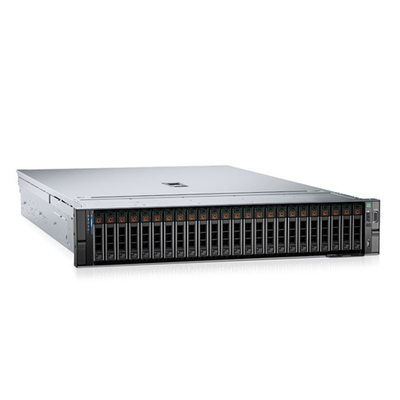

Dell Edge R760 rack mounted server
The all-new Dell Edge R760 is a 2U dual rack server. This fully functional enterprise server is designed to optimize demanding workloads such as artificial intelligence and machine learning, providing you with the outstanding performance you need.
maximum performance
Add up to two next-generation Intel processors ® xeon ® Scalable processor with up to 56 cores for faster and more accurate processing performance.
Accelerate in memory workloads with up to 32 DDR5 RDIMs (up to 4400 MT/s (2DPC) or 1DPC 4800 MT/s (1DPC), up to 16 DDR5 RDIMs).
Supports GPUs, including 2 dual width GPUs or 6 single width GPUs, suitable for workloads that require acceleration.
Air cooling at peak performance
The new intelligent flow case can optimize ventilation to support the highest number of CPUs in air-cooled environments within the current IT infrastructure.
Supports up to 16 2.5 "drives and 2 350 W processors.
Gain agility
Utilize multiple chassis designs tailored to your desired workload and business goals to achieve maximum efficiency.
Storage options include up to 12 3.5 "SAS3/SATA; or up to 24 2.5" SAS4/SATA, up to 24 NVME U.2 4th generation, and 16 NVME E3. S 5th generation *.
Multiple 4th and 5th generation adapter card configurations (up to 8 PCIe slots) with interchangeable components that can be seamlessly integrated over time to meet customer needs.
Network, flexible architecture for zero-trust IT environments and operations
Security is integrated at each stage of the PowerEdge life cycle, including protected supply chain and plant- to-site integrity assurance. Silicon wafer-based trust root has built-in end-to-end startup elasticity, while
multi-factor authentication (MFA) and role-based access control ensure trusted operations.
Improve efficiency and accelerate operations through self-directed collaboration
Dell OpenManage ™ The system management product portfolio is PowerEdge, and servers provide secure, efficient and comprehensive solutions. With the OpenManage Enterprise console and the iDRAC, the one- to-many management is simplified, automated, and centralized.
| function | technical specifications |
| processor | Up to two 4th generation Intel Xeon scalable processors, each with up to 56 cores, and optional Intel®QuickAssist Technology |
| internal storage |
32 DDR5 DIMM slots supporting up to RDIMM 8 TB and speeds up to 4800 MT / s Only the register formula ECC DDR 5 DIMM is supported |
| memory controller |
Internal controller: PERC H 965i, PERC H 755, PERC H 755N, PERC H 355, HBA 355i Internal boot: Boot Optimized Storage Su bsystem (BOSS-N 1): HWRAID 2 x M NVMe SSD or USB.2 External HBA (non-RAID): HBA 355e Software RAID: S160 |
| Drive bracket |
Front tray: Up to 12 3.5-inch SAS / SATA (HDD / SSD), up to 240 TB Up to 8 x 2.5-inch SAS / SATA / NVMe (HDD / SSD), up to 122 .88 TB Up to 16 x 2.5 inch SAS / SATA / NVMe (HDD / SSD), maximum 245 .76 TB Up to 24 2.5-inch SAS / SATA / NVME (HDD / SSD) with a maximum of 368 .64 TB Back rack: Up to 2 x 2.5 inches SAS / SATA / NVMe (HDD / SSD) with a maximum of 30.72 TB Up to 4 x 2.5 inches SAS / SATA / NVMe (HDD / SSD), maximum 61.44 TB |
| supply unit |
2800 W titanium grade 200-240 VAC or 240 HVDC, hot swap redundancy 2400 W Platinum Class 100-240 VAC or 240 HVDC with hot swap redundancy 1800 W titanium grade 200-240 VAC or 240 HVDC, hot swap redundancy 1400 W Platinum Class 100-240 VAC or 240 HVDC with hot swap redundancy 1100 W titanium grade 100-240 VAC or 240 HVDC, hot swap redundancy 1100 W LVDC-48 to-60 VDC, hot-swap redundancy 800 W Platinum Class 100-240 VAC or 240 H, with hot swap redundancy 700 W titanium grade 200-240 VAC or 240 HVDC, hot swap redundancy |
| Cooling options |
• air cooling Optional Direct Liquid Cooling (DLC) Note: DLC is a rack solution that requires a rack valve bank and a cooling power distribution unit (CDU) to operate. |
| electric fan | Standard (STD) fan / High Performance Silver Class (HPR) fan / High Performance Gold Class (VHP) fan Up to 6 hot-swap fans |
| size |
Height-86.8 mm (3 .41 in .) Width-482 mm ( 18 .97 in .) Depth-772. 13 mm (30.39 inches) with baffle 758.29 mm (29.85, in) without baffle |
| Appearance specifications | A 2U rack-type server |
| Embedded management |
• iDRAC 9 • iDRAC Direct The iDRAC RESTful API with the Redfish • iDRAC Service Module Quick Sync 2 Wireless module |
| guard | Optional LCD screen baffle or safety baffle |
| Ope nManage Software |
For CloudIQ for the PowerEdge plug-in • OpenManage Enterprise • OpenManage Enterprise Integration for VMware vCenter • OpenManage Integration for Microsoft System Center • OpenManage Integration with Windows Admin Center OpenManage Power Manager Add-in OpenManage Service plug-in OpenManage Update Manager Add-in |
| mobility | Open Manage Mobile |
| OpenM anage Integrations |
• BMC Truesight • Microsoft System Center • OpenManage Integration with ServiceNow • Red Hat Ansible Modules Terraform Provider VMware vCenter and vRealize Operations Manager |
| safety |
Encrypts the signature firmware Static data encryption (SED with local or external key management) Safe startup Security erase Security Component Verification (Hardware Integrity Check) Silicon chip trust root System lock (iDRAC 9 Enterprise or Datacenter is required) TPM 2.0 FI PS, CC-TCG certification, TPM 2.0 China NationZ |
| flushbonading NIC | 21 GbE LOM cards (optional) |
| Network options |
1 OCP 3.0 card (optional) Note: LOM cards or OCP cards or both are allowed in the system. |
| GPU option | Up to 2 x 350 W DW and 6 x 75 W SW |
| function | technical specifications | |
| port |
Preport The 1 x iDRAC Direct (Micro-AB USB) port 1 for the USB 2.0 1 with a VGA |
Rear port 1 dedicated iDRAC, Ethernet port 1 for the USB 2.0 1 for USB 3.0 1 with a VGA 1 Serial (optional) 1 VGA (optional for direct liquid cooling configuration) |
|
Internal port 1 for USB 3.0 (optional) |
||
| P CIe |
Up to eight PCIe slots Slot 1:1 x 8 5.0; or 1 x 8 / 1 x 16 4.0 full height, half length; or 1 x16 4.0 full height, full length Slot 2:1 x 8 / 1 x 16 5.0; or 1 x 8 4.0 full height, half length; or 1 x16 5.0 full height, full length Slot 3:1 x 16 4.0 is half high, half long Slot 4:1 x 8 4.0 full height, half long Slot 5:1 x 8 / 1 x 16 4.0 full height, half length; or 1 x16 4.0 full height, full length Slot 6:1 x 16 4.0 is half high, half long Slot 7:1 x 8 / 1 x 16 5.0; or 1 x8 4.0 full height, half length Slot 7 SNAPI: 1 x 16 5.0 full height, half long Slot 8:1 x 8 5.0; or 1 x8 4.0 full height, half length |
|
| Operating system and the virtual machine hypervisor |
• Canonical Ubuntu Server LTS The Microsoft Windows Server with the Hyper-V • Red Hat Enterprise Linux • SUSE Linux Enterprise Server • VMware ESXi For details on specifications and interoperability, see Dell.com/OSsupport . |
|
|
The OEM-ready version is available |
From baffle to BIOS to packaging, your server is like you designed and built. For more information, please visit the Dell. The com- > Solutions- > OEM solution. | |
