Product Details:
|
| Processor: | Up To Two 3rd Generation Intel® Xeon® Scalable Processors With Up To 24 Cores Per Processor | Memory Module Slots: | 32 DDR4 DIMM Slots |
|---|---|---|---|
| Front Bays: | Up To 8 X 2.5-inch SAS/SATA/NVMe (HDD/SSD) Max 122.8 TB | Internal Controllers: | PERC H745, H345, HBA355I, H755, H755N |
| External Controllers: | PERC H840, HBA355E | Slots: | Up To 3 X PCIe Gen4 Low Profile Slots (all X16 Except One X8 Slot With SNAPI I/O Option) Or 2 X PCIe (Gen4) Full Height Slots |
| Highlight: | Dense SDS 1U Rackmount Computer EMC,SDS 1U Rackmount EMC R650 Storages,SDS 1U Rackmount R650 Storages |
||
server computer Database and Analytics, Dense SDS, high density virtualization DELL EMC PowerEdge R650 robot server
Dell EMC PowerEdge R650
Compelling performance, high scalability, and density
The Dell EMC PowerEdge R650, is a full-featuredenterprise server, designed to optimize workloads performance and data center density.
Innovate at scale with challenging and emerging workloads
The Dell EMC PowerEdge R650, powered by the 3rd Generation Intel® Xeon® Scalable processors is the optimal rack server to address application performance and acceleration. The PowerEdge R650, is a dual-socket/1U rack server that delivers outstanding performance for the most demanding workloads. It supports 8 channels of memory per CPU, and up to 32 DDR4 DIMMs @ 3200 MT/s speeds. In addition, to address substantial throughput improvements the PowerEdge R650 supports PCIe Gen 4 and up to 12 NVMe drives with improved air-cooling features and optional Direct Liquid Cooling to support increasing power and thermal requirements. This makes the PowerEdge R650 an ideal server for data center standardization on a wide range of workloads including; Database and Analytics, HighFrequency Trading, Traditional corporate IT, Virtual Desktop Infrastructure, and even HPC or AI/ML environments that require performance, and GPU support in a dense 1U form factor.
Increase efficiency and accelerate operations with autonomous collaboration
The Dell EMC OpenManage systems management portfolio tames the complexity of managing and securing IT infrastructure. Using Dell Technologies’ intuitive end-to-end tools, IT can deliver a secure, integrated experience by reducing process and information silos in order to focus on growing the business. The Dell EMC OpenManage portfolio is the key to your innovation engine, unlocking the tools and automation that help you scale, manage, and protect your technology environment.
• Built-in telemetry streaming, thermal management, and RESTful API with Redfish offer streamlined visibility and control for better server management
• Intelligent automation lets you enable cooperation between human actions and system capabilities for added productivity
• Integrated change management capabilities for update planning and seamless, zero-touch configuration and implementation
• Full-stack management integration with Microsoft, VMware, ServiceNow, Ansible and many other tools
Protect your data assets and infrastructure with proactive resilience
The Dell EMC PowerEdge R650 server is designed with a cyber-resilient architecture, integrating security deeply into every phase in the lifecycle, from design to retirement.
• Operate your workloads on a secure platform anchored by cryptographically trusted booting and silicon root of trust
• Maintain server firmware safety with digitally signed firmware packages
• Prevent unauthorized configuration or firmware change with system lockdown
• Securely and quickly wipe all data from storage media, including hard drives, SSDs and system memory with System Erase
PowerEdge R650
The Dell EMC PowerEdge R650 offers compelling performance, highspeed memory and capacity, I/O bandwidth and storage to address data requirements – Ideal for:
• Traditional corporate IT
• Database and Analytics
• Virtual Desktop Infrastructure
• AI/ML and HPC
| Feature | PowerEdge R650 | PowerEdge R640 |
| CPU | 2 x 3rd Generation Intel® Xeon® Processor Scalable Family |
2 x 2nd Generation Intel® Xeon® Processor Scalable Family |
| CPU interconnect | Intel Ultra Path Interconnect (UPI) | Intel Ultra Path Interconnect (UPI) |
| Memory | 32 x DDR4 RDIMM, LRDIMM 16 x PMem ( Intel Optane Persistent Memory 200 Series) |
24 x DDR4 RDIMM, LRDIMM 12 x NVDIMM 12 x PMem (Intel Optane Apache Pass) |
| Storage drives | 3.5 inches, 2.5 inches- 12 Gb SAS, 6 Gb SATA, NVMe |
3.5 inches, 2.5 inches- 12 Gb SAS, 6 Gb SATA, NVMe |
| Storage controllers | Adapters: HBA355E, H840 PERC: HBA355i, H345, H355, H745, H755, H755N BOSS- S1 adapter BOSS S2 SW RAID: S150 |
Adapters: HBA330, H330, H730P, H740P, H840, 12G SAS HBA Mini Mono: HBA330, H330, H730P, H740P SW RAID: S140 |
| PCIe SSD | Up to 10+2 (10 x direct attach in front, and 2 x direct attach in rear) |
Up to 10 (8 x direct attach, 2 x from PCIe bridge card) |
| PCIe slots | Max 3 PCIe 4.0 | Max 3 PCIe 3.0 |
| LOM | 2 x 1 Gb | NA |
| Networking | OCP 3.0 (x8 PCIe) | rNDC |
| Rack height | 1U | 1U |
| Power supplies | 100~240 V AC/240 V DC: 800 W, 1100 W, 1400 W DC - 48 V ~- 60 V :1100 W |
AC (Platinum): 495 W, 750 W, 1100 W, 1600W, 2000W, 2400W AC (Titanium): 750 W DC: 1100 W Mix Mode/HVDC: 750 W, 1100 W |
| System management | LC 4.x, OpenManage, QuickSync2.0, Digital License Key, iDRAC Direct (dedicated micro-USB port), Easy Restore |
LC 3.x, OpenManage, QuickSync 2.0, OMPC3, Digital License Key, iDRAC Direct (dedicated micro-USB port), Easy Restore, vFlash |
| Internal GPU | Up to 3 x 75 W (SW) | Up to 3 x 70 W (SW) |
| Availability | Hot-plug drives Hot-plug redundant cooling Hot-plug redundant power supplies Hot-plug BOSS S2 IDSDM |
Hot-plug drives Hot-plug redundant cooling Hot-plug redundant Power supplies BOSS IDSDM |

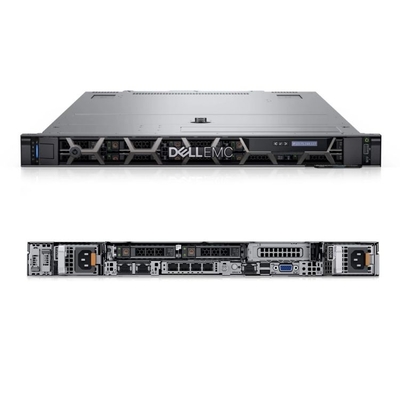

Chassis views and features

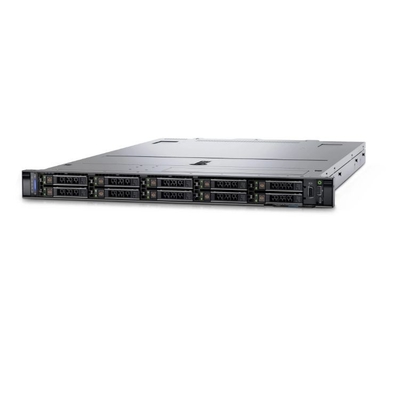

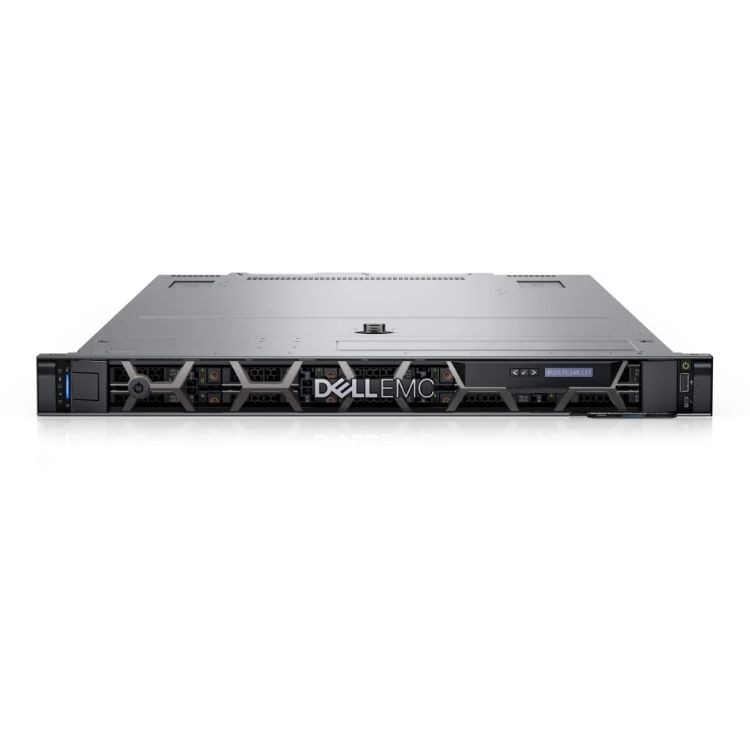

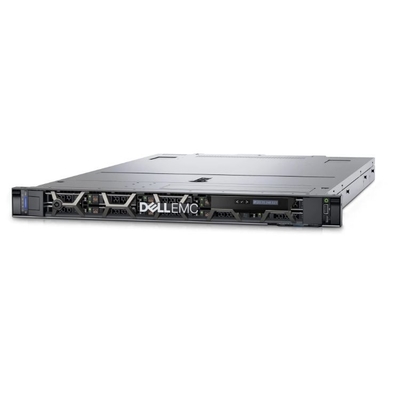

Front view of the system
Figure 1. Front view of the R650, 4x 3.5 inches Chassis
Figure 2. Front view of the R650, 8x 2.5 inches SAS/SATA Chassis
Figure 3. Front view of the R650, 8x 2.5 inches NVMe Chassis
Figure 4. Front View of the R650, 10x 2.5 inches SAS/SATA or NVMe

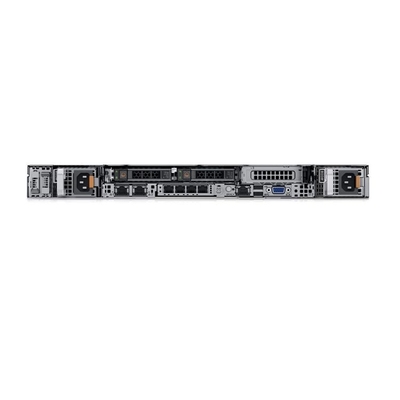

Rear view of the system
Figure 5. Rear view of the R650 with 3x LP PCIe Gen4 slots and Hot-plug BOSS
Figure 6. Rear view of the R650 with 2x 2.5 inches Storage drives, 1x LP PCIe Gen4 slot and Hot-plug BOSS
Figure 7. Rear view of the R650 with 2x FH PCIe Gen4 slots and Hot-plug BOSS without rear storage
Inside the system
Figure 8. Inside the system, R650 with 3x LP PCIe Gen 4 slots
