Product Details:
|
Processor: | Up To Two 3rd Generation Intel® Xeon® Scalable Processors, With Up To 40 Cores Per Processor | Memory Module Slots: | 32 DDR4 DIMM Slots |
---|---|---|---|
Front Bays: | Up To 12 X 3.5-inch SAS/SATA (HDD/SSD) Max 192 TB | Internal Controllers: | PERC H745, HBA355I, PERC H345, PERC H755, PERC H755N |
External Controllers: | PERC H840, HBA355E | Slots PCIe: | Up To 8 X PCIe Gen4 Slots (up To 6 X16) With Support For SNAP I/O Modules |
Highlight: | 2U Dell Poweredge Server,Dell EMC R750,32GB Dell Poweredge Server |
Database and analytics, VDI, AI, ML and inferencing DELL EMC PowerEdge R750 Rack Server 2U server computer
Dell EMC PowerEdge R750
General purpose server optimized to address the most demanding workloads
The Dell EMC PowerEdge R750, is a full-featured enterprise server, delivering outstanding performance for the most demanding workloads.
Innovate at scale with challenging and emerging workloads
The Dell EMC PowerEdge R750, powered by the 3rd Generation Intel® Xeon® Scalable processors is a rack server to address application performance and acceleration. The PowerEdge R750, is a dual-socket/2U rack server that delivers outstanding performance for the most demanding workloads. It supports 8 channels of memory per CPU, Mand up to 32 DDR4 DIMMs @ 3200 MT/s speeds. In addition, to address substantial throughput improvements the PowerEdge R750 supports PCIe Gen 4 and up to 24 NVMe drives with improved air-cooling features and optional Direct Liquid Cooling to support increasing power and thermal requirements. This makes the PowerEdge R750 an ideal server for data center standardization on a wide range of workloads including; Database and Analytics, Highperformance computing (HPC), Traditional corporate IT, Virtual Desktop Infrastructure, and AI/ML environments that require performance, extensive storage and GPU support.
Increase efficiency and accelerate operations with autonomous collaboration
The Dell EMC OpenManage systems management portfolio tames the complexity of managing and securing IT infrastructure. Using Dell Technologies’ intuitive end-to-end tools, IT can deliver a secure, integrated experience by reducing process and information silos in order to focus on growing the business. The Dell EMC OpenManage portfolio is the key to your innovation engine, unlocking the tools and automation that help you scale, manage, and protect your technology environment.
• Built-in telemetry streaming, thermal management, and RESTful API with Redfish offer streamlined visibility and control for better server management
• Intelligent automation lets you enable cooperation between human actions and system capabilities for added productivity
• Integrated change management capabilities for update planning and seamless, zero-touch configuration and implementation
• Full-stack management integration with Microsoft, VMware, ServiceNow, Ansible and many other tools
Protect your data assets and infrastructure with proactive resilience
The Dell EMC PowerEdge R750 server is designed with a cyber-resilient architecture, integrating security deeply into every phase in the lifecycle, from design to retirement.
• Operate your workloads on a secure platform anchored by cryptographically trusted booting and silicon root of trust
• Maintain server firmware safety with digitally signed firmware packages
• Prevent unauthorized configuration or firmware change with system lockdown
• Securely and quickly wipe all data from storage media, including hard drives, SSDs and system memory with System Erase
PowerEdge R750
The Dell EMC PowerEdge R750 offers compelling performance, highspeed memory and capacity, I/O bandwidth and storage to address data requirements – Ideal for:
• Traditional corporate IT
• Database and Analytics
• Virtual Desktop Infrastructure
• AI/ML and HPC
Feature | PowerEdge R750 | PowerEdge 740 |
CPU | 2x 3rd Generation Intel® Xeon® Processor Scalable Family |
2x 2nd Generation Intel® Xeon® Processor Scalable Family |
CPU Interconnect | Intel Ultra Path Interconnect (UPI) | Intel Ultra Path Interconnect (UPI) |
Memory | 32x DDR4 RDIMM, LRDIMM 16x PMem ( Intel Optane Persistent Memory 200 Series) |
24x DDR4 RDIMM, LRDIMM 12x NVDIMM 12x PMem (Intel Optane Apache Pass) |
Storage Drives | 3.5 inches, 2.5 inches- 12Gb SAS, 6Gb SATA, NVMe |
3.5 inches, 2.5 inches- 12Gb SAS, 6Gb SATA, NVMe |
Storage Controllers | Adapters: HBA355I, HBA355E, H345, H745, H755, H755N, H840 BOSS S1 BOSS S2 SW RAID: S150 |
Adapters: HBA330, H330, H730P, H740P, H840, 12G SAS HBA Mini Mono: HBA330, H330, H730P, H740P SW RAID: S140 |
NVMe | Up to 24x NVMe drives | Up to 24x NVMe drives |
PCIe Slots | Max 8 PCIe 4.0 (up to 6 x16 slots) | Max 8 PCIe 3.0 (up to 4 x16 slots) |
LOM | 2x 1Gb | N/A |
Networking | OCP 3.0 (x8 PCIe) | rNDC |
USB Ports | Front: 1 ports (USB 2.0), 1 dedicated (micro-USB) Rear: 2 ports (Bottom: USB 3.0, Top: USB 2.0) Internal: 1 port (USB 3.0) for IDSDM/ internal USB cards up-sell option |
Front: 2 ports (USB 2.0), 1 managed (micro-USB) Rear: 2 ports (USB 3.0) Internal: 1 port (USB 3.0) Optional Upsell: 1 Front port (USB 3.0) - Not offered on xd |
Rack Height | 2U | 2U |
Power Supplies | 100~240VAC/240VDC: 800W, 1100W, 1400W, 2400W DC-48V~-60V :1100W |
AC (Platinum): 495W, 750W, 1100W, 1600W, 2000W, 2400W AC(Titanium): 750W DC: 1100W Mix Mode/HVDC: 750W, 1100W |
System Management | LC 3.x, OpenManage, QuickSync2.0, OMPC3, Digital License Key, iDRAC Direct (dedicated micro-USB port), Easy Restore |
LC 3.x, OpenManage, QuickSync 2.0, OMPC3, Digital License Key, iDRAC Direct (dedicated micro-USB port), Easy Restore, vFlash |
Internal GPU | Up to 2x double width, FH, FL (300W each) Up to 4x16 single width, FH, FL (150W each) or 6x8 PCIe single width FH, FL (75W each) Up to 6x single width, LP/FH, HL (75W each) |
3x 300W (DW) or 6x 75W (SW) |
Availability | Hot-plug Drives Hot-plug Redundant Cooling Hot-plug Redundant Power Supplies IDSDM Hot-plug BOSS S2 BOSS S1 |
Hot-plug Drives |
Chassis views and features

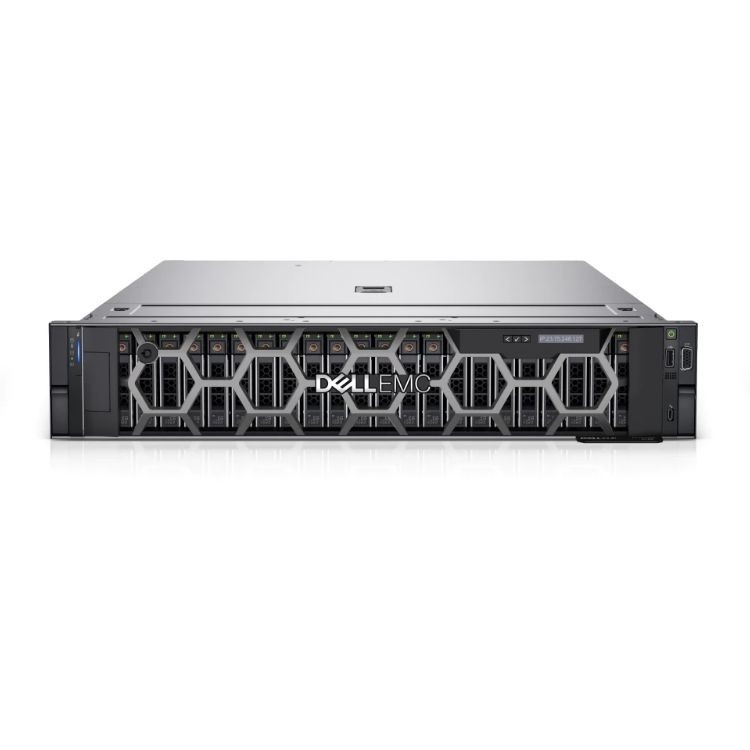

Front view of the system
Figure 1. Front view of the R750, 24x 2.5 inches Chassis
Figure 2. 24x SAS/SATA or 24x NVMe
Figure 3. 16x SAS/SATA + 8x NVMe
Figure 4. Front view of the R750, 16x 2.5 inches SAS/SATA Chassis
Figure 5. Front view of the R750, 16x 2.5 inches SAS/SATA Chassis
Figure 6. Front view of the R750, 8x 2.5 inches Chassis
Figure 7. Front view of the R750, 8x 2.5 inches Chassis

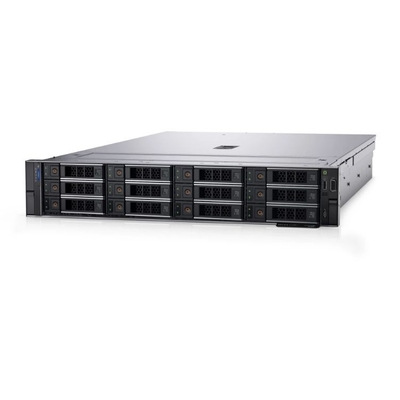

Figure 8. Front View of the R750, 12x 3.5 inches SAS/SATA Chassis
Figure 9. Front View of the R750, 12x 3.5 inches SAS/SATA Chassis

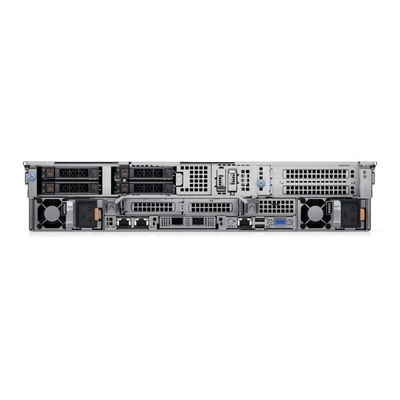

Rear view of the system
Figure 10. Rear view of the R750 with 2x 2.5 inches storage drives, 6x PCIe Gen4 slots and Hot-plug BOSS
Figure 11. Rear view of the R750 with 8x PCIe Gen4 slots and Hot-plug BOSS
Figure 12. Rear view of the R750 with 4x 2.5 inches storage drives, 4x PCIe Gen4 slot and Hot-plug BOSS
Inside the system
