Product Details:
|

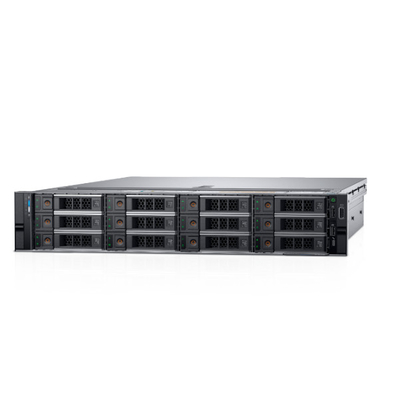

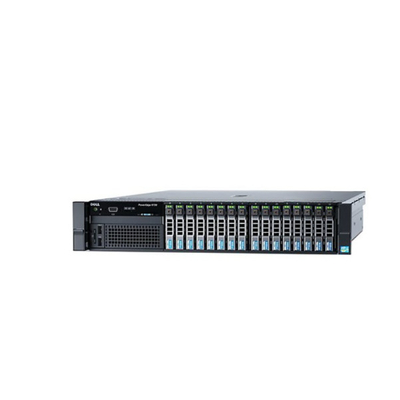

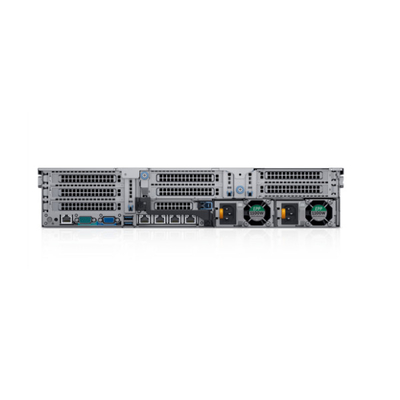

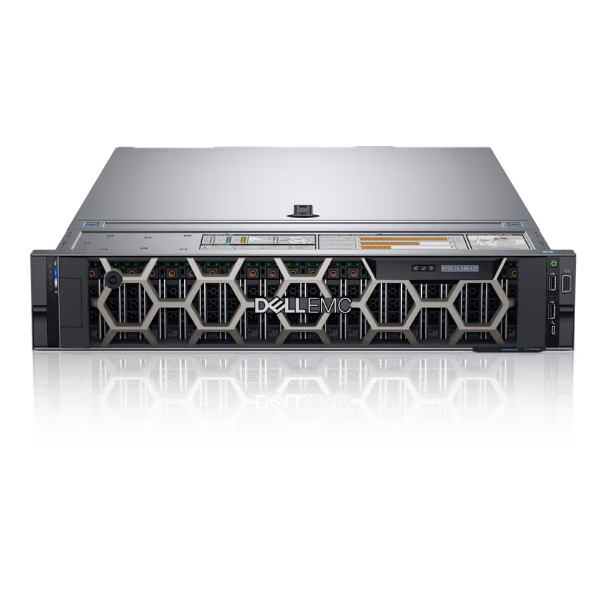

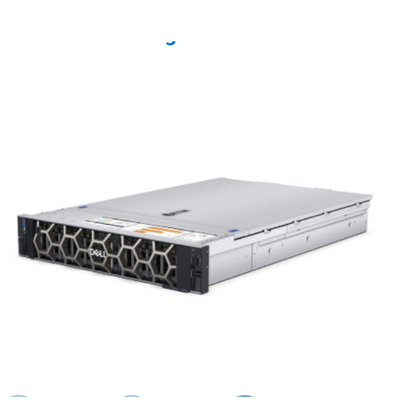

| DELL: | Dell EMC PowerEdge R740 2U | Memory: | 24 DDR4 DIMM Slots |
|---|---|---|---|
| Storage: | Storage 8 X 3.5″ Or 12 X 3.5″ Drives | Storage Controllers: | PERC H330, H730P, H740P, HBA330, H750, HBA350i |
| Highlight: | 2U Dell Poweredge Server,24ddr4 Dimm Slots Dell Poweredge Server |
||
dell emc R740Expand and optimize application performance
| [210-AKXJ] | PowerEdge R740 Server |
| [461-AADZ] | No Trusted Platform Module |
| [412-AAIR], [412-AAIR] | 2 Standard Heatsinks for greater than 125W CPUs (no GPU) |
| [370-AAIP] | Performance Optimized |
| [370-AEVR] | 3200MT/s RDIMMs |
| [370-AGDS] | 32GB RDIMM, 3200MT/s, Dual Rank, 16Gb BASE x8 |
| [619-ABVR] | No Operating System |
| [605-BBFN] | No Media Required |
| [780-BCDS] | C7, Unconfigured RAID for HDDs or SSDs (Mixed Drive Types Allowed) |
| [750-AABF] | Power Saving Dell Active Power Controller |
| [384-BBPY] | 6 Standard Fans for R740/740XD |
| [450-AJSC] | Dual, Hot-plug, Redundant Power Supply (1+1), 750W |
| [450-AADY] | Rack Power Cord 2M (C13/C14 10A) |
| [330-BBHB] | Riser Config 2, 3 x8, 1 x16 slots |
| [708-10082] | Configuration Services, Standard ISG System Report, Deliver Via Email |
| [325-BCHU], [350-BBKG] | PowerEdge 2U Standard Bezel |
| [770-BBBR] | ReadyRails™ Sliding Rails With Cable Management Arm |
| [429-ABBJ] | No Internal Optical Drive |
| [379-BCQV] | iDRAC Group Manager, Enabled |
| [293-10049] | Order Configuration Shipbox Label (Ship Date, Model, Processor Speed, HDD Size, RAM) |
| [991-10021] | Consolidation Fee |
| [329-BEIK] | PowerEdge R740/R740XD Motherboard |
| [800-11671] | Enterprise Order - EMEA |
| [389-EFJU] | Platinum PSU Configuration |
| [631-AACK] | No Systems Documentation, No OpenManage DVD Kit |
| [340-COWD] | PowerEdge R740 Shipping EMEA2 (English/Slovenian/Slovakian/Polish/Czech/Hungar/Greek/Arab) |
| [293-10025] | Asset Tag - ProSupport (Website, barcode, Onboard MacAddress) |
| [343-BBFG] | PowerEdge R740 Shipping Material |
| [389-DTDL] | PowerEdge R740 CE,CCC,BIS Marking |
| [709-BBIY] | Parts Only Warranty 12Months, 12 Month(s) |
| [683-11870] | No Installation Service Selected (Contact Sales rep for more details) |
| [321-BCSN] | Chassis with up to 16 x 2.5" SAS/SATA Hard Drives for 2CPU Configuration |
| [405-AAOE] | PERC H730P RAID Controller, 2Gb NV Cache, Adapter, Low Profile |
| [338-BTSI] | Intel Xeon Gold 6238 2.1G, 22C/44T, 10.4GT/s, 30.25M Cache, Turbo, HT (140W) DDR4-2933 |
| [338-BTSI], [379-BDCO] | Intel Xeon Gold 6238 2.1G, 22C/44T, 10.4GT/s, 30.25M Cache, Turbo, HT (140W) DDR4-2933 |
| [400-AZUT] | 480GB SSD SATA Mix Use 6Gbps 512 2.5in Hot-plug AG Drive, 3 DWPD, |
| [345-BDUI] | 3.84TB SSD SATA Read Intensive 6Gbps 512e 2.5in S4520 Hot-Plug |
| [800-BBDM] | UEFI BIOS Setting |
| [385-BBKT], [528-BIYY] | iDRAC9 Enterprise with OpenManage Enterprise Advanced |
| [540-BDIE] | Mellanox ConnectX-4 Lx Dual Port 10/25GbE SFP28 rNDC, V2 |
| [540-BDIU] | Mellanox ConnectX-4 LX Dual Port 10/25GbE SFP28 Adapter, PCIe Full Height, V2 |
| [379-BCSG] | iDRAC Legacy Password |
| [350-BBJV] | No Quick Sync |
| Processor | Up to two 2nd Generation Intel庐 Xeon庐 Scalable processors, up to 28 cores per processor |
| Memory | 24 DDR4 DIMM slots, Supports RDIMM /LRDIMM, speeds up to 2933MT/s, 3TB maxUp to 12 NVDIMM, 192 GB Max Up to 12 Intel® Optane™ DC persistent memory PMem, 6.14TB max (7.68TB max with PMem + LRDIMM)Supports registered ECC DDR4 DIMMs only |
| Storage controllers Internal Boot | Internal Controllers: PERC H330, H730P, H740P, HBA330, H750, HBA350i External Controllers: H840, HBA355e, 12 Gbps SAS HBASoftware RAID:S140Boot Optimized Storage Subsystem (BOSS):HWRAID 2 x M.2 SSDs 240GB, 480GB Internal Dual SD Module1 |
| Storage | Front drive bays: Up to 16 x 2.5” SAS/SATA (HDD/SSD) max 122.88TB or up to 8 x 3.5” SAS/SATA HDD max 128TB Optional DVD-ROM, DVD+RW |
| Power supplies | Titanium 750W, Platinum 495W, 750W,750W 240VDC,2 1100W,1100W 380VDC2 1600W, 2000W and 2400W, Gold 1100W -48VDC Hot plug power supplies with full redundancyUp to 6 hot plugs fans with full redundancy |
| Dimensions | Form factor: Rack (2U)Height: 86.8mm (3.4”) Width3 : 434.0mm (17.08”)Depth3 : 737.5mm (29.03”) Weight: 28.6kg (63lbs.) |
| Embedded management | iDRAC9, iDRAC Direct, iDRAC RESTful with Redfish, Quick Sync 2 wireless module (optional) |
| Bezel | Optional LCD Bezel or Security bezel |
| OpenManage™ Software | OpenManage Enterprise OpenManage Mobile OpenManage Power Manager |
| I/O & Ports | Network daughter card options 4 x 1GbE or 2 x 10GbE + 2 x 1GbE or 4 x 10GbE or 2 x 25GbE Front ports: 1 x Dedicated iDRAC Direct Micro-USB, 2 x USB 2.0, 1 x USB 3.0 (optional), 1 x VGA Rear ports: 1 x Dedicated iDRAC network port, 1 x Serial, 2 x USB 3.0, 1 x VGA Video card: 2 x VGARiser options with up to 8 PCIe Gen 3 slots, maximum of 4 x 16 slots |
|
