Product Details:
|
| Features: | Technical Specification | Processor: | Up To Two 3rd Generation Intel Xeon Scalable Processors, With Up To 40 Cores Per Processor |
|---|---|---|---|
| Memory: | 32 DDR4 DIMM Slots, Supports RDIMM 2 TB Max Or LRDIMM 8 TB Max, Speeds Up To 3200 MT/s • Up To 16 Intel Persistent Memory 200 Series | Storage Controllers: | Internal Controllers: PERC H745, HBA355I, S150, H345, H755, H755N |
| StS/SATA/NVMe (HDD/SSD) Max 368.84 TBorage: | Front Bays: • Up To 12 X 3.5-inch SAS/SATA (HDD/SSD) Max 192 TB • Up To 8 X 2.5-inch NVMe (SSD) Max 122.88 TB • Up To 16 X 2.5-inch SAS/SATA/NVMe (HDD/SSD) Max 245.76 TB • Up To 24 X 2.5-inch SA | Power Supplies: | • 800 W Platinum AC/240 Mixed Mode • 1100 W Titanium AC/240 Mixed Mode • 1400 W Platinum AC/240 Mixed Mode • 2400 W Platinum AC/240 Mixed Mode |
| Highlight: | Enterprise Dell Emc Poweredge R740xd2,2U Dell Emc Poweredge R740xd2,2U Poweredge R740xd2 Server |
||
Media streaming and SDS DELL EMC PowerEdge R740xd2 Enterprise 2U rack server Network Server Nas Storage

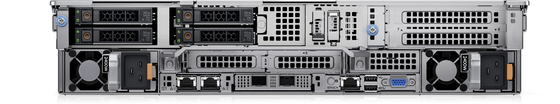

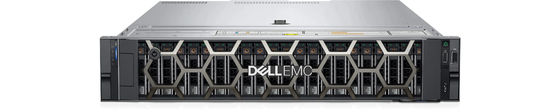

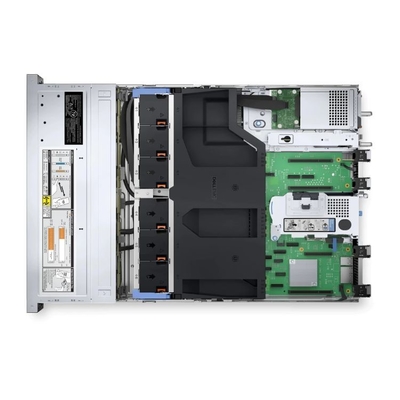

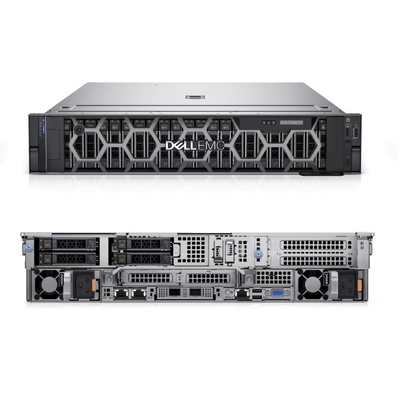

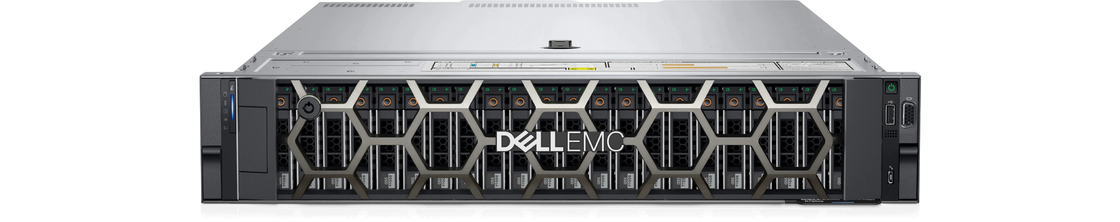

Dell EMC PowerEdge R740xd2
Introduction
The Dell EMC PowerEdge R740xd2 helps you plan for future growth with large internal storage and cost-efficient drive capacities. Deliver two socket compute performance with flash and fast networking options to meet streaming demands. Simplify management of large data sets with automated administration and front-serviceable drives. The R740xd2 lets you keep your data safely on-premise with built-in security, even as you scale capacity.
The R740xd2 is Dell EMC's latest 2-socket, 2U rack server designed to run data-heavy workloads using scalable memory, I/O, and network options. The systems feature the 2nd Generation Intel® Xeon® Processor Scalable Family, up to 16 DIMMs, PCIe 3.0 enabled expansion slots, and a choice of OCP technologies. New technologies The following table shows new technologies incorporated in the PowerEdge R740xd2:
New technologies
| Technology | Detailed Description |
| 2nd Generation Intel® Xeon® Processor Scalable Family |
The 2nd Generation Intel® Xeon® processor scalable family has advanced features that deliver exceptional performance and value. See the processors section for more information . |
| Intel® C621 Chipset Series | The R740xd2 incorporates the Intel® Platform Controller Hub (PCH) chip. See the chipset section for more information. |
| 2666 MT/s and 2933 MT/s DDR4 Memory |
The Intel® Xeon® processor scalable family supports memories 2666 MT/s and 2933 MT/s (since April 2021). The R740xd2 supports two DIMMs per channel at 2666 MT/s and 2933 MT/s (since April 2021) with these processors. See the memory section for more information. |
| iDRAC9 w/ Lifecycle Controller | The embedded systems management solution for Dell EMC Servers features hardware and firmware inventory and alerting, in- depth memory alerting, faster performance, a dedicated gigabit port and many more features. |
Product Specifications
| Features | Specifications |
| Form Factor | 2U |
| Scalability (Sockets) | 2 sockets |
| Processors | 2nd Generation Intel® Xeon® Scalable processor server CPU |
| Processor TDP | Up to 140 W |
| Processor Cores | Up to 22 |
| Chipset | Intel® C621 chipset |
| VGA | Embedded in BMC (integrated VGA chip) |
| Memory technology | 8GB/16GB/32GB/64GB DDR4 |
| DIMMs per socket (total DIMMs) | 16 DIMM slots |
| DIMM Type | RDIMM |
| Memory Bandwidth | 2666 MT/s and 2933 MT/s (since April 2021) |
| PCIe slots | Up to 5 x Gen3 slots (3 x16 + 2 x4) |
| PCIe Gen | Gen 3 |
| Power supplies | ● Platinum: 750 W or 1100 W ● HVDC: 750 W or 1100 W hot plug power supplies with full redundancy option ● Mixed mode: 750 W AC and DC ● 6 fans with N +1 redundancy |
| USB Front | 2 x USB 2.0 : Micro USB iDRAC x1 + 1 x USB 2.0 |
| USB Rear | 2 x USB 3.0 |
| USB Internal | 1 x USB 3.0 |
| Serial Port | Yes |
| Video | Yes, 1x standard VGA (Rear) |
| SATA ports (from PCH) | Up to 12 SATA ports. 2 rear drives onboard SATA Support |
| Disk Drives | ● 3.5" hard disk drives/2.5" SSD drives with 3.5" carrier, hot pluggable. ● Front drive bays: Up to 24 x 3.5” SAS/ SATA (HDD) max 384 TB, or up 16 x 3.5” SAS/SATA (HDD) plus up to 8 x 2.5” SAS (SSD) max 317.44 TB ● Rear drive bays: Up to 2 x 3.5” SAS SATA (HDD) max 32 TB or up to 2 x 2.5” SAS (SSD) drives max 15.36TB. |
| Storage controllers | ● Internal Controllers: PERC H330, H730P, H740P ● Software RAID (SWRAID): S140 ● Boot Optimized Storage Subsystem: HWRAID 2 x M.2 SSDs, 240 GB or 480 GB ● 12 Gbps SAS HBAs (non-RAID): Internal - HBA330 ● PERC HBA355e (External) |
| Optical Drive | Optional external USB DVD-ROM |
| Embedded Management (Remote) | iDRAC9 with Lifecycle Controller |
| Systems Management | OpenManage, iDRAC |
