Product Details:
|
| Features: | Technical Specification | Processor: | Up To Four 2nd Generation Intel® Xeon® Scalable Processors, Up To 28 Cores Each |
|---|---|---|---|
| Memoryegistered ECC DDR4 DIMMs Only: | 48 DDR4 DIMM Slots, Supports RDIMM /LRDIMM, Up To 2933MT/s, 6TB Max Up To 12 NVDIMM, 384GB Max – Up To 24 Intel® Optane™ DC Persistent Memory PMem, Max 12.28TB, (15.36TB Max With PMem And LRDIMM) Supports R | Storage Controllers: | Internal Controllers: PERC H330, H730P, H740P |
| Drive Bays: | Front Drive Bays: Up To 8x 2.5” SAS SATA (HDD/SSD) Max 61.44TB, Or Up 24 X 2.5” SAS/SATA (HDD/SSD) Max 184.32TB, Or Up To 32 SAS/SATA (HDD/SSD) With Up To 4 NVME PCIe SSD Max 245.76TB | Power Supplies: | Gold 1100W -48VDC Platinum: 1100W, 1100W 240VDC2 1600W, 2000W, 2400W |
| Highlight: | EMC R940xa Dell Poweredge Server,4U Dell Poweredge Server,Four Way Poweredge R940xa Rack Server |
||

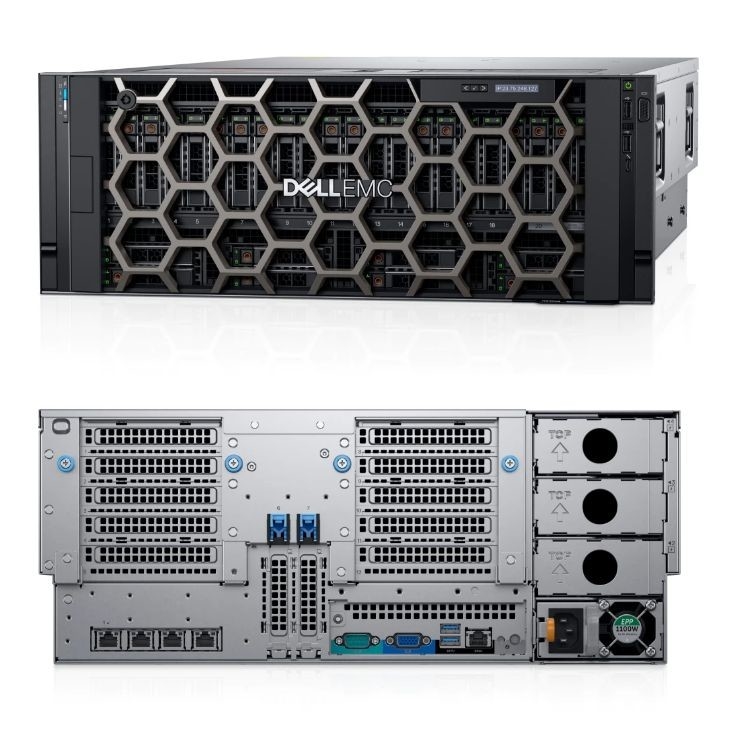

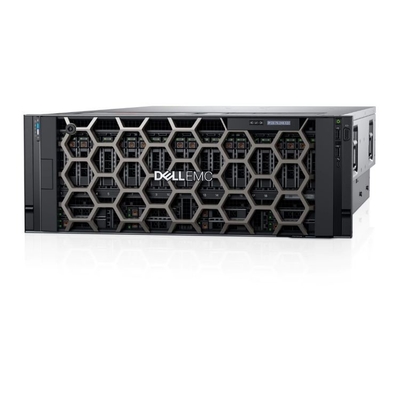

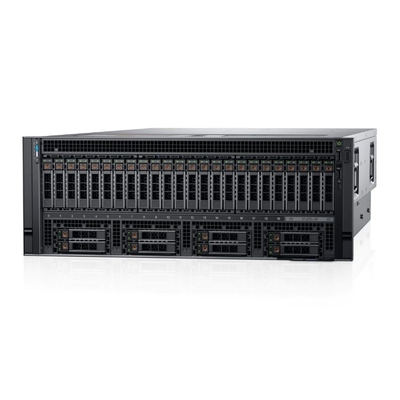

POWEREDGE R940xa Extreme acceleration for Artificial Intelligence and Machine Learning Rapidly transform data insights into business outcomes with the PowerEdge R940xa. The R940xa accelerates applications with powerful four-socket performance in a scalable 4U design.
Accelerate application performance The PowerEdge R940xa drives GPU database acceleration to deliver real-time decisions for compute-intensive applications. By combining four CPUs with four GPUs, the R940xa delivers consistent high performance for demanding applications. The R940xa allows you to dynamically scale capacity and performance as your business-critical workloads evolve including: • Maximizing performance with 2nd Generation Intel® Xeon® Scalable processors, up to 112 cores. • Choosing up to 4 double-width GPUs or up to 4 double-width or 8 single-width FPGAs for application acceleration. • Supporting large data sets with up to 48 DIMMs (24 of which can be PMems) and up to 15.36TB of memory. • Scaling on-premise capacity with up to 32 x. 2.5” HDDs/SSDs and up to 4 direct-attached NVMe drives. • Expanding quickly with up to 12 PCIe slots for external device connections. Streamline operations with Dell EMC OpenManage The Dell EMC OpenManage™ portfolio helps simplify IT operations across your data center, delivering intelligent, automated management of routine tasks. Combined with unique agent-free management capabilities, the R940xa is simply managed, freeing up time for high profile projects. • Utilize a variety of OpenManage integrations and connections to take advantage of your existing IT management platform. • Take advantage of QuickSync 2 capabilities and gain access to your servers easily through your phone or tablet. Deliver comprehensive data center protection with built-in security Every PowerEdge server is made with a cyber-resilient architecture, delivering security into all parts of a server’s life cycle. The R940xa uses these new security features so you can reliably and securely deliver the right data to where your customers are, no matter where they are. Dell EMC considers each part of system security, from design to end of life, to ensure trust and deliver worry-free systems. Rely on a secure component supply chain to ensure protection from factory to the data center. • Maintain data safety with cryptographically signed firmware packages and Secure Boot. • Protect your server from malicious malware with iDRAC9 Server Lockdown mode (requires Enterprise or Datacenter license) • Wipe all data from storage media including hard drives, SSDs and system memory quickly and securely with System
Erase.
| DELL R940XA | |
| Processor | Up to four 2nd Generation Intel® Xeon® Scalable processors, up to 28 cores each |
| Memory | 48 DDR4 DIMM slots, Supports RDIMM /LRDIMM, up to 2933MT/s, 6TB max Up to 12 NVDIMM, 384GB Max – Up to 24 Intel® Optane™ DC persistent memory PMem, max 12.28TB, (15.36TB max with PMem and LRDIMM) Supports registered ECC DDR4 DIMMs only |
| Storage controllers Internal Boot | Internal Controllers: PERC H330, H730P, H740P, HBA330 External Controllers: H840, 12 Gbps SAS HBA Software RAID:S140 Boot Optimized Storage Subsystem (BOSS): HWRAID 2 x M.2 SSDs 240GB, 480GB Internal Dual SD Module1 |
| Storage | Front drive bays: Up to 8 x 2.5” SAS/SATA (HDD/SSD) max 122.88TB or up to 8 x 2.5” SAS/SATA HDD max Optional DVD-ROM, DVD+RW |
| Drive bays | Front drive bays: Up to 8x 2.5” SAS SATA (HDD/SSD) max 61.44TB, or up 24 x 2.5” SAS/SATA (HDD/SSD) max 184.32TB, or up to 32 SAS/SATA (HDD/SSD) with up to 4 NVME PCIe SSD max 245.76TB |
| Power supplies | Platinum: 1100W, 1100W 240VDC2 1600W, 2000W, 2400W |
| Dimensions |
Height: 174.3 mm (6.87”) Width: 441.16 mm (17.37”) Depth: 835.9mm (32.9”) Weight: 56.0kg (123.5lbs.) *Dimensions do not include bezel |
| Embedded management | iDRAC9, iDRAC Direct, iDRAC RESTful with Redfish, Quick Sync 2 wireless module (optional) |
| Bezel | Optional LCD Bezel or Security bezel |
| OpenManage™ Software | OpenManage Enterprise OpenManage Mobile OpenManage Power Manager |

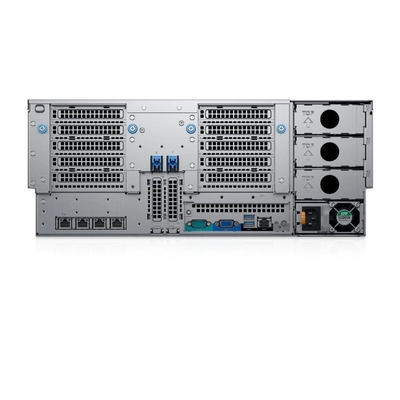

| I/O & Ports | Rear ports: 1 x Dedicated iDRAC port, 1 x Serial, 2 x USB 3.0, 1 x VGA Internal port: 1 x USB 3.0 Video card: 2 x VGA PCIe: Up to 12 x Gen3 slots, (6x16 slots or 2x16 + 10x8 slots) |
