Product Details:
|
| Features: | Technical Specification | Processor: | Up To Two 2nd Generation Intel® Xeon® Scalable Processors, Up To 28 Cores Per Processor |
|---|---|---|---|
| Memory: | 16 DDR4 DIMM Slots, Supports RDIMM /LRDIMM, Speeds Up To 3200MT/s, 3TB | Storage Controllers: | Internal Controllers: PERC H330, H730P, H740P, HBA330 |
| Storage: | Front Drive Bays: Up To 12 X 3.5” SAS/SATA HDD Max 192TB Rear Drive Bays: Up To 2 X 3.5 SAS/SATA HDD Max 32TB | Power Supplies: | Titanium 750W, Platinum 495W, 750W, 750W 240VDC,2 1100W, 1100W 380VDC2 1600W, 2000W And 2400W, Gold 1100W -48VDC |
| Highlight: | R540 Dell Poweredge Server,495W Dell Poweredge Server,Expandable Dell Poweredge R540 Rack Server |
||
The PowerEdge R540 delivers the ideal balance of resources and affordability to adapt to a variety of application demandS
Power your applications with the versatility of the R540 The PowerEdge R540 delivers the versatility and flexibility to power a variety of applications. With a balanced set of resources, expandability and affordability the R540 adapts to the demands of the modern data center with the ideal value optimized design. Automatically optimize performance with one button application tuning and scale for future demands with up to 14 3.5” drives. • Scale compute resources with 2nd Generation Intel® Xeon® Scalable processors, and tailor performance based on your unique workload requirements. • Automatically optimize application performance with one-button tuning. • Flexible storage with up to 14 3.5” drives. • Free up storage with boot optimized M.2 SSDs. Intuitive systems management with intelligent automation Dell EMC PowerEdge servers are optimized for top efficiency and uptime, with intelligent automation that decreases time spent on the most common IT tasks. Combined with the agent-free management of the embedded iDRAC with Lifecycle Controller, the R540 is easily and effectively managed. • Simplify data center management with OpenManage Essentials to intelligently automate the entire server life cycle management process – from bare-metal deployment, through configuration and updates, to ongoing maintenance. • Use the OpenManage Mobile app to take advantage of new wireless Quick Sync 2 capabilities to efficiently perform management procedures at-the-server, across multiple servers within the data center, or monitor server status and respond to alerts, anytime, anywhere. Rely on PowerEdge with built-in security Every PowerEdge server is made with a cyber-resilient architecture, building security into all parts of a server’s life cycle. The R540 uses these new security features so you can reliably and securely deliver the right data to where your customers are, no matter where they are. Dell EMC considers each part of system security, from design to end of life, to ensure trust and deliver worry-free, secure systems. • Rely on a secure supply chain that protects servers from factory to the data center. • Maintain data safety with cryptographically signed firmware packages and Secure Boot. • Prevent unauthorized or malicious change with Server Lockdown. • Wipe all data from storage media including hard drives, SSDs and system memory quickly and securely with System Erase.
| Processor | Front drive bays: Up to 12 x 3.5” SAS/SATA HDD max 192TB Rear drive bays: Up to 2 x 3.5 SAS/SATA HDD max 32TB Optional DVD-ROM, DVD+RW | |
| Drive bays | Front drive bays: Up to 10 x 2.5” SAS/SATA (HDD/SSD) with up to 8 NVMe SSD max 76.8TB or up to 10 NVMe drives max 64TB, or up to 4 x 3.5” SAS/SATA HDD max 64TB Rear drive bays: Up to 2 x 2.5” SAS/SATA (HDD/SSD), NVMe SSD max 15.36TB Optional DVD-ROM, DVD+RW |
|
| Power supplies | 495W Platinum 750W Platinum 750W 240HVDC Platinum* 1100W 48VDC 1100W Platinum 1100W 380HVDC Platinum* 1600W Platinum 750W Titanium Hot plug power supplies with full redundancy option Up to 8 hot plugs fans with full redundancy *Available in China and Japan only |
|
| Dimensions | Form factor: Rack (1U)Height: 42.8mm (1.69”) Width*: 482.0mm (18.98”) Depth*: 808.5mm (31.8”) Weight: 21.9kg (48.3 lbs.) *Dimensions include bezel. |
|
| Embedded management | iDRAC9, iDRAC Direct, iDRAC RESTful with Redfish, Quick Sync 2 wireless module (optional) | |
| Bezel | Optional LCD Bezel or Security bezel | |
| OpenManage™ Software | OpenManage Enterprise OpenManage Mobile OpenManage Power Manager | |

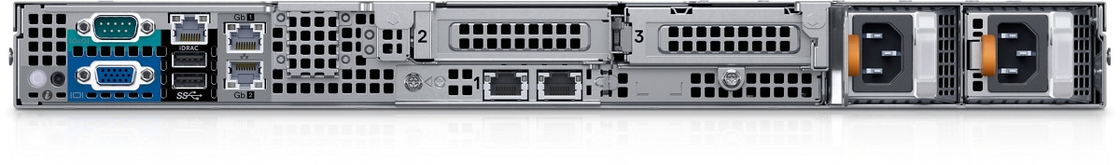

| I/O & Ports | Network Options: 4 x 1GbE 2 x 10GbE + 2 x 1GbE 4 x 10GbE 2 x 25GbE Front Ports: 1 x Dedicated iDRAC direct USB 1 x USB 2.0 1 x USB 3.0 (optional) 1 x Video Rear Ports: 1 x Dedicated iDRAC network port 1 x Serial 2 x USB 3.0 1 x Video PCIe: 3 x Gen3 slots all x16 Video Card: 2 x VGA |
