Product Details:
|
| Features: | Technical Specification | Processor: | Up To Two 2nd Generation Intel® Xeon® Scalable Processors, Up To 28 Cores Per Processor |
|---|---|---|---|
| Memory: | 24 DDR4 DIMM Slots, Supports RDIMM /LRDIMM, Speeds Up To 3200MT/s, 3TB | Storage Controllers: | Internal Controllers: PERC H330, H730P, H740P, HBA330 |
| Storage: | Front Drive Bays: Up To 8x 2.5” SAS/SATA (HDD/SSD) Max 122.88TB Or Up To 8 X 3.5” SAS/SATA HDD Max 128TB Optional DVD-ROM, DVD+RW | Power Supplies: | Titanium 750W, Platinum 495W, 750W, 750W 240VDC,2 1100W, 1100W 380VDC2 1600W, 2000W And 2400W, Gold 1100W -48VDC |

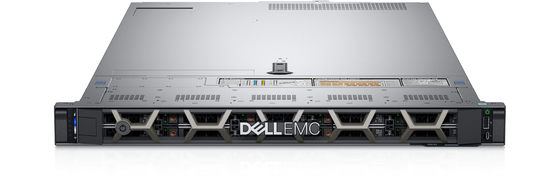

| Highlight: | 28 Cores Poweredge R640 Rack Server,1u Poweredge R640 Rack Server,Dell Emc Poweredge R640 1u Rack Server |
||
R640 Spec Sheet
© 2019 Dell Inc. or its subsidiaries.
Expand and optimize application performance
The scalable business architecture of the R740 can scale up to three 300W or six 150W GPUs, or up to three
double-width or four single-width FPGAs. With up to 16 2.5” drives or 8 3.5” drives the R640 provides the versatility
to adapt to virtually any application and provides the perfect platform for VDI deployments.
• Scale your VDI deployments with 3 double-width GPUs, supporting up to 50% more users when compared to R730.
• Free up storage space using internal M.2 SSDs optimized for boot.
• Scale compute resources with 2nd Generation Intel® Xeon® Scalable processors and tailor performance based
on your unique workload requirements.
Automate systems management with OpenManage
The Dell EMC OpenManage™ portfolio helps deliver peak efficiency for PowerEdge servers, delivering intelligent,
automated management of routine tasks. Combined with unique agent-free management capabilities, the R740 is simply
managed, freeing up time for high profile projects.
• Simplify management with the New OpenManage Enterprise™ console, with customized reporting
and automatic discovery.
• Take advantage of QuickSync 2 capabilities and gain access to your servers easily through your phone or tablet.
Rely on PowerEdge with built-in security
Every PowerEdge server is designed as part of a cyber resilient architecture, integrating security into the full server
lifecycle. The R640 leverages new security features built-into every new PowerEdge server strengthening protection
so you can reliably and securely deliver accurate data to your customers no matter where they are. By considering
each aspect of system security, from design to retirement, Dell EMC ensures trust and delivers a worry-free,
secure infrastructure without compromise.
• Rely on a secure component supply chain to ensure protection from factory
to the data center.
• Maintain data safety with cryptographically signed firmware packages
and Secure Boot.
• Protect your server from malicious malware with iDRAC9 Server Lockdown mode
(requires Enterprise or Datacenter license)
• Wipe all data from storage media including hard drives, SSDs and system memory
quickly and securely with System Erase.
| DELL R640 | ||
| Processor | Up to two 2nd Generation Intel Xeon Scalable processors, up to 28 cores per processor | |
| Memory | 24 DDR4 DIMM slots, Supports RDIMM /LRDIMM, speeds up to 2933MT/s, 3TB maxUp to 12 NVDIMM, 192 GB Max Up to 12 Intel® Optane™ DC persistent memory PMem, 6.14TB max (7.68TB max with PMem + LRDIMM)Supports registered ECC DDR4 DIMMs only | |
| Storage controllers Internal Boot | Internal Controllers: PERC H330, H730P, H740P, HBA330, H750, HBA350i External Controllers: H840, HBA355e, 12 Gbps SAS HBASoftware RAID:S140Boot Optimized Storage Subsystem (BOSS):HWRAID 2 x M.2 SSDs 240GB, 480GB Internal Dual SD Module1 | |
| Storage | Front drive bays: Up to 16 x 2.5” SAS/SATA (HDD/SSD) max 122.88TB or up to 8 x 3.5” SAS/SATA HDD max 128TB Optional DVD-ROM, DVD+RW | |
| Drive bays | Front drive bays: Up to 10 x 2.5” SAS/SATA (HDD/SSD) with up to 8 NVMe SSD max 76.8TB or up to 10 NVMe drives max 64TB, or up to 4 x 3.5” SAS/SATA HDD max 64TB Rear drive bays: Up to 2 x 2.5” SAS/SATA (HDD/SSD), NVMe SSD max 15.36TB Optional DVD-ROM, DVD+RW |
|
| Power supplies | 495W Platinum 750W Platinum 750W 240HVDC Platinum* 1100W 48VDC 1100W Platinum 1100W 380HVDC Platinum* 1600W Platinum 750W Titanium Hot plug power supplies with full redundancy option Up to 8 hot plugs fans with full redundancy *Available in China and Japan only |
|
| Dimensions | Form factor: Rack (1U)Height: 42.8mm (1.69”) Width*: 482.0mm (18.98”) Depth*: 808.5mm (31.8”) Weight: 21.9kg (48.3 lbs.) *Dimensions include bezel. |
|
| Embedded management | iDRAC9, iDRAC Direct, iDRAC RESTful with Redfish, Quick Sync 2 wireless module (optional) | |
| Bezel | Optional LCD Bezel or Security bezel | |
| OpenManage™ Software | OpenManage Enterprise OpenManage Mobile OpenManage Power Manager | |
| I/O & Ports | Network Options: 4 x 1GbE 2 x 10GbE + 2 x 1GbE 4 x 10GbE 2 x 25GbE Front Ports: 1 x Dedicated iDRAC direct USB 1 x USB 2.0 1 x USB 3.0 (optional) 1 x Video Rear Ports: 1 x Dedicated iDRAC network port 1 x Serial 2 x USB 3.0 1 x Video PCIe: 3 x Gen3 slots all x16 Video Card: 2 x VGA |
