Product Details:
|
| Processor: | Up To Two 3rd Generation Intel® Xeon® Scalable Processors With Up To 24 Cores Per Processor | Memory Module Slots: | 16 DDR4 DIMM Slots |
|---|---|---|---|
| Front Bays: | Up To 8 X 3.5-inch SAS/SATA (HDD/SSD) Max 16 TB | Internal Controllers: | PERC H345, PERC H745, PERC H755, HBA355i |
| External Controllers: | PERC H840, HBA355e | Slots: | 3 X Gen 4 PCIe Slots, 1 X Gen3 PCIe Slot |
| Highlight: | Poweredge Server H745 800W Power,R550 Poweredge Server H745 800W Power,Poweredge Server H745 800W |
||
New DELLPowerEdge R550 server in 2022 h745 800W power 2U server is applicable to R550 dedicated to small enterprises
Dell EMC PowerEdge R550
2U, versatile, value-optimized, and virtualization-ready
The Dell EMC PowerEdge R550, with 3rd generation Intel® Xeon® Scalable processors, offers added flexibility for organizations seeking exceptional value.
Innovate at scale with challenging and emerging workloads
The new Dell EMC PowerEdge R550 is a 2U, dual-socket server that offers the best value for organizations seeking the latest processing, I/O, and storage capabilities. It lets you:
• Add additional power and cores: It offers up to two 3rd generation Intel Xeon Scalable processors with up to 24 cores per socket
• Choose faster memory: Supports up to 16 DDR4 RDIMMS at 2933 MT/sec
• Improve throughput and reduce latency: With up to 3 PCIe Gen4 slots and 1 PCIe Gen3
• Include flexible storage: Supports up to 16x 2.5” SAS/SATA hard drives or SSDs or up to 8x 3.5” SAS/SATA hard drives or SSDs
• Support light duty virtualization and small IT infrastructure workloads
Increase efficiency and accelerate operations with autonomous compute infrastructure
The Dell EMC OpenManage systems management portfolio tames the complexity of managing and securing IT infrastructure. Using Dell Technologies’ intuitive end-to-end tools, IT can deliver a secure, integrated experience by reducing process and information silos in order to focus on growing the business. The Dell EMC OpenManage portfolio is the key to your innovation engine, unlocking the tools and automation that help you scale, manage, and protect your technology environment.
• Built-in telemetry streaming, thermal management, and RESTful API with Redfish offer streamlined visibility and control for better server management
• Intelligent automation lets you enable cooperation between human actions and system capabilities for added productivity
• Integrated change management capabilities for update planning and seamless, zero-touch configuration and implementation
• Full-stack management integration with Microsoft, VMware, ServiceNow, Ansible and many other tools for environments including on-premise, cloud, and edge
Built-in protection through a complete portfolio of solutions
From the silicon and supply chain all the way to asset retirement, know that your servers are safe and secure with innovative Dell EMC and Intel technologies. We give you the confidence of cyber resilience with enterprise class security that minimizes risk for any organization, from small business to hyperscale.
• Start strong with platform security features, even before the server is built, including Secured Component Verification and Silicon Root of Trust
• Stay strong with continuous innovations that bolster cyber resilience, like OpenManage Secure Enterprise Key Manager and Automatic Certificate Enrollment
• Outmaneuver threats with intelligence, automation, and recovery tools that include iDRAC9 Telemetry, BIOS live scanning, and Rapid OS recovery
PowerEdge R550
Power your innovation with the Dell
EMC PowerEdge R550, the 2U 2-socket
server that’s built for versatility and
optimized for exceptional value.
• Small IT Infrastructure
• Light VM (virtual machine density)
• Small Business Specific
| Feature | PowerEdge R550 | PowerEdge R540 |
| Processor | Maximum two 3rd Generation Intel® Xeon® Scalable processors with maximum 24 cores per processor. |
Maximum two 2nd Generation Intel® Xeon® Scalable processors with maximum 20 cores per processor. |
| Processor Interconnect |
Intel Ultra Path Interconnect (UPI) | Intel Ultra Path Interconnect (UPI) |
| Memory | 16 DDR4 DIMM slots, Supports RDIMM 1 TB, Up to 2933 MT/s |
16 DDR4 DIMM slots, Supports registered ECC DDR4 DIMMs only, Up to 2666 MT/s |
| Storage Drives | Front bays: ● Up to 16 x 2.5-inch SAS/SATA (HDD/SSD) ● Up to 8 x 2.5-inch SAS/SATA(HDD/SSD) ● Up to 8 x 3.5-inch SAS/SATA (HDD/SSD) |
Front bays: ● Up to 12 x 3.5-inch SAS/SATA HDD max 168 TB ● DVD-ROM, DVD+RW (optional) Rear bays: ● Up to 2 x 3.5-inch SAS/SATA HDD max 28 TB |
| Storage Controllers | Internal Controllers: PERC H345, PERC H745, PERC H755, HBA355i External Controllers: PERC H840, HBA355e Internal Boot: Internal Dual SD Module, Boot Optimized Storage Subsystem (BOSS-S2): HWRAID 2 x M.2 SSDs, USB Software RAID: S150 |
Internal Controllers: PERC H330, H730P, H740P, HBA330 External Controllers: H840, 12 Gbps SAS HBA Software RAID: S140 Internal Boot: Boot Optimized Storage Subsystem (BOSS): HWRAID 2 x M.2 SSDs 240GB, 480 GB, Internal Dual SD Module |
| PCIe Slots | 3 x Gen 4 PCIe slots 1 x Gen 3 PCIe slot |
Non-rear storage configuration ● 1 x full height/full length ● 1 x half height/half length (2U Right riser) slots ● 3 x half height/half length slots Rear storage config ● 1 x half height/half length (1U left riser) ● 1 x half height/half length or 1full height/half length (1U right riser) |
| Embedded NIC (LOM) |
2 x 1GbE LOM | 2 x 1GbE LOM |
| Networking options (OCP 3.0) |
OCP 3.0 | 2 x 1GbE LOM+ (optional) LOM Riser 2 x 1GbE, or 2 x 10GE SFP+, or 2 x 10GE BaseT |
| USB Ports | Front Ports ● 1 x iDRAC Direct (Micro-AB USB) port ● 1 x USB 2.0 ● 1 x VGA Rear Ports |
Front Ports ● 1 x Dedicated iDRAC direct USB ● 1 x USB 2.0 ● 1 x Video Rear Ports |
| ● 1 x USB 2.0 ● 1 x Serial (optional) ● 1 x USB 3.0 ● 2 x Ethernet ● 1 x VGA Internal Ports ● 1 x USB 3.0 (optional) |
● 1 x Dedicated iDRAC network port ● 1 x Serial ● 2 x USB 3.0 ● 1 x Video |
|
| Rack Height | 2U | 2U |
| Power Supplies | ● 1100 W DC/-48–(-60) V ● 800 W Platinum AC/240 HVDC ● 600 W Platinum AC/240 HVDC |
● 495 W Platinum ● 750 W Platinum ● 750 W 240HVDC Platinum ● 1100 W Platinum ● 1100 W 380 V HDC Platinum ● Hot plug power supplies with full redundancy option |
| System Management |
● iDRAC9 ● iDRAC Direct ● iDRAC Service Module ● Quick Sync 2 wireless module |
● iDRAC9 ● iDRAC RESTful API with Redfish ● iDRAC Direct ● Quick Sync 2 BLE/wireless module |
| Availability | ● Hot-plug Drives ● Hot-plug Redundant Power Supplies ● Internal Dual SD Module (IDSDM) |
● Hot-plug Drives ● Hot-plug Redundant Power Supplies ● Internal Dual SD Module (IDSDM) |
Chassis views and features

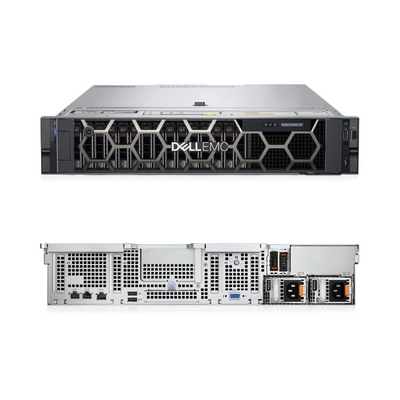

Front view of the system

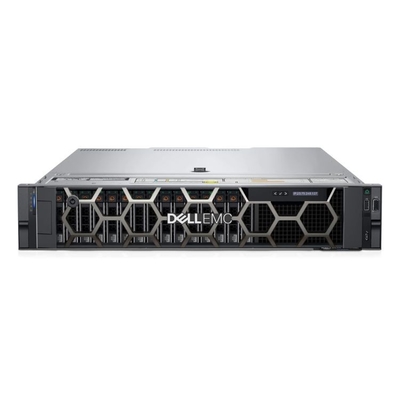

Figure 1. Front view of 8 x 3.5-inch drive system
Figure 2. Front view of 8 x 2.5-inch SAS/SATA drive system
Figure 3. Front view of 16 x 2.5-inch SAS/SATA drive system
Rear view of the system

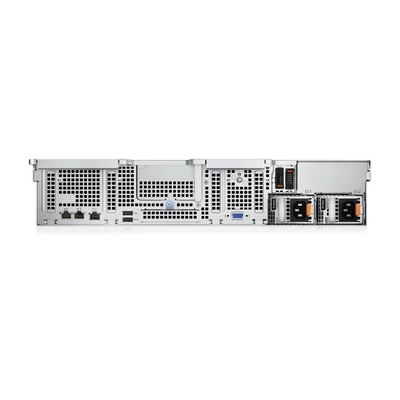

Figure 4. Rear view of the system
Inside the system

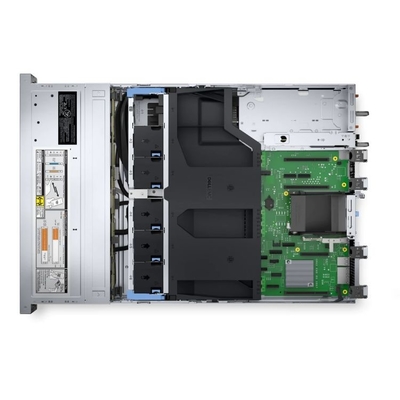

Figure 5. Inside the system 8 x 2.5-inch
Power your innovation with the Dell
EMC PowerEdge R550, the 2U 2-socket
server that’s built for versatility and
optimized for exceptional value.
• Small IT Infrastructure
• Light VM (virtual machine density)
• Small Business Specifi
