Product Details:
|
| Processor: | Up To Two 3rd Generation Intel® Xeon® Scalable Processors, With Up To 24 Cores Per Processor | Memory Module Slots: | 16 DDR4 DIMM Slots |
|---|---|---|---|
| Front Bays: | Up To 4 X 3.5-inch SAS/SATA (HDD/SSD) Max 16 TB | Internal Controllers: | PERC H345, PERC H355, PERC H745, PERC H755, HBA355i |
| External Controllers: | PERC H840, HBA355e | Chipset: | Intel® C620A Chipset |
| Highlight: | 16GB DDR4 Dell 1U Rackmount Server,Dell EMC PowerEdge R450,R450 Dell 1U Rackmount Server |
||
Small IT Infrastructure, light VM small business specific DELL EMC PowerEdge R450 server computer New rack server
Dell EMC PowerEdge R450
1U, value and density-focused, built for general purpose IT
The Dell EMC PowerEdge R450, with 3rd generation Intel® Xeon® Scalable processors, offers exceptional value and density with excellent performance.
Innovate at scale with challenging and emerging workloads
The Dell EMC PowerEdge R450 is a 1U, two-socket entry-level server that offers the best value for organizations seeking updated processing, I/O, and storage capabilities in a dense form factor. It lets you:
• Add additional power: Adds additional power with up to two 3rd generation Intel Xeon Scalable processors with up to 24 cores per socket
• Built with faster memory: Supports up to 16 DDR4 RDIMMS at 2933 MT/sec
• Improve throughput, reduce latency with up to 2 PCIe Gen4 slots
• Include flexible local storage: Offers up to 8x 2.5-inches HDDs or SSDs; or up to 4x 3.5-inches HDDs or SSDs
• Support distinctive needs: Perfect for smaller infrastructures and light virtualization demands
| Feature | PowerEdge R450 | PowerEdge R440 |
| Processor | Up to two 3rd Generation Intel Xeon Scalable processors with up to 24 cores per processor |
2nd Generation Intel® Xeon® Scalable Processor Family |
| Processor Interconnect | Intel Ultra Path Interconnect (Intel UPIx3) |
Intel Ultra Path Interconnect (Intel UPI) |
| Memory | 16x RDIMM/No NVDIMM | 16x DDR4 RDIMM, LRDIMM |
| Storage Drives | Up to 4 x 3.5-inch SAS/SATA (HDD/ SSD) max 64 TB Up to 8 x 2.5-inch SAS/SATA (HDD/ SSD) max 61.44 TB |
Up to 10 x 2.5" SAS/SATA (HDD/SSD) with up to 4 NVMe SSD max 76.8 TB or Up to 4 x 3.5 SAS/SATA HDD max 64 TB |
| Storage Controllers | Internal controllers: PERC H345, PERC H745, PERC H755, HBA355i, S150 Internal Boot: Internal Dual SD Module or Boot Optimized Storage Subsystem (BOSS-S1): HWRAID 2 x M.2 SSDs or USB External PERC (RAID): PERC H840, HBA355e |
Internal Controllers: PERC H330, H730P, H740P, HBA330 External Controllers: H840, 12 Gbps SAS HBA Software RAID:S140 Boot Optimized Storage Subsystem (BOSS):HWRAID 2 x M.2 SSDs 240GB, 480GB Internal Dual SD Module |
| PCIe Slots | 2 x PCIe Gen4 slots | 2 x PCIe Gen3 (x16/x16) |
| Embedded NIC (LOM) | 2 x 1GbE | 2 x 1GbE + OCP riser: LRC 2 x 1GbE or 2 x 10GbE |
| Networking options (OCP 3.0) | OCP3 x16 Gen4 | OCP2 x16 Gen3 |
| I/O Ports | Front ports: ● 1 x iDRAC Direct (Micro-AB USB) port ● 1 x USB 2.0 ● 1x VGA Rear ports: ● 1 x USB 2.0 ● 1 x Serial (optional) ● 1 x USB 3.0 ● 2 x Ethernet ● 1 x VGA ● 1 x Dedicated iDRAC network port Internal Port: 1 x USB 3.0 (optional) |
Front ports: ● 1 x iDRAC Direct (Micro-AB USB) port ● 1 x USB 2.0 ● 1x VGA Rear ports: ● 1 x USB 2.0 ● 1 x Serial (optional) ● 2 x USB 3.0 ● 1 x Dedicated iDRAC network port ● Up to 2 x PCIe Gen 3 slots all x16 |
| Rack Height | 1U | 1U |
| Power Supplies | 1100 W DC / -48–(-60) V 800 W Platinum AC/240 V HVDC 600 W Platinum AC/240 V HVDC |
Bronze 450W (Cabled PSU) Platinum 550W (Hot plug PSU with full redundancy option) |
| System Management | iDRAC9 iDRAC Direct iDRAC Service Module Quick Sync 2 wireless module |
iDRAC9 iDRAC9 Direct iDRAC REST API with Redfish Quick Sync 2 BLE/wireless module |
| Internal GPU | No GPU support | No GPU support |
| Availability | Hot-plug Drives Hot-plug Redundant Power Supplies IDSDM |
Hot-plug Drives Hot-plug Redundant Power Supplies IDSDM |

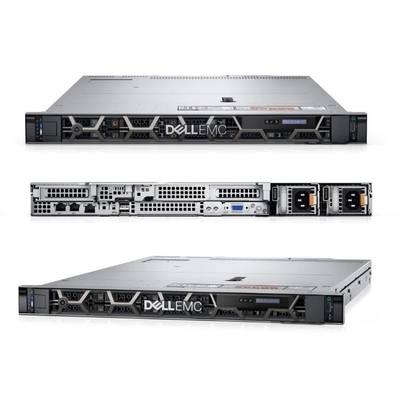

Chassis views and features
Front view of the system

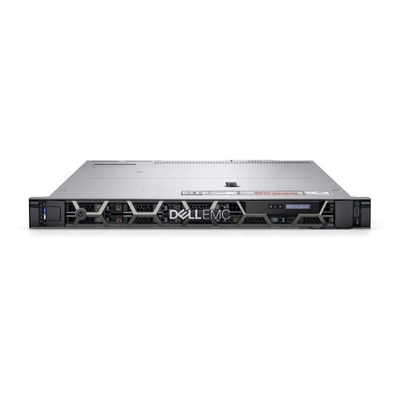

Figure 1. Front view of 4 x 3.5-inch drive system

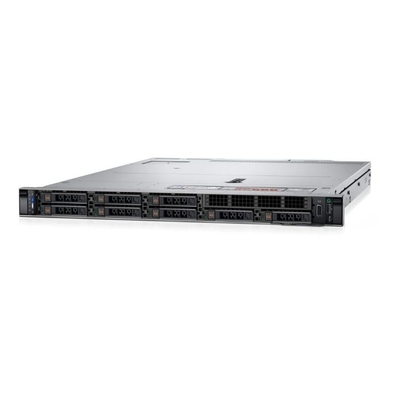

Figure 2. Front view of 8 x 2.5-inch drive system

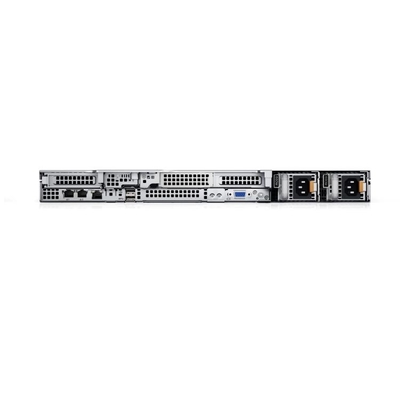

Rear view of the system
Figure 3. Rear view of the system

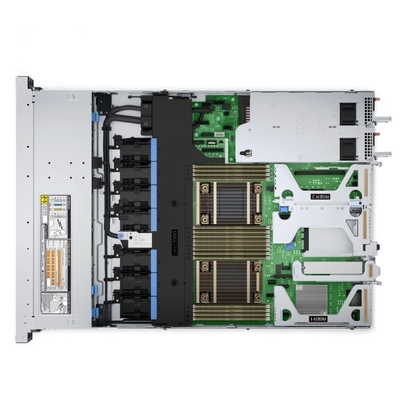

Inside the system
Figure 4. Inside the system
1. Fan
2. Cable retention latch
3. Intrusion switch
4. Power interposer board
5. Memory module slots
6. Riser 2c
7. PSU 1 and PSU 2
8. BOSS riser
9. OCP 10. Riser 1
11. Heat sink
12. System board
13. Air shroud
14. Drive backplane
15. Backplane cover
16. Information tag
