Product Details:
|
| Processor: | Intel® Xeon® E-2324G 3.1GHz, 8M Cache, 4C/4T, Turbo (65W), 3200 MT/s | Memory: | 32GB UDIMM, 3200MT/s, ECC |
|---|---|---|---|
| Operating System: | No Operating System | Hard Drive: | 4TB Hard Drive SATA 6Gbps 7.2K 512n 3.5in Hot-Plug |
| RAID: | C20, No RAID With Embedded SATA For SATA HDDs Or SATA SSDs (Mixed Drive Types Allowed) | Chassis: | 3.5" Chassis With Up To 4 Hot Plug Hard Drives And Software RAID |
| Highlight: | R350 1U Rackmount Computer,R350 1U Rackmount Computer 32GB UDIMM,1U Rackmount Computer 32GB UDIMM |
||
Dell EMC PowerEdge R350 offers streamlined productivity, highspeed memory and capacity,,1U
PowerEdge R350
The Dell EMC PowerEdge R350 addresses evolving compute demands with an easy to manage rack server designed for businesses looking for affordable enterprise features.
Your Innovation Engine for businesses of all sizes
The Dell EMC PowerEdge R350, powered by Intel® Xeon® E-2300 processors, delivers increased performance and is designed for productivity and data intensive applications. It supports 3200 MT/s DDR4 speeds and 32 GB DIMMs, up to 128 GB for memory intensive workloads. In addition, to address substantial throughput improvements, the PowerEdge R350 supports PCIe Gen 4 and offers enhanced efficiency to support increasing power and thermal requirements. This makes the PowerEdge R350 a powerful and versatile server for small to mid-sized businesses to enable a variety of workloads ranging from business-critical to cloud infrastructure. It is also widely used for point-ofsale transactions and enterprise level requirements for data analysis and virtualization.
Increase efficiency and accelerate operations with autonomous collaboration
The Dell EMC OpenManage systems management portfolio tames the complexity of managing and securing IT infrastructure. Using Dell Technologies’ intuitive end-to-end tools, IT can deliver a secure, integrated experience by reducing process and information silos in order to focus on growing the business. The Dell EMC OpenManage portfolio is the key to your innovation engine, unlocking the tools and automation that help you scale, manage, and protect your technology environment.
• Built-in telemetry streaming, thermal management, and RESTful API with Redfish offer streamlined visibility and control for better server management
• Intelligent automation lets you enable cooperation between human actions and system capabilities for added productivity
• Integrated change management capabilities for update planning and seamless, zero-touch configuration and implementation
• Full-stack management integration with Microsoft, VMware, ServiceNow, Ansible and many other tools
Protect your data assets and infrastructure with proactive resilience
The Dell EMC PowerEdge R350 server is designed with a cyber-resilient architecture, integrating security deeply into every phase in the lifecycle, from design to retirement.
• Operate your workloads on a secure platform anchored by cryptographically trusted booting and silicon root of trust
• Maintain server firmware safety with digitally signed firmware packages
• Prevent unauthorized configuration or firmware change with system lockdown
• Securely and quickly wipe all data from storage media including hard drives, SSDs and system memory with System Erase
| Feature | Technical Specifications | |
| Processor | One Intel Xeon E-2300 series processor with up to 8 cores or one Intel Pentium processor with up to 2 cores | |
| Memory | • Four DDR4 DIMM slots, supports UDIMM 128 GB max, speeds up to 3200 MT/s • Supports unregistered ECC DDR4 DIMMs only NOTE: For Pentium processor, maximum memory speed supported is 2666 MT/s. |
|
| Storage controllers | • Internal controllers (RAID): PERC H355, PERC H355f, PERC H345, PERC H345f, H755, H755f, HBA355i, HBA355f, S150 • Internal Boot: Internal Dual SD Module or USB or Boot Optimized Storage Subsystem (BOSS-S2): HWRAID 2 x M.2 SSDs • External HBAs (non-RAID): HBA355e |
|
| Drive Bays | Front bays: • Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 64 TB • Up to 8 x 2.5-inch SAS/SATA (HDD/SSD) max 128 TB |
|
| Power Supplies | • 600W Platinum 100-240 VAC or 240 VDC redundant, hot swap | |
| Cooling options | Air cooling | |
| Fans | Up to four fans with full redundancy | |
| Dimensions | • Height – 42.8 mm (1.69 inches) • Width – 482 mm (18.98 inches) • Depth – 585.3 mm (23.04 inches) without bezel 598.94 mm (23.58 inches) with bezel |
|
| Form Factor | 1U rack server | |
| Embedded Management | • iDRAC9 • iDRAC Direct • iDRAC RESTful API with Redfish • iDRAC Service Module |
|
| Bezel | Optional LCD bezel or security bezel | |
| OpenManage Software | • OpenManage Enterprise • OpenManage Power Manager plugin • OpenManage SupportAssist plugin • OpenManage Update Manager plugin |
|
| Mobility | OpenManage Mobile | |
| Integrations and Connections | OpenManage Integrations • BMC Truesight • Microsoft System Center • Red Hat Ansible Modules • VMware vCenter and vRealize Operations Manager |
OpenManage Connections • IBM Tivoli Netcool/OMNIbus • IBM Tivoli Network Manager IP Edition • Micro Focus Operations Manager • Nagios Core • Nagios XI |
| Security | • Cryptographically signed firmware • Secure Boot • Secure Erase • Silicon Root of Trust • System Lockdown (requires iDRAC9 Enterprise or Datacenter) • TPM 1.2/2.0 FIPS, CC-TCG certified, TCM 2.0 optional |
|
| Embedded NIC | 2 x 1 GbE LOM | |
| Network Options | NA | |
| Ports | Front Ports • 1 x iDRAC Direct (Micro-AB USB) port • 1 x USB 2.0 |
Rear Ports • 1 x USB 2.0 • 1 x iDRAC ethernet port • 1 x USB 3.0 • 1 x Serial port • 1 x VGA |
| Internal Ports • 1 x USB 3.0 (optional) |
||
| PCIe | 3 PCIe slots: • 1x8 Gen4 (x16 connector) low profile, half length • 1x8 Gen4 (x8 connector) low profile, half length • 1x4 Gen4 (x8 connector) for dedicated PERC only |
|
| Operating System and Hypervisors | • Canonical Ubuntu Server LTS • Citrix Hypervisor • Microsoft Windows Server with Hyper-V • Red Hat Enterprise Linux • SUSE Linux Enterprise Server For specifications and interoperability details, see Dell.com/OSsupport. |
|
Chassis views and features
Front view of the system

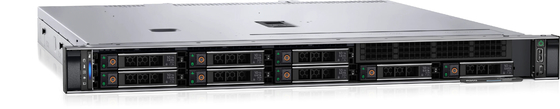

Figure 1. Front view of 8 x 2.5-inch drive system
| Item | Ports, panels, and slots |
| 1 | Left control panel |
| 2 | Drive |
| 3 | Right control panel |
| 4 | Information tag |

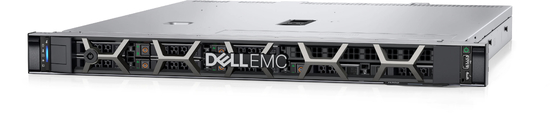

Figure 2. Front view of 4 x 3.5-inch drive system
| Item | Ports, panels, and slots |
| 1 | Left control panel |
| 2 | ODD |
| 3 | Drive |
| 4 | Right control panel |
| 5 | Information tag |
Rear view of the system
Figure 3. Rear view of the system 8 x 3.5-inch
| Item | Ports, panels, or slots |
| 1 | Serial connector |
| 2 | Ethernet ports |
| 3 | PCIe expansion card slot 1 |
| 4 | PCIe expansion card slot 2 |
| 5 | BOSS riser slots |
| 6 | Power supply unit (PSU 2) |
| 7 | Power supply unit (PSU 1) |
| 8 | CMA jack |
| 9 | System ID button |
| 10 | USB 3.2 Gen 1 port |
| 11 | USB 2.0 port |
| 12 | iDRAC ethernet port |
| 13 | VGA port |
Inside the system

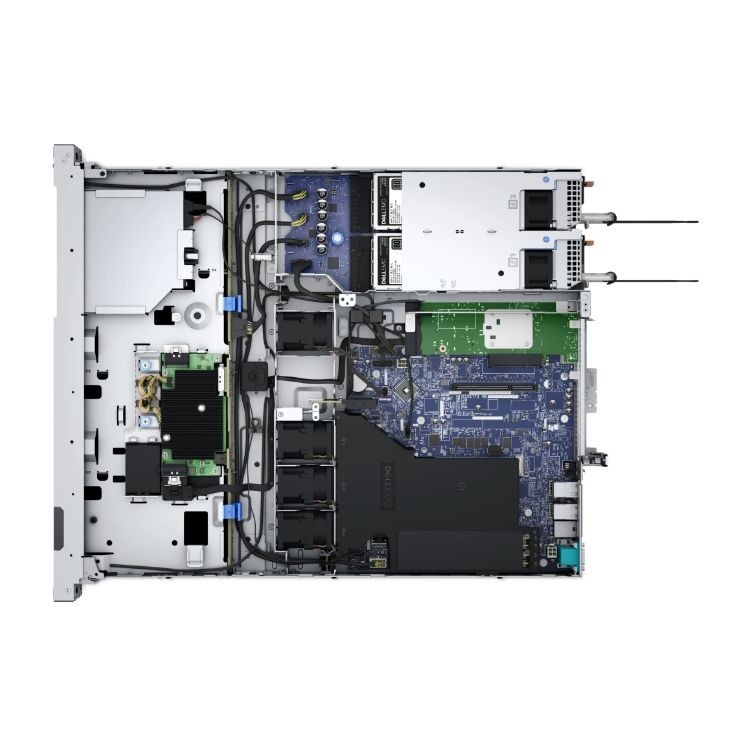

Figure 4. Inside the system
1. ODD
2. Drive backplane
3. Intrusion switch
4. Power interposer board
5. Butterfly riser
6. BOSS module
7. PSU 1 and PSU 2
8. Heat sink
9. System board
10. Fan
11. fPERC module
12. Information tag
