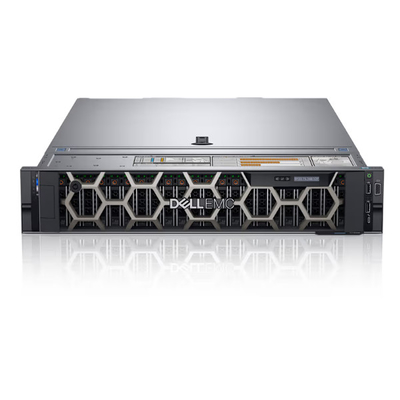

R7525The R7525 is a dual-socket 2U rack-mount server platform that provides powerful computing capabilities to meet complex workload demands.

The PowerEdge R7525 is a dual-socket 2U rack-mount server platform. Here is a detailed description1:

Processor: Supports two second-generation or third-generation AMD EPYC processors, each with up to 64 cores, providing powerful computing power to meet complex workload requirements.
Memory: The memory type is DDR4 RDIMM or LRDIMM, with a DIMM speed of up to 3200MT/s, 32 memory module slots, and supports a maximum of RDIMM 2TB and LRDIMM 4TB memory capacity, which can support running multiple applications and processing large amounts of data simultaneously.

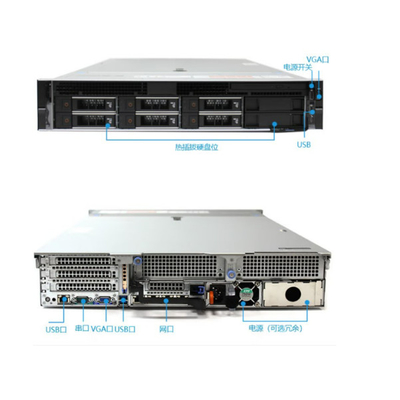

Storage: Hard disk interface: The front panel supports multiple configurations, including 24 2.5-inch NVME hard disks, or 16 2.5-inch SAS/SATA (SSD/HDD) and NVME hard disks, or 12 3.5-inch SAS/SATA (HDD) hard disks; the rear panel supports 2 2.5-inch SAS/SATA/NVME (HDD/SSD) hard disks.
Storage controller: Internal controllers include HBA345, PERC H345, PERC H745, etc.; external controllers include H840, 12Gbps SAS HBA; software RAID is S150. In addition, there are optional dual BOSS M.2 modules for hardware RAID and internal dual SD modules for internal boot.
Network: Two 1GE LOM network interfaces are standard, and network expansion can be performed through the OCP Mezz 3.0 expansion card, providing flexible network connection options to meet the needs of different network environments and application scenarios.
I/O slots: Supports up to 8 PCIe Gen 4 slots, which can be used to connect various expansion cards, such as Fibre Channel HBA cards, network adapters, GPU accelerator cards, etc., providing powerful expansion capabilities for the server.
Power supply: Provides a variety of power supply options such as 800W Platinum, 1400W Platinum and 2400W AC/HVDC, supports redundant power supply configuration, and ensures stable power supply of the server under various workloads.
Management: Integrated iDRAC9 management chip, providing rich management functions, including remote management through iDRAC RESTful API with Redfish, iDRAC Direct local management, Quick Sync 2 BLE/wireless module for mobile device management, etc., and also supports a variety of management tools and software integration, which is convenient for administrators to monitor, configure and maintain the server.
Security: It has a variety of security features, such as cryptographically signed firmware, secure boot, secure erase, silicon root of trust, system lock (requires OpenManage Enterprise support), optional TPM 1.2/2.0, TCM 2.0, AMD Secure Memory Encryption (SME) and AMD Secure Encrypted Virtualization (SEV), etc., to protect the data and business security on the server.
Dimensions: Height is 86.8mm, width is 434.0mm, depth is 736.29mm, maximum weight is 36.3kg, suitable for standard 2U rack installation, and can be easily deployed in the data center.
