Product Details:
|
| Processor Name:: | Intel | Processor Family:: | Ntel® Xeon® Scalable 8100/8200 Series Intel® Xeon® Scalable 6100/6200 Series Intel® Xeon® Scalable 5100/5200 Series Intel® Xeon® Scalable 4100/4200 Series Intel® Xeon® Scalable 3100/3200 Series |
|---|---|---|---|
| Processor Core Available:: | 4 To 28 Core, Depending On Model | Maximum Memory:: | Send Message English Request A Quote | A 1U Rack Storage Server Search Beijing Qianxing Jietong Technology Co., Ltd. HOMEPRODUCTSABOUT USFACTORY TOURQUALITY CONTROLCONTACT USNEWSCASESVR SHOW Home ProductsRack Storage ServerP19765-B21 P19766-B21 Rack Stor |
| Memory Slots:: | 24 DIMM Slots | Network Controller: | Embedded 4 X 1GbE Ethernet Adapter (select Models) Or HPE FlexibleLOM And Optional PCIe Stand-up Cards, Depending On Model |
| Highlight: | P19765-B21 Hpe Proliant Dl360 Gen10 Server,Hpe Proliant Dl360 Gen10 Server P19766-B21,Rack Storage Hpe Dl360 Gen10 Server |
||

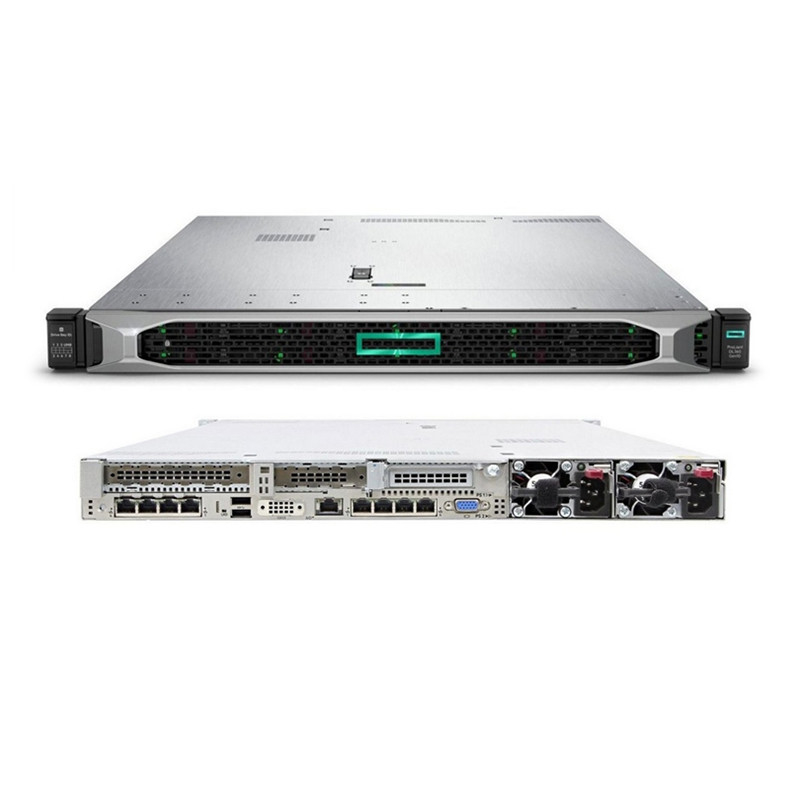

The HPE ProLiant DL360 Gen10 Server supports the Intel® Xeon® Scalable Processor Family with up to 28 cores, plus 2933 MT/s HPE DDR4 SmartMemory supporting up to 3.0 TB max. With the added performance that HPE Persistent Memory and 10 NVMe bring, the HPE ProLiant DL360 Gen10 means business. Deploy this dense platform for diverse workloads in space constrained environments and maintain it with ease by automating the most essential server lifecycle management tasks with HPE OneView and HPE iLO 5.
HPE ProLiant DL360 Gen10 server supports industry-standard technology leveraging the Intel Xeon Scalable processor with up to 28 cores, 12G SAS and 3.0 TB of 2933 MT/s HPE DDR4 SmartMemory.
Supporting the second generation Intel® Xeon® Scalable processor family with up to a 11% per-core performance gain over first generation and with memory speeds up to 2933 MT/s.
Achieve greater capacity with flexible drive configurations with up to 10 SFF and four LFF drives along with an option to support up to 10 NVMe PCIe SSDs delivering enhanced performance, capacity, and reliability to meet various customer segments and workload requirements at the right economics.
With support for up to 12 NVDIMMs per chassis and 2X capacity of first-generation HPE NVDIMMs, HPE ProLiant DL360 Gen10 server delivers up to 192 GB per system.
The premium 10 SFF NVMe chassis backplane provides the ability to mix and match SAS/SATA and NVMe within the same chassis along with 8 + 2 SFF and 4 LFF chassis that supports new uFF and M.2 storage options.
Embedded 4 x 1GbE (select models) or HPE FlexibleLOM and PCIe standup 1GbE, 10GbE, 25GbE, or 100GbE adapters provides flexibility of networking bandwidth and fabric so you can adapt and grow to changing business needs.
Unmatched expandability is packed in a dense 1U rack design with up to three PCIe 3.0 slots.
Tech Specs
Technical specifications |
HPE ProLiant DL360 Gen10 server |
|
Processor Type
|
Intel |
| Processor Family | Intel® Xeon® Scalable 8100/8200 series - Intel® Xeon® Scalable 3100/3200 series |
| Processor Core Available | 4 to 28 core, depending on model |
| Processor Cache Installed | 8.25 - 38.50 MB L3, depending on processor |
| Maximum Memory | 3.0 TB with 128 GB DDR4; 6.0 TB with HPE 512GB 2666 Persistent Memory Kit |
| Memory Slots | 24 DIMM slots |
| Memory Type | HPE DDR4 SmartMemory and Intel® Optane™ persistent memory 100 series for HPE, depending on model |
| NVDIMM Type | HPE NVDIMM-N *Only available on 1st Generation Intel® Xeon® Scalable Processors |
| NVDIMM Rank | Single rank |
| NVDIMM Capacity | 16 GB |
| Drive Supported | 4 LFF SAS/SATA, 8 SFF SAS/SATA + 2 NVMe, 10 SFF SAS/SATA, 10 SFF NVMe, 1 SFF or 1 Dual UFF rear drive optional depending on model |
| Network Controller | Embedded 4 X 1GbE Ethernet Adapter (select models) or HPE FlexibleLOM and optional PCIe stand-up cards, depending on model |
| Remote Management Software | HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download); Optional- HPE iLO Advanced, and HPE OneView Advanced (require licenses) |
| System Fan Features | Hot-plug redundant standard |
| Expansion Slots | 3, for detailed descriptions refer to the QuickSpecs |
| Storage Controller | HPE Smart Array S100i and/or HPE Essential or Performance RAID controllers, depending on model |
| Processor Name | Intel |
| Processor Number | 1 or 2 |
| Processor Speed | 3.9 GHz, maximum depending on processor |
| Standard Memory | 3.0 TB (24 X 128 GB) LRDIMM; 6.0 TB (12 X 512 GB) HPE Persistent Memory |
| Security | Optional locking Bezel Kit, Intrusion Detection Kit, and HPE TPM 2.0 |
| Form Factor | 1U |
| Weight (imperial) | 28.74 lb minimum, 37 lb maximum |
| Weight (metric) | 13.04 kg minimum, 16.78 kg maximum |
| Product Dimensions (imperial) | SFF Chassis: 1.69 x 17.11 x 27.83 in, LFF Chassis: 1.69 x 17.11 x 29.5 in |
| Product Dimensions (metric) | SFF Chassis: 4.29 x 43.46 x 70.7 cm, LFF Chassis: 4.29 x 43.46 x 74.98 cm |
8 SFF Front View – 8 SFF + 2 SFF- Universal Media Bay option shown
1.Drive support label
2.Quick removal access panel
3.Serial no. label pull tab
4. Universal Media Bay: +2 SFF SAS/SATA shown
Option: +2 SFF NVMe drives
Option: DVD-RW or DVD-ROM + Display port & USB 2.0 port Kit
Option: +2 Dual uFF (4x M.2 cartridges)
Option: Display port + USB 2.0 port Kit + Blank
5.Power On/Standby button and system power LED
6.Health LED
7.NIC status LED
8.UID button/LED
9.USB 3.0 port
10.iLO Service Port
11.Standard 8 SAS/SATA drive bays
