Product Details:
|
| SFP Transceiver Module: | SFP-GE-LX-SM1310 | Single-mode: | Single-mode Module(1310nm,10km,LC) |
|---|---|---|---|
| Optical Transceiver: | Huawei SFP-GE-LX-SM1310 | Huawei: | Huawei SFP-GE-LX-SM1310 Optical Transceiver,eSFP,GE, |
| Highlight: | 1310nm SFP-GE-LX-SM1310,LC SFP-GE-LX-SM1310,Single Mode Huawei SFP-GE-LX-SM1310 |
||

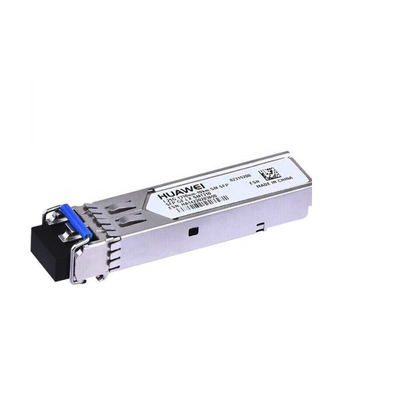

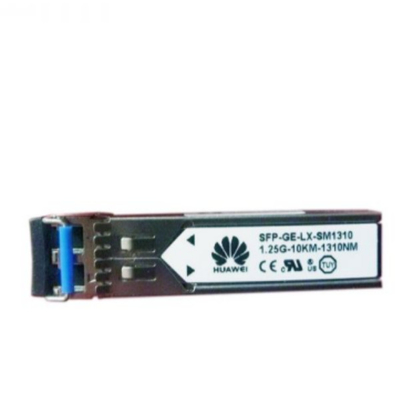

SFP-GE-LX-SM1310 Gigabit single-mode optical module is a very widely used gigabit optical module. The Gigabit single-mode package type is SFP, the transmission rate is 1.25G, the center wavelength is 1310nm, and the transmission distance can reach 10km when used with single-mode fiber. Gigabit single-mode optical modules support hot-swappable and low loss. Next, I will introduce some basic knowledge of the SFP-GE-LX-SM1310 Gigabit single-mode optical module.
principle:
The working principle of gigabit single-mode is photoelectric conversion. The sending end converts electrical signals into optical signals, and after transmission through optical fibers, the receiving end converts optical signals into electrical signals. The transmitting part is: the electrical signal of a certain code rate is input and processed by the internal driver chip to drive the semiconductor laser (LD) or light-emitting diode (LED) to emit a modulated optical signal at a corresponding rate. It has an optical power automatic control circuit inside, so that The output optical signal power remains stable. The receiving part is: an optical signal with a certain code rate is input into the module and then converted into an electrical signal by a light detection diode.
Table 9-8 SFP-GE-LX-SM1310 specifications
| Item | Value |
|---|---|
| Basic Information | |
| Module name | SFP-GE-LX-SM1310 |
| Part Number | 02315200 |
| Model | SFP-GE-LX-SM1310 |
| Form factor | eSFP |
| Application standard | 1000BASE-LX10/LH |
| Connector type | LC |
| Optical fiber type | SMF |
| Working case temperature [°C(°F)] | 0°C to 70°C (32°F to 158°F) |
| Transmission rate [bit/s] | 1 Gbit/s |
| Target transmission distance [km] | Single-mode fiber: 10 km |
Transmitter Optical Characteristics |
|
| Center wavelength [nm] | 1310 nm |
| Maximum Tx optical power [dBm] | -3.0 dBm |
| Minimum Tx optical power [dBm] | -9.0 dBm |
| Minimum extinction ratio [dB] | 9 dB |
| Receiver Optical Characteristics | |
| Rx sensitivity [dBm] | -20.0 dBm |
| Overload power [dBm] | -3.0 dBm |
Notices:
1. Open the packaging, check the products carefully, and take them gently.
2. The product is a brand new original unopened equipment.
3. All products 3 year warranty, and the buyer is responsible for the return shipping cost.
International Buyers Please Note:
Import duties, taxes, and charges are not included in the item price or shipping cost. These charges are the buyer's responsibility.
Please check with your country's customs office to determine what these additional costs will be prior to bidding or buying.
Customs fees are normally charged by the shipping company or collected when you pick the item up. These fees are not additional shipping charges.
We won't under-value merchandise or mark the item as a gift on customs forms. Doing that is against U.S. and international laws.
Customs delays are not the responsibility of the seller.
