Product Details:
|
| Model Number: | 10g Copper Sfp | Type: | Fiber Optic Transceivers |
|---|---|---|---|
| Condition: | Brand New | Data Transfer Rate: | 10Gbps |
| Distance: | 30M | Support: | 10Gbase-T / 5Gbase-T / 2.5Gbase-T / |
| Highlight: | 10Gbps SFP Transceiver Module,30M SFP Transceiver Module,RJ45 Huawei SFP Module 10G |
||

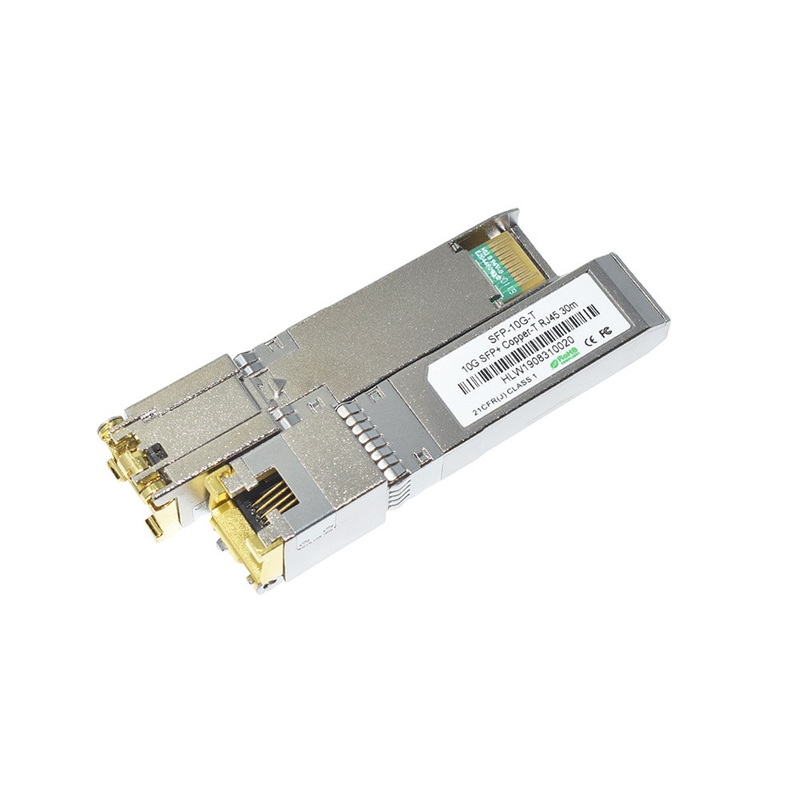

Huawei 10G SFP Copper RJ45 Transceiver Module
SFP+-10GBASE-T Copper Small Form Pluggable (SFP) transceivers are based on the SFP Multi Source Agreement (MSA) . They are compatible with the 10Gbase-T / 5Gbase-T / 2.5Gbase-T / 1000base-T standards as specified in IEEE Std 802.3 . SFP+-10GBASE-T uses the SFP's RX_LOS pin for link indication. If pull up SFP's TX_DISABLE pin, PHY IC be reset.
Feature:
Support 10Gbase-T / 5Gbase-T / 2.5Gbase-T / 1000base-T
Hot-pluggable SFP footprint
Compact RJ-45 connector assembly
RoHS compliant and lead-free
Single +3.3V power supply
10 Gigabit Ethernet over Cat 6a cable- Max 30M
Ambient Operating temperature: 0°C to +65°C
Applications:
10 Gigabit Ethernet
SFP+ Transceivers
| Cisco Part Number | Application | Data Rate | Wavelength | Distance |
Connector Type |
| SFP-10G-SR | SFP+ 10GBASE-SR | 10G | 850nm | 300m | LC |
| SFP-10G-LR | SFP+ 10GBASE-LR | 10G | 1310nm | 10km | LC |
| SFP-10G-LRM | SFP+ 10GBASE-LRM | 10G | 1310nm | 220m | LC |
| SFP-10G-ER | SFP+ 10GBASE-ER | 10G | 1550nm | 40km | LC |
| SFP-10G-ZR | SFP+ 10GBASE-ER | 10G | 1550nm | 80km | LC |
