Product Details:
|
| Form Factor: | 2U Rack | Chipset: | Intel C621/C622/C624 |
|---|---|---|---|
| Processor: | Supporting 1/2 Intel® Xeon® Scalable Processor | Memory: | Up To 24 X DDR4 2400/2666/2933MT/s Memory |
| Storage: | Front: Up To 12 X 3.5-inch/ 25 X 2.5-inch Hard Drives | Storage Controller: | Onboard SATA Controller, Supporting RAID 0/1/5/10 |
| Highlight: | Intel Xeon Inspur NF5280M5,2U Rackmount Servers,Rack Storage Server 2U |
||

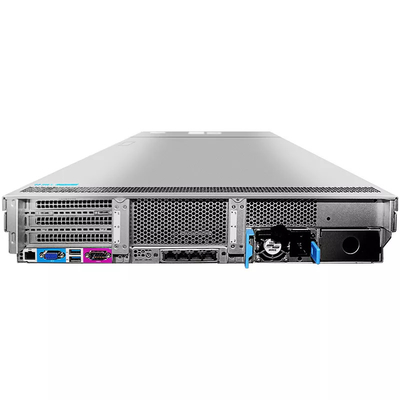

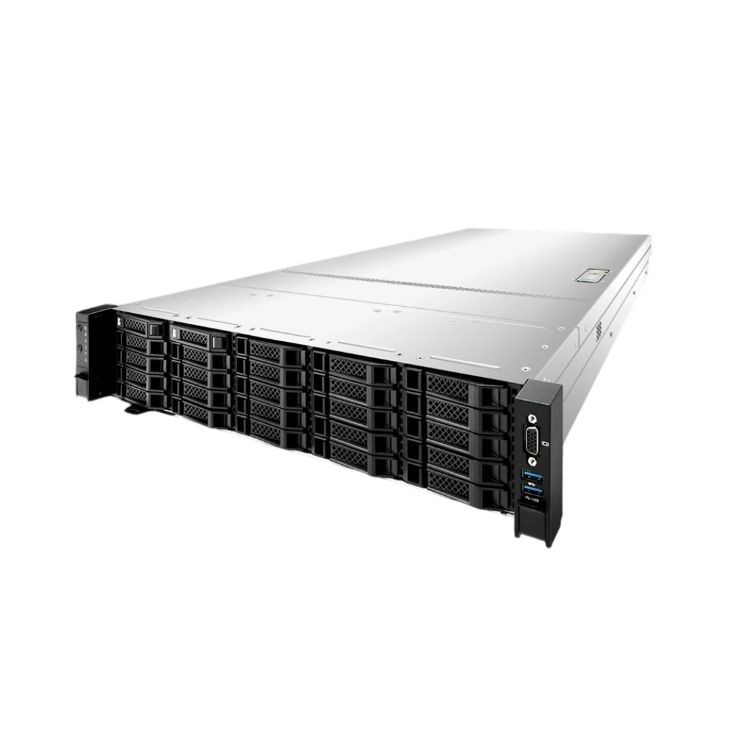

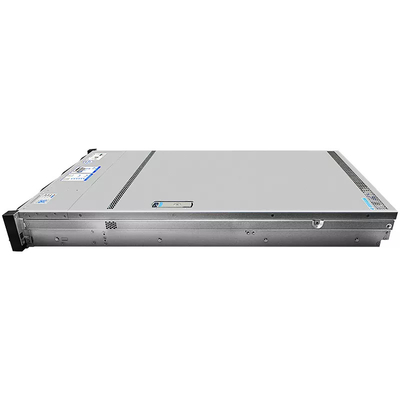

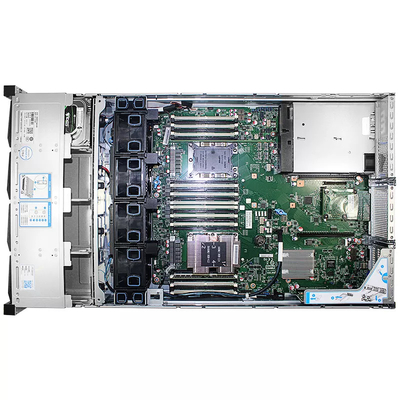

Intel Xeon Inspur NF5280M5 Rack Server 2U rack storage memory up
Inspur NF5280M5
Flexible Configurations for Various Application Scenarios
Ultimate Performance
NF5280M5 supports the new generation Intel® Xeon® Scalable processors, with up to 28 cores and 56 threads per CPU, up to 24 DDR4-2933 memories. 24 hot-swap NVMe SSDs full-flash configuration brings 15 billion + IOPS, huge leap on storage.
Supporting up to 4 double wide GPUs or 8 single wide GPUs. The FP16 computing power of single GPU can reach 112 teraflops which brings more feasibility for deep learning applications.
Profound Configuration
Supporting up to 20 x 3.5-inch hard drives or 31 x 2.5-inch hard drives in addition to 2 x M.2 SSDs to implement massive storage, which is 1.5 times larger than former generation.
Supporting free combination of OCP and PHY network cards with different network interfaces to provide 1Gb/10Gb/25Gb/40Gb flexible network configurations for different applications.
Supporting 9 x PCIe3.0 slots, 1 x OCP/PHY PCIe slot, meeting the system and performance demand of high-end customers.
Intelligent Management and Security
Conducting real-time monitoring and intelligent isolation and recovering. It adopts open management protocol and INSPUR BMC, which simplifies deployment, management and maintenance, optimized for large scale DC.
Supporting TPM2.0 security control, it conducts trust chain between soft and hardware as BIOS, memory, hard drive, OS and applications to prevent illegal write or replacement from unknown firmware. Ensuring system safe and controllable.
| Component | Description |
| Form Factor | 2U Rack |
| Processor | Supporting 1/2 Intel® Xeon® Scalable Processor |
| Processor Core: up to 28 cores (freq. 2.7GHz) | |
| Processor Frequency: up to 3.8GHz (4 cores) | |
| Two UPI interconnected links, the maximum transmission rate of single link is 10.4GT/s | |
| TDP: up to 205W | |
| Chipset | Intel C621/C622/C624 |
| Memory | Up to 24 x DDR4 2400/2666/2933MT/s memory |
| Single CPU supports 12 x DIMMs,dual CPU supports 24 x DIMMs | |
| Supporting RDIMM/LRDIMM/Optane™ PMem | |
| Each RDIMM/LRDIMM supports up to 128GB(Skylake)/256GB(Cascade Lake) | |
| Each Optane™ PMem supports up to 512GB(Cascade Lake) | |
| Storage | Front: up to 12 x 3.5-inch/ 25 x 2.5-inch hard drives |
| Internal: up to 4 x 3.5-inch and 2 x M.2 SSDs | |
| Rear: up to 4 x 3.5-inch, 4 x 2.5-inch hard drives | |
| Supporting SAS/SATA/SSD | |
| (The maximum quantity of supported hard drives is related to the specific configurations ) | |
| Storage | Onboard SATA controller, supporting RAID 0/1/5/10 |
| Controller | Onboard NVMe controller interface and Intel NVMe RAID Key is optional |
| Network | Supporting 1 x OCP or 1 x PHY |
| PHY: supporting 2/4 x 1/10 Gb Ethernet port | |
| OCP: supporting 1/2 x 10/25Gb Ethernet port | |
| Standard PCIe Ethernet card: supporting 1/10/25/40/100 Gb | |
| I/O Scalable | Supporting up to 9 x PCIe x8 slots and the different quantitative combination of x8/x16/OCP/PHY slots can be achieved by selecting different PCIe Riser |
| Slot | Supporting up to 4 double wide GPU / 8 single wide GPU |
| Interface | Front:1 x USB 2.0 (supporting LCD module), 1 x USB 3.0, 1 x VGA, 1 x UID indicator light and button |
| Internal: 2 x USB 3.0 | |
| Rear: 2 x USB 3.0, 1 x VGA, 1 x Management interface, 1 x UID indicator light and button | |
| System Fan | 4 x hot-swap N+1 redundant fans (dual-rotor) |
| PSU | Supporting 2 x 550W/800W/1300W/1600W/2000W PSU (Platinum/Titanium), |
| 1+1 redundant | |
| System | Onboard BMC management module, supporting IPMI, SOL, KVM |
| Management | Over IP, virtual media and other management features; providing one 1Gb RJ45 management interface (supporting NCSI); supporting SSD life detection and other functions |
| OS | Supporting Windows Server/Red Hat/SUSE/CentOS/ Debian/ XenServer/ Oracle Linux/ ESXi/Ubuntu etc. |
| Dimension | 435mm(W) x 87mm(H) x 780mm(D) |
| 17.13 inch (W) x 3.43 inch (H) x 30.71 inch (D) | |
| Weight | Full configuration<31kg, please refer to the technical white paper for details |
| Working | 5℃-45℃ |
| Temperature | 41℉-113℉ |
| Please refer to the technical white paper for details | |
| Performance Data | SPEC official result: Link Best application: Intel Xeon Gold 6238R Intel Xeon Gold 5220R Intel Xeon Silver 4215R |
