Product Details:
|
| Capacity: | 18TB | Interface: | SATA 6Gb/s |
|---|---|---|---|
| FastFormat (512e/4Kn): | SED | Model No: | ST18000NM000J |
| Dimensions: H X W X D: | 26.1mm/1.028in X 101.85mm/4.010in X 147.0mm/5.787in | Weight: | 670g/1.477lb |
| Highlight: | 6Gb/S Hard Drive HDD,Seagate Exos Enterprise 18TB,18TB ST18000NM000J |
||

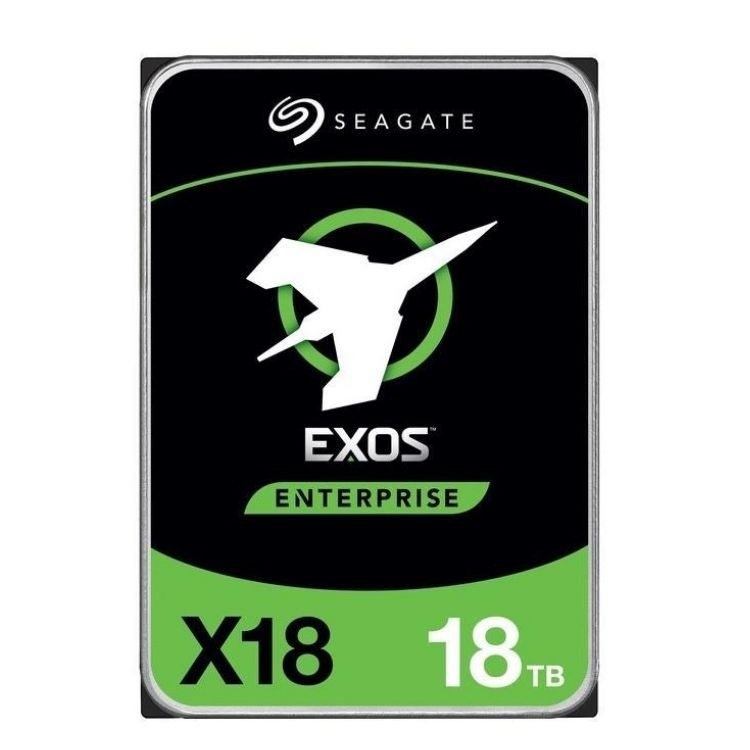

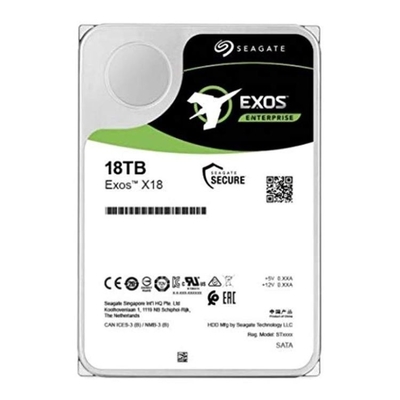

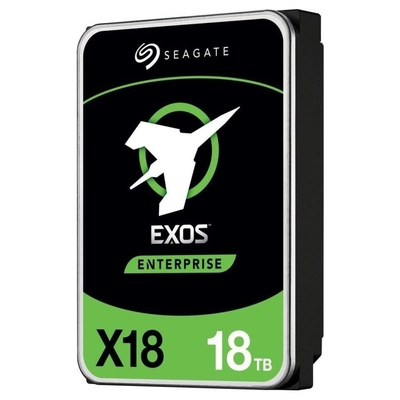

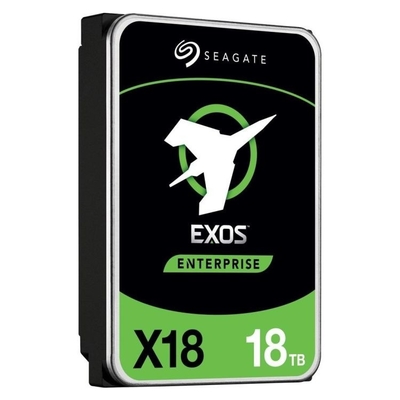

ST18000NM001J For Seagate Exos X18 18TB 3.5Inch Hyperscale SATA 6Gb/s 7200RPM 512e/4Kn Enterprise Hard Drive HDD
Exos X18 Hard Drive-ST18000NM001J SATA 6Gb/s 18TB
Delivering maximum storage capacity with the highest rack-space efficiency.
With Exos X18, you can support data analytics capabilities and other denser architectures for highest rack space efficiency.
Enterprise-class drives with a 550TB/year workload rating and 2.5M-hr MTBF to meet the most demanding storage requirements.
PowerChoice™ and PowerBalance™ for optimized power consumption when in use and idle—customizable to fit your needs.
Advanced write caching coupled with up to 270MB/s data transfer rates provides a boost in performance without compromising on capacity.
Password protection and AES-256 hardware encryption with Seagate Secure™—for drives you can depend on.
| Specifications | SATA 6Gb/s | 12Gb/s SAS | SATA 6Gb/s | 12Gb/s SAS | SATA 6Gb/s |
| Capacity | 18TB | 18TB | 16TB | 16TB | 14TB |
| Standard Model FastFormat™ (512e/4Kn)1 | ST18000NM000J | ST18000NM004J | ST16000NM000J | ST16000NM004J | ST14000NM000J |
| SED Model FastFormat (512e/4Kn)1,2 | ST18000NM001J | ST18000NM005J | ST16000NM001J | ST16000NM005J | ST14000NM001J |
| SED-FIPS FastFormat (512e/4Kn)1,2 | — | ST18000NM007J | — | ST16000NM007J | — |
| Features | |||||
| Helium Sealed-Drive Design | Yes | Yes | Yes | Yes | Yes |
| Conventional Magnetic Recording (CMR) | Yes | Yes | Yes | Yes | Yes |
| Protection Information (T10 DIF) | — | Yes | — | Yes | — |
| Super Parity | Yes | Yes | Yes | Yes | Yes |
| Low Halogen | Yes | Yes | Yes | Yes | Yes |
| PowerChoice™ Idle Power Technology | Yes | Yes | Yes | Yes | Yes |
| PowerBalance™ Power/Performance Technology | Yes | Yes | Yes | Yes | Yes |
| Hot-Plug Support3 | Yes | Yes | Yes | Yes | Yes |
| Cache, Multisegmented (MB) | 256 | 256 | 256 | 256 | 256 |
| Organic Solderability Preservative | Yes | Yes | Yes | Yes | Yes |
| RSA 3072 Firmware Verification (SD&D) | Yes | Yes | Yes | Yes | Yes |
| Reliability/Data Integrity | |||||
| Mean Time Between Failures (MTBF, hours) | 2,500,000 | 2,500,000 | 2,500,000 | 2,500,000 | 2,500,000 |
| Reliability Rating @ Full 24×7 Operation (AFR) | 0.35% | 0.35% | 0.35% | 0.35% | 0.35% |
| Nonrecoverable Read Errors per Bits Read | 1 sector per 10E15 | 1 sector per 10E15 | 1 sector per 10E15 | 1 sector per 10E15 | 1 sector per 10E15 |
| Power-On Hours per Year (24×7) | 8760 | 8760 | 8760 | 8760 | 8760 |
| 512e Sector Size (Bytes per Sector) | 512 | 512, 520, 528 | 512 | 512, 520, 528 | 512 |
| 4Kn Sector Size (Bytes per Sector) | 4096 | 4096, 4160, 4224 | 4096 | 4096, 4160, 4224 | 4096 |
| Limited Warranty (years) | 5 | 5 | 5 | 5 | 5 |
| Performance | |||||
| Spindle Speed (RPM) | 7200RPM | 7200RPM | 7200RPM | 7200RPM | 7200RPM |
| Interface Access Speed (Gb/s) | 6.0, 3.0 | 12.0, 6.0, 3.0 | 6.0, 3.0 | 12.0, 6.0, 3.0 | 6.0, 3.0 |
| Max. Sustained Transfer Rate OD (MB/s,MiB/s) | 270/258 | 270/258 | 270/258 | 270/258 | 270/258 |
| Random Read/Write 4K QD16 WCD (IOPS) | 170/550 | 170/550 | 170/550 | 170/550 | 170/550 |
| Average Latency (ms) | 4.16 | 4.16 | 4.16 | 4.16 | 4.16 |
| Interface Ports | Single | Dual | Single | Dual | Single |
| Rotation Vibration @ 20-1500 Hz (rad/sec²) | 12.5 | 12.5 | 12.5 | 12.5 | 12.5 |
| Power Consumption | |||||
| Idle A (W) Average | 5.3W | 5.6W | 5.1W | 5.5W | 4.9W |
| Max Operating, Random Read/Write 4K/16Q (W) | 9.4, 6.4 | 9.8, 7.0 | 9.4, 6.4 | 9.6, 6.7 | 9.2, 6.3 |
| Power Supply Requirements | +12 V and +5 V | +12 V and +5 V | +12 V and +5 V | +12 V and +5 V | +12 V and +5 V |
| Environmental | |||||
| Temperature, Operating (°C) | 5°C – 60°C | 5°C – 60°C | 5°C – 60°C | 5°C – 60°C | 5°C – 60°C |
| Vibration, Nonoperating: 2 to 500Hz (Grms) | 2.27 | 2.27 | 2.27 | 2.27 | 2.27 |
| Shock, Operating 2ms (Read/Write) (Gs) | 50 | 50 | 50 | 50 | 50 |
| Shock, Nonoperating 2ms (Gs) | 200 | 200 | 200 | 200 | 200 |
| Physical | |||||
| Height (mm/in, max)4 | 26.1mm/1.028in | 26.1mm/1.028in | 26.1mm/1.028in | 26.1mm/1.028in | 26.1mm/1.028in |
| Width (mm/in, max)4 | 101.85mm/4.010in | 101.85mm/4.010in | 101.85mm/4.010in | 101.85mm/4.010in | 101.85mm/4.010in |
| Depth (mm/in, max)4 | 147.0mm/5.787in | 147.0mm/5.787in | 147.0mm/5.787in | 147.0mm/5.787in | 147.0mm/5.787in |
| Weight (g/lb) | 670g/1.477lb | 670g/1.477lb | 670g/1.477lb | 670g/1.477lb | 650g/1.433lb |
| Carton Unit Quantity | 20 | 20 | 20 | 20 | 20 |
| Cartons per Pallet/Cartons per Layer | 40/8 | 40/8 | 40/8 | 40/8 | 40/8 |
| Specifications | 12Gb/s SAS | SATA 6Gb/s | SAS 12Gb/s | SATA 6Gb/s | 12Gb/s SAS |
| Capacity | 14TB | 12TB | 12TB | 10TB | 10TB |
| Standard Model FastFormat™ (512e/4Kn)1 | ST14000NM004J | ST12000NM000J | ST12000NM004J | ST10000NM018G | ST10000NM013G |
| SED Model FastFormat (512e/4Kn)1,2 | ST14000NM005J | ST12000NM001J | ST12000NM005J | ST10000NM020G | ST10000NM014G |
| SED-FIPS FastFormat (512e/4Kn)1,2 | ST14000NM007J | — | ST12000NM007J | — | ST10000NM016G |
| Features | |||||
| Helium Sealed-Drive Design | Yes | Yes | Yes | Yes | Yes |
| Conventional Magnetic Recording (CMR) | Yes | Yes | Yes | Yes | Yes |
| Protection Information (T10 DIF) | Yes | — | Yes | — | Yes |
| Super Parity | Yes | Yes | Yes | Yes | Yes |
| Low Halogen | Yes | Yes | Yes | Yes | Yes |
| PowerChoice™ Idle Power Technology | Yes | Yes | Yes | Yes | Yes |
| PowerBalance™ Power/Performance Technology | Yes | Yes | Yes | Yes | Yes |
| Hot-Plug Support3 | Yes | Yes | Yes | Yes | Yes |
| Cache, Multisegmented (MB) | 256 | 256 | 256 | 256 | 256 |
| Organic Solderability Preservative | Yes | Yes | Yes | Yes | Yes |
| RSA 3072 Firmware Verification (SD&D) | Yes | Yes | Yes | Yes | Yes |
| Reliability/Data Integrity | |||||
| Mean Time Between Failures (MTBF, hours) | 2,500,000 | 2,500,000 | 2,500,000 | 2,500,000 | 2,500,000 |
| Reliability Rating @ Full 24×7 Operation (AFR) | 0.35% | 0.35% | 0.35% | 0.35% | 0.35% |
| Nonrecoverable Read Errors per Bits Read | 1 sector per 10E15 | 1 sector per 10E15 | 1 sector per 10E15 | 1 sector per 10E15 | 1 sector per 10E15 |
| Power-On Hours per Year (24×7) | 8760 | 8760 | 8760 | 8760 | 8760 |
| 512e Sector Size (Bytes per Sector) | 512, 520, 528 | 512 | 512, 520, 528 | 512 | 512, 520, 528 |
| 4Kn Sector Size (Bytes per Sector) | 4096, 4160, 4224 | 4096 | 4096, 4160, 4224 | 4096 | 4096, 4160, 4224 |
| Limited Warranty (years) | 5 | 5 | 5 | 5 | 5 |
| Performance | |||||
| Spindle Speed (RPM) | 7200RPM | 7200RPM | 7200RPM | 7200RPM | 7200RPM |
| Interface Access Speed (Gb/s) | 12.0, 6.0, 3.0 | 6.0, 3.0 | 12.0, 6.0, 3.0 | 6.0, 3.0 | 12.0, 6.0, 3.0 |
| Max. Sustained Transfer Rate OD (MB/s,MiB/s) | 270/258 | 270/258 | 270/258 | 270/258 | 270/258 |
| Random Read/Write 4K QD16 WCD (IOPS) | 170/550 | 170/550 | 170/550 | 170/550 | 170/550 |
| Average Latency (ms) | 4.16 | 4.16 | 4.16 | 4.16 | 4.16 |
| Interface Ports | Dual | Single | Dual | Single | Dual |
| Rotation Vibration @ 20-1500 Hz (rad/sec²) | 12.5 | 12.5 | 12.5 | 12.5 | 12.5 |
| Power Consumption | |||||
| Idle A (W) Average | 5.0W | 4.4W | 5.0W | 4.4W | 4.9W |
| Max Operating, Random Read/Write 4K/16Q (W) | 9.1, 6.3 | 8.6, 5.8 | 9.1, 6.2 | 8.6, 5.4 | 9.0, 5.9 |
| Power Supply Requirements | +12 V and +5 V | +12 V and +5 V | +12 V and +5 V | +12 V and +5 V | +12 V and +5 V |
| Environmental | |||||
| Temperature, Operating (°C) | 5°C – 60°C | 5°C – 60°C | 5°C – 60°C | 5°C – 60°C | 5°C – 60°C |
| Vibration, Nonoperating: 2 to 500Hz (Grms) | 2.27 | 2.27 | 2.27 | 2.27 | 2.27 |
| Shock, Operating 2ms (Read/Write) (Gs) | 50 | 50 | 50 | 50 | 50 |
| Shock, Nonoperating 2ms (Gs) | 200 | 200 | 200 | 200 | 200 |
| Physical | |||||
| Height (mm/in, max)4 | 26.1mm/1.028in | 26.1mm/1.028in | 26.1mm/1.028in | 26.1mm/1.028in | 26.1mm/1.028in |
| Width (mm/in, max)4 | 101.85mm/4.010in | 101.85mm/4.010in | 101.85mm/4.010in | 101.85mm/4.010in | 101.85mm/4.010in |
| Depth (mm/in, max)4 | 147.0mm/5.787in | 147.0mm/5.787in | 147.0mm/5.787in | 147.0mm/5.787in | 147.0mm/5.787in |
| Weight (g/lb) | 650g/1.433lb | 650g/1.433lb | 650g/1.433lb | 650g/1.433lb | 650g/1.433lb |
| Carton Unit Quantity | 20 | 20 | 20 | 20 | 20 |
| Cartons per Pallet/Cartons per Layer | 40/8 | 40/8 | 40/8 | 40/8 | 40/8 |
