Product Details:
|
| Interface Type: | Port RJ-45 | Brand: | Dell Original |
|---|---|---|---|
| Storage Format: | Block (SAN) | Controllers: | 12Gbps SAS |
| Capacity: | 3000 TiB Maximum | Power Supplies (per PSU): | 580W*2 |
| Highlight: | SAN DAS Dell Storage Server,Dell Storage Server ME5012,Dual Controller 2U Storage Server |
||
Dell Storage ME5012 12*3.5LFF SAN DAS 8 Port Dual Controller 2U Storage PowerVault ME5012 Storage Array
Dell EMC PowerVault ME5012 Storage Array
Entry storage purpose-built and optimized for SAN/DAS
The, simple, fast and affordable Dell PowerVault ME5 storage platforms are optimized to run a variety of mixed workload applications – physical and virtual – for small to medium size businesses. Whether you need to consolidate your block storage, support applications without the need for low latency flash and NVMe, take advantage of intelligent data management or scale capacity to keep pace with data growth, then PowerVault ME5 is ready to meet your growing business needs. The flexibility of PowerVault ME5 offers multiple protocols, supports a wide range of drive types and capacities, scales up to 8PB1 capacity, validated with Dell PowerEdge Servers (16G ready) and is delivered to you with all-inclusive software – so you’ll have the needed data services to store, manage, and protect your data.
Using fast Intel Xeon processors, Dell PowerVault ME5 storage implements a dual-active controller architecture, 12GB/sec read and 10GB/sec write throughput and uses a 12Gb SAS backend protocol for rapid capacity expansion.

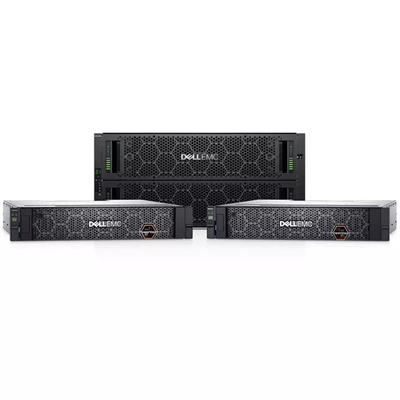

Dell PowerVault ME5 base system and expansion models

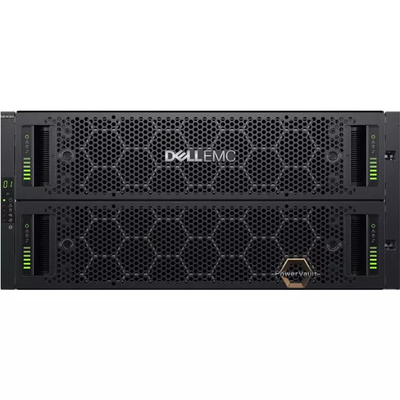

The two non-dense ME5 base arrays start at 2U and the dense ME5 array starts at 5U. The base models all support dual-active controllers with each controller including 16GB of memory.
| PowerVault ME5 Specifications | |
| Chassis Overview | |
| Chassis format | All-in-one: dual controllers, internal drive bays, networking and with expansion options |
| Rack size | 2U or 5U |
| Controllers | 2 hot-swappable per chassis (dual-active) Single/dual controller support for 2U models Dual controller support only for 5U model |
| Processor | Intel® Xeon Processor |

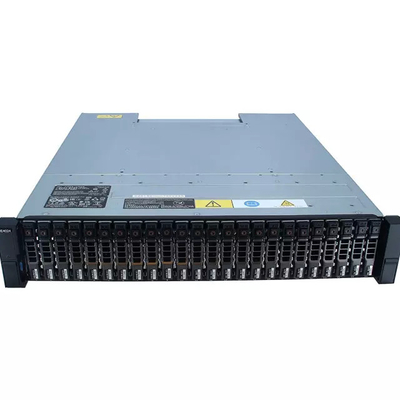

| Internal storage | ME5012: 12 x 3.5” drive bays (2.5” drive carriers supported) ME5024: 24 x 2.5” drive bays ME5084: 84x 3.5” drive bays (2.5” drive carriers supported) |
| System memory | 16GB per controller (32GB total) |
| Expansion Capacity | |
| Expansion enclosures | ME412: 12 x 3.5” drive bays (12Gb SAS) ME424: 24 x 2.5” drive bays (12Gb SAS) ME484: 84 x 3.5” drive bays (12Gb SAS) |
| Min/Max drive count | ME5012: 2/264 ME5024: 2/276 ME5084: 28/336 |
| Max raw capacity1 | ME5012: 2.40PB (with 9xME412 expansion) | ME5012: 1.89PB (with 9xME424 expansion) ME5024: 2.34PB (with 9xME412 expansion) | ME5012: 1.83PB (with 9xME424 expansion) ME5012: 5.28PB (with 3xME484 expansion) | ME5024: 5.22PB (with 3xME484 expansion) ME5084: 6.72PB (with 3xME484 expansion) |
| NAS Support | Supported with NX Series Windows NAS appliance |
| Storage media | SAS and NL-SAS drives; different drive types, transfer rates, rotational speeds can be mixed in the same system: • NLSAS 7.2K 3.5” – 4TB, 8TB, 12TB, 16TB, 16TB FIPS, 20TB • SAS 10K 2.5” – 1.2TB, 2.4TB, 2.4TB FIPS • SSD – 960GB RI, 1.6TB MU, 1.92TB, 3.84TB, 3.84TB FIPS, 7.68TB RI • SDD and HDD: FIPS-certified SEDs |
| Network, Expansion Enclosure and I/O | |
| Host interface | FC, iSCSI (optical or BaseT), SAS |
| Max 32Gb FC ports | 8 per array (support auto-negotiate to 16Gb) |
| Max 25Gb iSCSI ports |
8 SFP+ or SFP28 ports per array |
| Max 10Gb iSCSI ports |
8 BaseT ports per array (only support auto negotiate to 1Gb) |
| Max 12Gb SAS ports | 8 12Gb SAS ports |
| Max management ports |
2 per array (1Gb BASE-T) |
| Disk expansion protocol |
12Gb SAS |
| Disk interface expansion ports |
2 x 12Gb SAS (wide-Port) per array (1 port per controller) Up to 9 2U expansion enclosures per 2U base array Up to 3 5U expansion enclosures per 2U base array Up to 3 5U expansion enclosures per 5U base array |
| Functional | |
| Array configurations | All-flash, hybrid flash, HDD only arrays |
| Storage format | Native block-level SAN or DAS |
| Data Optimization | |
| Auto-tiering | Up to 3 primary (media-based) tiers |
| RAID support | RAID 1, 5, 6, 10, or ADAPT RAID; any combination of RAID levels can exist in single array |
| ADAPT RAID | Distributed erasure coding that reduces rebuild times when drive failures occur |
| Thin provisioning | Active by default on all volumes, operates at full performance across all features |
| Snapshots | 1024 maximum re-direct-on-write snapshots per array |
| Data Mobility and Migration | |
| Replication | Asynchronous replication via FC or iSCSI – ME4 to ME5; ME5 to ME4; ME5 to ME5 Target/source relationships may be one-to-many or many-to-one |
| Volume copy | Copy complete standalone volumes |
| Data Protection, Disaster Recovery, Security | |
| Business continuity | VMware Site Recovery Manager |
| Data-at-rest encryption | Self-encrypting drives (SEDs) in SSD or HDD formats Full Disk Encryption (FDE) based on AES-256 Drives certified to FIPS 140-2 Level 2 |
| Key manager | Internal controller key management |
| Management | |
| Management support | PowerVault Manager HTML5 GUI element manager, CLI, OpenManage Enterprise 3.9 |
| VMware vCenter | VMware vCenter plugin to manage ME5 arrays through vCenter. |
| Scripting | CLI API Redfish/Swordfish REST API |
| Supported host OS | Windows 2022, 2019 and 2016 RHEL 8.2 and 7.8 SLES 15.2 and 12.5 VMware 7.0 and 6.7 Citrix XenServer 8.x and 7.x |
| Virtualization integration |
VMware vSphere (ESXi) vCenter; SRM Microsoft Hyper-V |
| Physical Base System | |
| Rack size | ME5012 (2U), ME5024 (2U), ME5084 (5U) |
| Base system height | ME5012: 8.79 cm (3.46 inches) ME5024: 8.79 cm (3.46 inches) ME5084: 22.23 cm (8.75 inches) |
| Base system width | ME5012: 48.30 cm (19.01 inches) ME5024: 48.30 cm (19.01 inches) ME5084: 48.30 cm (19.01 inches) |
| Base system depth | ME5012: 61.87mm (24.36 inches) ME5024: 54.78mm (21.56 inches) ME5084: 981mm (38.62 inches) |
| Weight (max configuration) | ME5012: 32.00 kg (71.00 lbs) ME5024: 30.00 kg (66.00 lbs) ME5084: 135.00 kg (298.00 lbs) |
| Weight (empty) | ME5012: 4.80 kg (10.56 lbs) without drives ME5024: 4.80 kg (10.56 lbs) without drives ME5084: 64.00 kg (141.00 lbs) without drives |
| Physical Expansion Enclosure | |
| Rack size | ME412 (2U), ME424 (2U), ME484 (5U) |
| Expansion height | ME412: 8.79 cm (3.46 inches) ME424: 8.79 cm (3.46 inches) ME484: 22.23 cm (8.75 inches) |
| Expansion width | ME412: 48.30 cm (19.01 inches) ME424: 48.30 cm (19.01 inches) ME484: 48.30 cm (19.01 inches) |
| Expansion depth | ME412: 60.29 cm (23.74 inches) ME424: 60.29 cm (23.74 inches) ME484: 97.47 cm (38.31 inches) |
| Weight (max configuration) | ME412: 28.00 kg (62.00 lbs) ME424: 25.00 kg (55.00 lbs) ME484: 130.00 kg (287.00 lbs) |
| Weight (empty) | ME412: 4.80 kg (10.56 lbs) without drives ME424: 4.80 kg (10.56 lbs) without drives ME484: 64.00 kg (141.00 lbs) without drives |
| Base System Power | |
| Power/wattage | ME5012: 580W ME5024: 580W ME5084: 2200W |
| Heat dissipation | ME5012: 1980 BTU ME5024: 1980 BTU ME5084: 7507 BTU |
| Voltage | ME5012: 100-240 VAC ME5024: 100-240 VAC ME5084: 200-240 VAC |
| Frequency | 50/60 Hz |
| Amperage | ME5012: 7.6-3.0A (x2) ME5024: 7.6-3.0A (x2) ME5084: 11.07-9.23A (x2) |
| Expansion Power | |
| Power/wattage | ME412: 580W ME424: 580W ME484: 2200W |
| Heat dissipation | ME412: 1980 BTU ME424: 1980 BTU ME484: 7507 BTU |
| Voltage | ME412: 100-240 VAC ME424: 100-240 VAC ME484: 200-240 VAC |
| Frequency | 50/60 Hz |
| Amperage | ME412: 7.6-3.0A (x2) ME424: 7.6-3.0A (x2) ME484: 11.07-9.23A(x2) |
| Environmental Operating Conditions | |
| Operating temperature | 5°C - 35°C (41°F - 95°F, derated by 1°C per 300mm above 900m) |
| Non-operating temperature | -40°C to 70°C (-40 to 158°F) Maximum temperature changes in an hour: 20°C |
| Operating humidity ranges (non-condensing) |
-12C dew point minimum, 8% to 85% maximum, non-condensing |
| Non-operating humidity (non condensing) |
21°C dew point maximum, 5% to 100% maximum, non-condensing |
| Service & Warranty | |
| Services | Dell ProSupport Enterprise Suite and Dell ProDeploy Enterprise Suite. Optional ProSupport Plus is available offering pro-active and preventative services to improve performance and stability. |

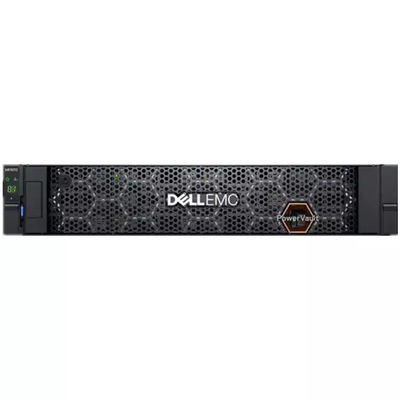

PowerVault ME5012 Storage Array
ME5012 12 drive / 2U
