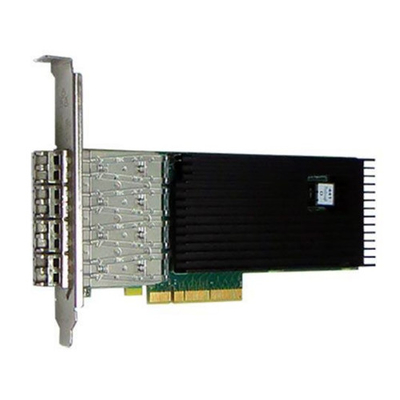

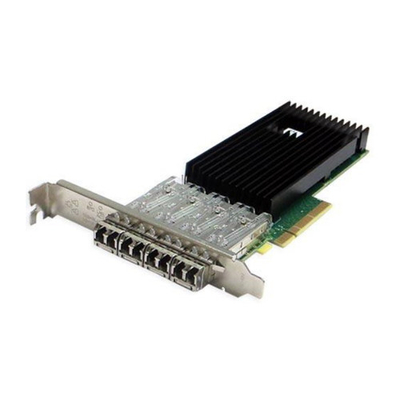

PE310G4I71L Server Adapter
Quad Port Fiber SFP+ 10 Gigabit Ethernet PCI Express Server Adapter Intel® FTXL710BM1 Based
Product Description
Silicom’s 10 Gigabit Ethernet PCI Express server adapters are designed for Servers and high-end appliances.
The Silicom 10 Gigabit Ethernet PCI Express Server adapters offer simple integration into any PCI Express X8 to 10Gigabit Networks.
The performance is optimized so that system I/O is not the bottleneck in high-performance networking applications.
The Silicom 10 Gigabit Ethernet PCI Express server adapters are based on Intel® XL710 Ethernet controller with fully integrated Gigabit Ethernet Media
Access Control (MAC) and SFI Interface. In addition to managing MAC and PHY Ethernet layer functions, the controller manages PCI Express packet traffic across its transaction, link, and physical/logical layers. Using hardware acceleration, the controller offloads tasks from the host, such as TCP/UDP/IP checksum calculations
and TCP segmentation.
Silicom’s 10 Gigabit Ethernet PCI-Express Server adapters are the ideal solution for implementing multiple network segments, mission-critical high- powered networking applications and environments within high performance servers.
Key Features
SFP+ 10Gigabit Ethernet:
10Gigabit Ethernet Adapter with SFP cage support:
-SRD: Fiber 1/10 Gigabit Ethernet 1000Base-SX / 10GBASE-SR:
1000BASE-SX with 1G 850nM Small form Factor Pluggable (SFP+)
10GBASE-SR with 10Gigabit 850nM Small form Factor Pluggable (SFP+)
-LRD: Fiber 1/10 Gigabit Ethernet 1000Base-LX / 10GBASE-LR:
1000BASE-LX with 1G 1310nM Small form Factor Pluggable (SFP+)
10GBASE-LR with 10Gigabit 1310nM Small form Factor Pluggable (SFP+)
-SRD: Fiber 1/10 Gigabit Ethernet 1000Base-SX / 10GBASE-SR:
10 Gigabit Fiber Ethernet port supports 10GBASE-SR (850nM LAN PHY)
1Gigabit Fiber Ethernet port supports 1000BASE-SX (850nM LAN PHY)
1/10Gigabit 850nM Small form Factor Pluggable (SFP+)
-LRD: Fiber 1/10 Gigabit Ethernet 1000Base-LX / 10GBASE-LR:
10 Gigabit Fiber Ethernet port supports 10GBASE-LR (1310nM LAN PHY)
1Gigabit Fiber Ethernet port supports 1000BASE-LX (1310nM LAN PHY)
1/10Gigabit 1310nM Small form Factor Pluggable (SFP+)
Performance Features:
Support for jumbo frame up to 9.5KB
Flow control support
Priority Flow Control (draft IEEE 802.1Qbb)
Enhanced Transmission Selection (draft IEEE802.1az)
Statistics management and RMON
802.1q VLAN support
DCB/DCB-X support
Message Signal interrupts (MSI-X)
Storage – Enabling competitive performance with native OS intelligent offload solutions, including NAS, iSCSI and FCoE
Host Interface:
PCI Express X8 lanes
Support PCI Express Base Specification 3.0 (8GT/sec)
LAN and Virtualization Features:
Network Virtualization offloads for VXLAN and NVGRE
Unified Networking Providing a single wire for LAN and storage: NAS (SMB, NFS) and SAN (iSCSI, FCoE)
Virtual Bridging Support – VEPA/802.1Qbg, BPE/802.1Qbh
Physical Functions – Up to 8 per port, up to 16 per device
Support for 128 Virtual Device Queues (VMDq) per port
Hardware Queue Pairs – Up to 1.5K (non-RDMA); up to 256K (RDMA)
Virtualization – Alleviating hypervisor I/O bottlenecks by providing flow separation for Virtual Machines (VMs)
TCP/IP/L2 features:
Receive Side Scaling (RSS)
Large Send Offload (LSO)
TCP/UDP/IP/SCTP Checksum Offload
IPV4, IPV6
Technical Specifications
| SFP+ 10Gigabit Ethernet Technical Specifications Adapters: |
| SFP+ (Small Form Factor Pluggable) supports: |
SFI interfaces supports 10GBase-R PCS and 10 Gigabit PMA in order to connect with SFP+ to 10GBase-SR / / 1000Base-SX / 10GBase-LR and SFP+ Direct Attach |
|
10GBase-SR SFP+:
IEEE Standard / Network topology:
|
Fiber 10Gigabit Ethernet, 10GBASE-SR (850nM LAN PHY)
|
|
10GBase-SR SFP+:
Data Transfer Rate :
|
10.3125GBd
|
|
10GBase-SR SFP+:
Cables and Operating distance Up to
|
62.5um, 160MHz/Km 26m
62.5um, (OM1)200MHz/Km 33m
50um, 400MHz/Km 66m
50um, (OM2)500 MHz/Km 82m
50um, (OM3)2000MHz/Km 300m
|
|
10GBase-LR SFP+:
IEEE Standard / Network topology:
|
Fiber 10Gigabit Ethernet, 10GBASE-LR (1310nM LAN PHY)
|
|
10GBase-LR SFP+:
Data Transfer Rate:
|
10.3125GBd
|
|
10GBase-LR SFP+:
Cables and Operating distance Up to:
|
Single-Mode: 10000m at 9um
|
|
10GSFP+Cu :
IEEE Standard / Network topology:
|
Copper 10Gigabit Ethernet, 10GSFP+Cu (Direct Attach)
|
|
1000Base-SX / 10GBase-SR SFP+:
IEEE Standard / Network topology:
|
Fiber Gigabit Ethernet, 1000Base-SX (850nM LAN PHY) Fiber 10Gigabit Ethernet, 10GBASE-SR (850nM LAN PHY)
|
|
1000Base-SX / 10GBase-SR SFP+:
Data Transfer Rate :
|
10.3125GBd / 1.25GBd
|
|
10000Base-SX / 10GBase-SR SFP+:
Cables and Operating distance Up to:
|
10000Base-SX:
62.5um, 160MHz/Km 220m
62.5um, (OM1)200MHz/Km 275m
50um, 400MHz/Km 500m
50um, (OM2)500 MHz/Km 550m
50um, (OM3)2000MHz/Km >550m
10GBase-SR:
62.5um, 160MHz/Km 26m
|
| |
62.5um, (OM1)200MHz/Km 33m
50um, 400MHz/Km 66m
50um, (OM2)500 MHz/Km 82m
50um, (OM3)2000MHz/Km 300m
|
|
1000Base-LX / 10GBase-LR SFP+:
IEEE Standard / Network topology:
|
Fiber Gigabit Ethernet, 1000Base-LX (1310nM LAN
Fiber 10Gigabit Ethernet, 10GBASE-LR (1310nM LAN PHY)
|
|
1000Base-LX / 10GBase-LR SFP+:
Data Transfer Rate :
|
10.3125GBd / 1.25GBd
|
|
1000Base-LX / 10GBase-LR SFP+:
Cables and Operating distance Up to:
|
10000Base-LX:
Single-Mode: 5000m at 9um
10GBase-LR:
Single-Mode: 10000m at 9um
|
|
1000Base-T SFP:
IEEE Standard / Network topology:
|
1000BASE-T Ethernet
|
