Product Details:
|
| Product Name: | Network Communication Switch | Brand Model Number: | Huawei Switch S5735S-L24T4S-QA2 |
|---|---|---|---|
| Number Of Ports: | 24 Gigabit Ethernet Ports | Port Type: | 24 Ports Of Gigabit Electricity+4 Ports Of Gigabit Light |
| Data Transfer Rate: | 10/100/1000Mbps | Number Of Ports: | 24 |
| Port Type: | RJ-45 | Power Consumption: | 44W |
| Power Source: | AC | Product Type: | Datacom Switches |

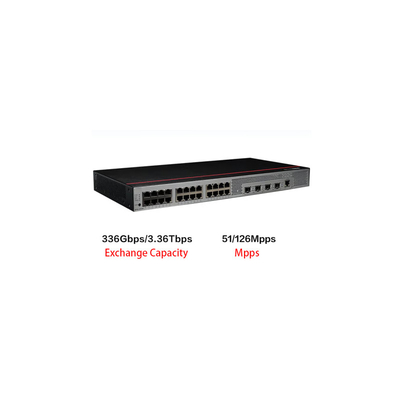

| Backplane Bandwidth: | 336Gbps/3.36Tbps | Mpps: | 51/126Mpps |
| Exchange Method: | Store-and-forward | Application Level: | Three |
| Highlight: | S5735S-L24T4S-QA2 huawei switch,network communication huawei switch |
||
| Basic information | |

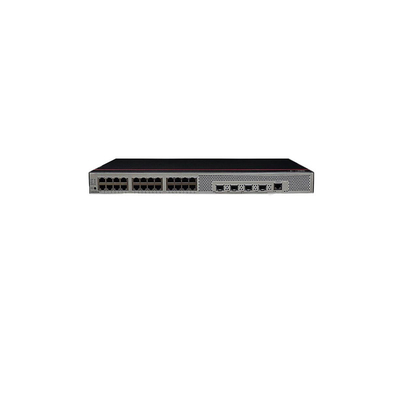

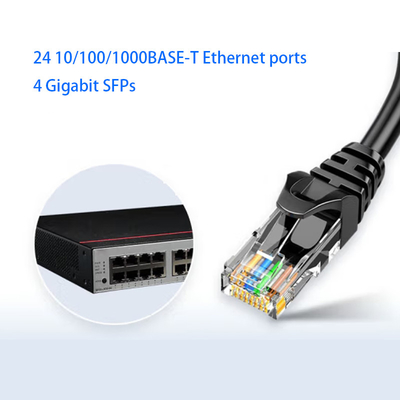

| describe | S5735S-L24T4S-QA2 (24 10/100/1000BASE-T Ethernet ports, 4 Gigabit SFPs, built-in AC power supply, fanless) |
| Component coding | 98012341 |
| model | S5735S-L24T4S-QA2 |
| Starting support version | V200R023C00 |

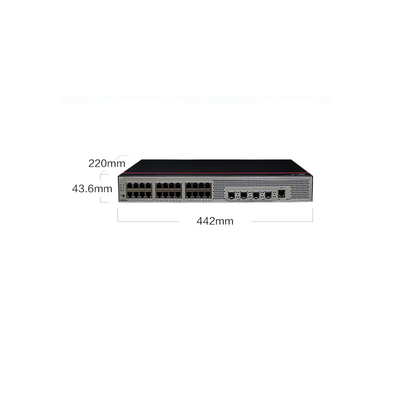

| Dimensions (width x depth x height, excluding packaging materials) [mm] | Basic size (depth excluding the distance of structural components protruding from the front and rear panels): 442.0mm × 220.0mm × 43.6mm |
| Maximum size (depth is the maximum distance from the protruding port of the front panel to the protruding structural member of the rear panel): 442.0mm × 227.0mm × 43.6mm | |
| Dimensions (width x depth x height, including packaging materials) [mm] | 550.0mm × 355.0mm × 90.0mm |
| Chassis height [U] | 1 |
| Weight (excluding packaging materials) [kg] | 3.13 |
| Weight (including packaging materials) [kg] | 3.56 |
| Typical power consumption [W] | 23.3 |
| Typical heat dissipation value [BTU/hour] | 79.5 |
| Maximum power consumption [W] | 27.2 |
| Maximum heat dissipation value [BTU/hour] | 92.81 |
| Static power consumption [W] | 11.4 |
| MTBF [years] | 40.86 |
| MTTR [hours] | 2 |
| Availability | >0.99999 |
| Room temperature noise (sound power) [dB (A)] | No fan, silent,<30 |
| Room temperature noise (sound pressure) [dB (A)] | No fan, silent,<20 |
| Number of card slots | 0 |
| Number of power slots | 0 |
| Number of fan modules | 0 |
| Long term working environment temperature [° C] | -5 ° C to+45 ° C (0m to 1800m altitude) |
| Temperature variation limit of working environment [° C] | From 1800m to 5000m, the maximum temperature specification decreases by 1 ° C for every 220m increase in altitude. |
| The device does not support starting when the ambient temperature is below 0 ° C. | |
| Storage temperature [° C] | -40 ° C to+70 ° C |
| Long term working environment relative humidity [RH] | 5% RH to 95% RH, non condensing |
| Long term working altitude [m] | 0m~5000m |
| Storage altitude [m] | 0m~5000m |
| Power supply system | Built-in AC power supply |
| Rated input voltage [V] | AC input: 100V AC~240V AC; 50/60Hz |
| Input voltage range [V] | AC input: 90V AC~264V AC; 45Hz~65Hz |
| Memory | 512MB |
| Flash | 512MB |
| Console interface type | RJ45 |
| Business interface lightning protection [kV] | Common mode ± 7kV (maximum support ± 10kV, equipment not damaged) |
| Power port lightning protection [kV] | Differential mode ± 6kV, common mode ± 6kV |
| Three protections (dustproof/waterproof) | IP20 |
| Fan type | No fan |
| Heat dissipation method | Natural heat dissipation |
| Product Certification | Support for EMC certification |
| Support for safety certification | |
| Support production certification | |
 |
|
|
|
|
|
|
|
|
|
