Product Details:
|
| Product Name: | Network Communication Switch | Brand Model Number: | Huawei Switch S5731S-H24T4XC-A |
|---|---|---|---|
| Number Of Ports: | 24 Gigabit Ethernet Ports | Port Type: | 24Gigabit Ethernet Ports 4 10 Gigabit SFP+ |
| Highlight: | S5731S-H24T4XC-A Huawei Network Switch,24 Ethernet Ports Huawei Network Switch |
||
Table 4-1444 lists the mapping between the S5731S-H24T4XC-A chassis and software versions.
|
Series |
Model |
Software Version |
|---|---|---|
| S5731S-H | S5731S-H24T4XC-A |
02352YRG: V200R019C00 and later versions 02352YRG-001: V200R020C10 and later versions 02352YRG-003: V200R021C10SPC600 and later versions (If V200R021C10SPC500 is used, install V200R021HP0121 or a later patch. If V200R021C00SPC100 is used, install V200R021SPH013 or a later patch.) |

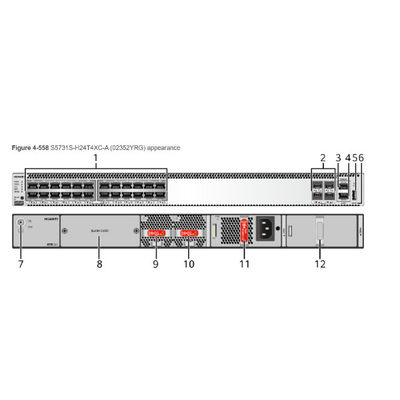

| 1 | Twenty-four 10/100/1000BASE-T ports | 2 |
Four 10GE SFP+ ports Applicable modules and cables:
|
| 3 | One console port | 4 | One ETH management port |
| 5 | One USB port | 6 |
One PNP button NOTICE:
To restore the factory settings and reset the switch, hold down the button for at least 6 seconds. To reset the switch, press the button. Resetting the switch will cause service interruption. Exercise caution when you press the PNP button. |
| 7 |
Ground screw NOTE:
It is used with a ground cable.
|
8 |
Rear card slot NOTE:
Applicable card:
|
| 9 |
Fan module slot 1 NOTE:
Applicable fan module: FAN-023A-B (Fan box(B,FAN panel side exhaust)) |
10 |
Fan module slot 2 NOTE:
Applicable fan module: FAN-023A-B (Fan box(B,FAN panel side exhaust)) |
| 11 |
Power module slot 1 NOTE:
Applicable power module:
|
12 |
Power module slot 2 NOTE:
Applicable power module:
|
10/100/1000BASE-T port
10GE SFP+ optical port
Console port
ETH management port
USB port
USB flash drives from different vendors differ in model compatibility and drivers. If a USB flash drive cannot be used, try to replace it with another one from a mainstream vendor. Switches support a maximum of 128 GB USB flash drives.
The S5731S-H24T4XC-A has similar indicators to those on the S5731-H48P4XC except that the S5731S-H24T4XC-A does not have a PoE mode indicator. For details, see Indicator Description.
The switch can use a single power module or double power modules for 1+1 power redundancy. Pluggable AC and DC power modules can be used together in the same switch. However, the power modules with natural heat dissipation and the power modules with fan cannot be used at the same time.
The S5731S-H24T4XC-A uses pluggable fan modules for forced air cooling. Air flows in from the front side and exhausts from the rear panel.
This figure only shows the airflow direction and does not depict the actual device.
Table 4-1449 lists technical specifications of the S5731S-H24T4XC-A.
|
Item |
Description |
|---|---|
| Memory (RAM) | 4 GB |
| Flash | 1 GB in total. To view the available flash memory size, run the display version command. |
| Mean time between failures (MTBF) | 57.73 years |
| Mean time to repair (MTTR) | 2 hours |
| Availability | > 0.99999 |
| Service port surge protection | Common mode: ±6 kV |
| Power supply surge protection |
|

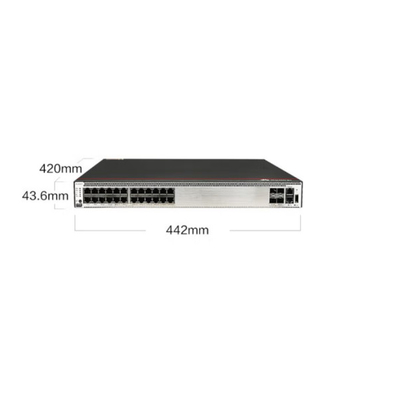

| Dimensions (H x W x D) |
|
| Weight (with packaging) | 9.35 kg (20.61 lb) |
| Stack ports | 10GE SFP+ ports on the front panel, or ports on the rear card |
| RTC | Supported |
| RPS | Not supported |
| PoE | Not supported |
| Rated voltage range |
|
| Maximum voltage range |
|
| Maximum power consumption (100% throughput, full speed of fans) | 114 W (without card) |
| Typical power consumption (30% of traffic load, tested according to ATIS standard) | 88 W (without card) |
| Operating temperature |
-5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)
NOTE:
When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). The switch cannot be started when the ambient temperature is lower than 0°C (32°F). |
| Storage temperature | -40°C to +70°C (-40°F to +158°F) |
| Noise under normal temperature (27°C, sound power) | < 57.5 dB(A) |
| Relative humidity | 5% to 95%, noncondensing |
| Operating altitude | 0-5000 m (0-16404 ft.) |
| Certification |
|
| Part number |
02352YRG 02352YRG-001 02352YRG-003 |
