Product Details:
|
Product Name: | Network Communication Switch | Brand Model Number: | Huawei SwitchS5731S-S24P4X |
---|---|---|---|
Number Of Ports: | 24 Gigabit Ethernet Ports | Port Type: | 24 Gigabit Ethernet Ports 4 10 Gigabit SFP+ |
Highlight: | Huawei S5731S-S24P4X Datacom Switches,24 Port Datacom Switches,Datacom Huawei Switch 24 Port |
Table 4-1327 lists the mapping between the S5731S-S24P4X-A chassis and software versions.

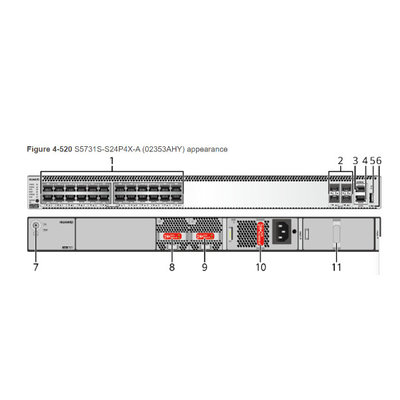

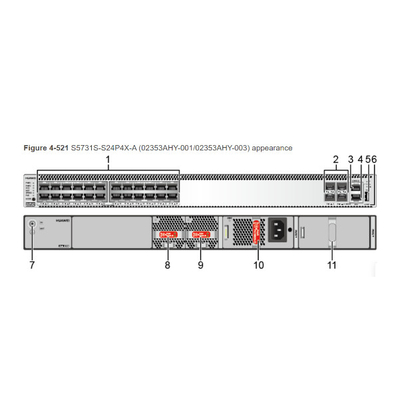

10/100/1000BASE-T port
10GE SFP+ optical port
Console port
ETH management port
USB port
USB flash drives from different vendors differ in model compatibility and drivers. If a USB flash drive cannot be used, try to replace it with another one from a mainstream vendor. Switches support a maximum of 128 GB USB flash drives.
The S5731S-S24P4X-A has the same types of indicators as the S5731S-S48P4X-A. For details, see Indicator Description.
The switch is a PoE switch and supports two power module slots, each of which can have a 1000 W PoE or 600 W PoE power module installed. Pluggable AC and DC PoE power modules can be used together in the same switch.
Power Module 1 |
Power Module 2 |
Available PoE Power |
Maximum Number of Ports (Fully Loaded) |
---|---|---|---|
1000 W AC (220 V) 1000 W DC |
– | 760 W |
|
1000 W AC (110 V) | – | 665 W |
|
1000 W AC (220 V) 1000 W DC |
1000 W AC (220 V) 1000 W DC |
1600 W |
|
1000 W AC (110 V) 1000 W DC |
1000 W AC (110 V) |
Versions earlier than V200R021C10: 1330 W V200R021C10 and later versions: 1520 W |
|
600 W AC (220 V) | – | 380 W |
|
600 W AC (110 V) | – | 95 W |
|
600 W AC (220 V) | 600 W AC (220 V) | 950 W |
|
600 W AC (110 V) | 600 W AC (110 V) | 380 W |
|
1000 W AC (220 V) 1000 W DC |
600 W AC (220 V) | 1330 W |
|
When a switch has two power modules installed, the two power modules work in redundancy mode to provide power for the chassis and in load balancing mode to provide power for PDs.
The S5731S-S24P4X-A uses pluggable fan modules for forced air cooling. Air flows in from the front side and exhausts from the rear panel.
Table 4-1333 lists technical specifications of the S5731S-S24P4X-A.
Item |
Description |
---|---|
Memory (RAM) | 2 GB |
Flash | 1 GB in total. To view the available flash memory size, run the display version command. |
Mean time between failures (MTBF) | 57.21 years |
Mean time to repair (MTTR) | 2 hours |
Availability | > 0.99999 |
Service port surge protection | Common mode: ±6 kV |
Power supply surge protection |
|
Dimensions (H x W x D) |
|
Weight (with packaging) | 9.7 kg (21.38 lb) |
Stack ports | 10GE SFP+ ports on the front panel |
RTC | Supported |
RPS | Not supported |
PoE | Supported |
Rated voltage range |
|
Maximum voltage range |
|
Maximum power consumption (100% throughput, full speed of fans) |
|
Typical power consumption (30% of traffic load, tested according to ATIS standard) | 95 W |
Operating temperature |
-5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)
NOTE:
When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). The switch cannot be started when the ambient temperature is lower than 0°C (32°F). |
Storage temperature | -40°C to +70°C (-40°F to +158°F) |
Noise under normal temperature (27°C, sound power) | < 62.3 dB(A) |
Relative humidity | 5% to 95%, noncondensing |
Operating altitude | 0-5000 m (0-16404 ft.) |
Certification |
|
Part number |
02353AHY 02353AHY-001 02353AHY-003 |
