Product Details:
|
| Switching Capacity:: | 104Gbps | Box Switching: | 598Gbps |
|---|---|---|---|
| Packet Forwarding Rate::: | 78 Mpp | CPU::: | 1 Core, 800MHz |
| Flash/SDRAM::: | 512MB/512MB | Management Ethernet Ports:: | 1 |
| Highlight: | LS-S5120V2-20P-LI H3c Server,20 Ports H3c Server,LS-S5120V2-20P-LI Server H3c |
||
S-S5120V2-20P-LI H3C 16 Gigabit electrical ports 4 Gigabit optical ports Layer 2 enterprise-level series switch

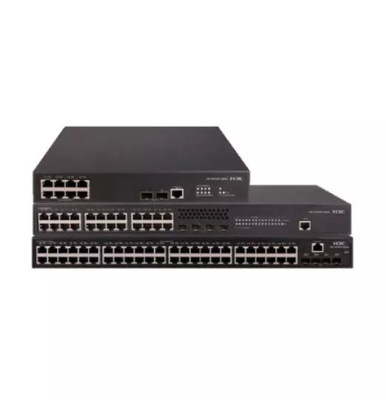

H3C S5120V2-LI Gigabit Access Switch Series
H3C S5120V2-LI is the latest development of Gigabit Layer 2 access switch. It’s the second generation intelligent managed switches designed for networks requiring high performance, high port density and easy to use.
H3C S5120V2-LI series switch offers Gigabit connectivity with10/100/1000 autosensing ports and SFP optical uplink ports.
H3C S5120V2-LI series switch includes eight models as follows:
S5120V2-10P-LI:8 *10/100/1000TX+ 2*SFP
S5120V2-20P-LI:16*10/100/1000TX+ 4*SFP
S5120V2-28P-LI:24 *10/100/1000TX+ 4*SFP
S5120V2-52P-LI:48*10/100/1000TX+ 4*SFP
S5120V2-10P-PWR-LI:8 *10/100/1000TX+ 2*SFP
S5120V2-28P-PWR-LI:24 *10/100/1000TX+ 4*SFP
S5120V2-28P-HPWR-LI:24*10/100/1000 BASE-T + 4*SFP + 4*10/100/1000 BASE-T COMBO
S5120V2-52P-PWR-LI:48*10/100/1000TX+ 4*SFP
Specification
| Feature | S5120V2 -10P-LI |
S5120V2 -20P-LI |
S5120V2 -28P-LI |
S5120V2 -52P-LI |
S5120V2 -10P- PWR-LI |
S5120V2 -28P- PWR-LI |
S5120V2 -28P- HPWR-LI |
S5120V2 -52P- PWR-LI |
| Switching capacity | 20Gbps | 40Gbps | 56Gbps | 104Gbps | 20Gbps | 56Gbps | 56Gbps | 104Gbps |
| Packet forwarding rate | 15Mpps | 30Mpps | 41.7Mpps | 77.4Mpps | 15Mpps | 41.7Mpps | 41.7Mpps | 77.4Mpps |
Dimensions (H × W × D) |
43.6× 266 × 161 mm |
43.6× 330 × 230 mm |
43.6× 440 × 160 mm |
43.6× 440 × 230 mm |
43.6× 330 × 230 mm |
43.6× 440 × 260 mm |
43.6× 440 × 260 mm |
43.6× 440 × 260 mm |
| Weight | ≤ 1.5kg | ≤ 2kg | ≤ 2.5kg | ≤ 3.5kg | ≤ 3kg | ≤ 4kg | ≤ 4.5kg | ≤ 6kg |
| Console ports | 1 | |||||||
Fixed ports |
8*10/100 /1000TX |
16*10/10 0/1000TX |
24*10/10 0/1000TX |
48*10/10 0/1000TX |
8*10/100 /1000TX |
24*10/10 0/1000TX |
24*10/10 0/1000TX +4*10/100/ 1000 BASE-T Combo |
48*10/10 0/1000TX |
| +2*SFP | +4*SFP | +4*SFP | +4*SFP | +2*SFP | +4*SFP | + 4*SFP | +4*SFP | |
Input voltage range |
100 VAC to 240 VAC @ 50 Hz/60 Hz |
AC: 100-240V @50/60Hz | ||||||
| DC: -48V~-60V | ||||||||
Power consumption |
MIN: 7W MAX: 12W |
MIN: 9W MAX: 19W |
MIN: 9W MAX: 23W |
MIN: 18W MAX: 41W |
MIN: 13W MAX:153W (PoE 125W) |
MIN: 19W MAX: 240W(PoE 170W) |
MIN: AC: 23W DC: 16W MAX: AC: 446W (PoE 370W) DC: 790W(PoE 740W) |
MIN: AC: 36W DC: 26W MAX: AC: 467W (PoE 370W) DC: 807W(PoE 740W) |
| Operating temperature | 0ºC to 45ºC | |||||||
| Operating humidity | 10% RH to 95% RH, non-condensing | |||||||
| Stacking | Intelligent Resilient Framework 2 (IRF2) | |||||||
Link aggregation |
1G/10GE port aggregation Static aggregation Dynamic aggregation Multichassis link aggregation |
|||||||
| Jumbo frame | Supported | |||||||
| MAC address table | Blackhole MAC Address MAC learning limit | |||||||
| Flow control | 802.3x flow control and half-duplex backpressure | |||||||
VLAN |
Port-based VLAN QinQ Voice VLAN MAC VLAN |
|||||||
| ARP | ARP Detection ARP speed limit |
|||||||
| ND | Supported | |||||||
| VLAN virtual port | Supported | |||||||
DHCP |
DHCP Client DHCP Snooping DHCP Relay DHCP Server DHCP Option82 |
|||||||
| DNS | Static and Dynamic DNS IPV4 and IPV6 | |||||||
| Routing protocols | IPV4/IPV6 static routing RIP/ RIPng, OSPFV1/V2/V3 | |||||||
| Multicast | IGMP Snooping V1/V2/V3 MVR |
|||||||
| Strom suppression | Storm suppression based on port bandwidth percentage Storm suppression based on PPS | |||||||
Layer 2 ring network protocol |
STP/RSTP/MSTP STP Root Protection Smart Link RRPP |
|||||||
| Mirroring | Flow mirroring Port mirroring |
|||||||
QoS/ACL |
Packet filter Flexible queue scheduling algorithms based on ports and queues, including SP, WRR and SP+WRR Bidirectional ACL Port-based speed limit Flow redirection Time-range |
|||||||
Security |
Hierarchical user management and password protection MAC- based authentication 802.1X SSH2.0 Port isolation IP source guard HTTPs EAD |
|||||||
| IEEE | IEEE 802.3x IEEE 802.3ad IEEE 802.3af IEEE 802.3at IEEE 802.1p IEEE 802.1x IEEE 802.1q IEEE 802.1d IEEE 802.1w IEEE 802.1s |
|||||||
| Loading and upgrading | Loading and upgrading through FTP/TFTP | |||||||
Management and maintenance |
Configuration from CLI Login through Telnet, and the console port Simple Network Management Protocol(SNMP) Remote Monitoring (RMON) IMC network management system WEB management System log Alarming based on severity IRF NTP Debugging information output Telnet-based remote maintenance NQA DLDP Virtual Cable Test |
|||||||
Notices:
1. Open the packaging, check the products carefully, and take them gently.
2. The product is a brand new original unopened equipment.
3. All products 1 year warranty, and the buyer is responsible for the return shipping cost.
International Buyers Please Note:
Import duties, taxes, and charges are not included in the item price or shipping cost. These charges are the buyer's responsibility.
Please check with your country's customs office to determine what these additional costs will be prior to bidding or buying.
Customs fees are normally charged by the shipping company or collected when you pick the item up. These fees are not additional shipping charges.
We won't under-value merchandise or mark the item as a gift on customs forms. Doing that is against U.S. and international laws.
Customs delays are not the responsibility of the seller.
