Product Details:
|
| Switching Capacity: | 104Gbps | Box Switching Capacity: | 598Gbps |
|---|---|---|---|
| Packet Forwarding Rate:: | 78 Mpps | CPU:: | 1 Core, 800MHz |
| Flash/SDRAM:: | 512MB/512MB | Management Ethernet Ports: | 1 |
| Highlight: | H3C Robust Server,S5560S-52P-EI Robust Server |
||

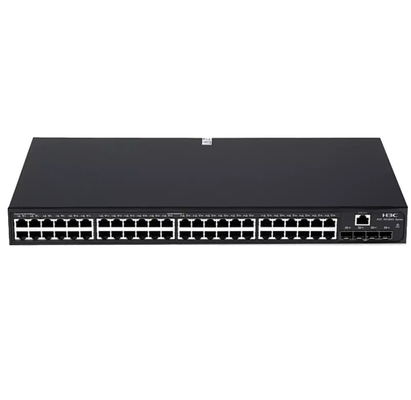

H3C S5560S-52P-EI Provides 48 × 10/100/1000BASE-T ports and 4 × SFP ports enterprise-class Ethernet switch
H3C S5560S-EI Switch Series is robust (modular dual power), and easy to deploy Layer 3 access switching solution that offers enhanced security and 10GbE uplinks, BGP and Multicast, SDN and IRF enabled, flexible management.
It offers the following benefits:
Rich layer 3 features with H3C's state-of-the-art Comware 7 operating system.
Reliable hardware design with modular dual power supply.
Embedded SmartMC delivers the easiest and simplest network operation and management solution.
High-density 10/100/1000Base-T autosensing Ethernet ports and GE/10GE SFP + fiber ports onboard
As an access device on enterprise networks, this switch can provide high-density GE connections for desktop applications.
S5560S-52P-EI—Provides 48 × 10/100/1000BASE-T ports and 4 × SFP ports.
Specification
| tem | S5560S-52P-EI |
| Port Switching capacity | 104Gbps |
| Box Switching capacity | 598Gbps |
| Packet forwarding rate | 78 Mpps |
| CPU | 1 Core, 800MHz |
| Dimensions (H × W × D) | 43.6 × 440 × 360 mm (1.72 × 17.32 × 14.17 in) |
| Weight | ≤ 8.5 kg (18.74 lb) |
| Flash/SDRAM | 512MB/512MB |
| Management Ethernet ports | 1 |
| Console ports | 1 × RJ-45 console port |
| 1 × Micro-USB port | |
| Only the Micro-USB port is available if you connect both ports. | |
| Service ports | 48 × 10/100/1000Base-T autosensing Ethernet ports |
