Product Details:
|
| Switch Models:: | Brocade 6050 | B-L Performance: | 16Gfiber Optic Transmission |
|---|---|---|---|
| Maximum Ports: | 12-port Base | Base Chassis: | 1U |
| Highlight: | San 24 Port Fibre Switch,16gb 24 Port Fibre Switch,8gb Brocade 6505 Fiber Switch |
||
Description
| Fibre Channel Switch: | Brocade 6505 Switch | Fibre Channel Switch: | Brocade 6505 Fibre Channel Switch |
|---|---|---|---|
| Fiber Optic Transmission: | 16Gfiber Optic Transmission | Number Of Ports: | Brocade FC Switches 16G 24PORT |
| High Light: |
Storage Area Network Fibre Channel Switch,SAN 32gb Fibre Channel Switch,64gb 6510 Brocade Fibre Channel Switch |
||
|

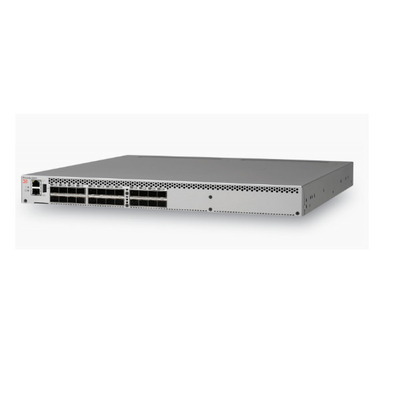

Brocade 6505 10 Specifications |
|
| Fiber Channel port | Switch mode (default): 24, port configurations (Expandable via Port on Demand [PoD] license to 12-port port increments); common (E, F, M, D, EX) ports Brocade Access Gateway (Access Gateway) Default Port Port mapping: 40 F_Ports, 8 N_Ports |
| scalability | Full-featured Fabric architecture with up to 239 switches change machine |
| Standard maximum support | 6000 active nodes in Brocade Fabric OS® Fabric nodes, 56 switches, and 19 hops; Brocade 31 switches and 3 hops in the M-EOS Fabric architecture; Larger fabrics can be configured on demand |
| performance | 2, 4, 8, and 16 Gbps port rate auto-negotiation; 10 Gbps,It can also be optionally programmed to a fixed port speed. |
| ISL Trunking | Frame-based trunking, up to 8 links per ISL trunk 16 Gbps ports; up to 128 per ISL trunk Gbps throughput. Using the included in Fabric OS DPS implements switch-based cross-ISL load balancing. Opposite There is no limit to the number of link bundling groups that can be configured in the switch. |
| total bandwidth | 68 Gbps end-to-end full-duplex bandwidth |
| Maximum Fabric Latency | Locally switched port latency is 700 ns; encryption/compression latency 5.5 µsec per node; forward error correction between E_Ports (FEC) adds 400 ns (enabled by default). |
| Maximum frame | 2112 bytes payload |
| framebuffer | 8192, dynamic allocation |
| Class of service | Class 2, Class 3, Class F (inter-switch frame) |
| Port Type | D_Port (Diagnostic Port), E_Port, EX_Port, F_Port Port, M_Port (mirror port); based on switch type self-discovery (U_Port); optional port type control Brocade Access Gateway Mode: F_Port and Branch N_Port with NPIV Technology |
| Data traffic type | Fabric switches support unicast traffic |
| Media Type | Hot-swappable, industry-standard Small Form-Factor Pluggable (SFP+), LC Connector; Shortwave (SWL); Long wave (LWL); extra long wave (ELWL); maximum distance depends on Fiber optic cable type and port speed. Supports SFP+ (2, 4, 8, 10 and 16 Gbps) optical transceivers. |
| USB port | 1 USB port for system log file download or microcode upgrade |
| Fabric architecture service | Brocade Advanced Performance Monitoring (APM) (includes E_Ports, F_ Top users of Ports and Fabric patterns); Brocade applies Responsive network (inbound rate limiting, traffic isolation, QoS); Bottleneck detection; Brocade advanced partitioning (default partition, port/ WWN Zoning, Broadcast Zoning); Dynamic Fabric Provisioning (DFP); Dynamic Path Selection (DPS); Extended Fabrics; Enhanced BB Credit Restoration; Brocade Fabric Watch; FDMI; Frame redirection; Frame-based link bundling; FSPF; integrated routing; IPoFC; ISL Trunking; Management Server; NPIV; NTP v3; Port Fencing; Registration Status Change Notification (RSCN); Reliable Commit Service (RCS); the server should Application Optimization (SAO); Simple Name Server (SNS); Virtual Quasi-Fabrics Architecture (Logical Switches, Logical Fabrics architecture |
| expand | Fiber Channel, "In-flight" compression (Brocade LZO) and encryption (AES-GCM-256); for DWDM MAN 10 Gbps Fiber Channel connected |
| FICON FICON | FICON® Stacking; lossless DLS support; FICON CUP |
| manage | |
| Supported Management Software | Supported management software HTTP, SNMP v1/v3 (FE MIB, FC Management MIB), SSH; Audit, Syslog; Brocade Advanced Web Tools, APM, Brocade Fabric Watch; Brocade Network Advisor SAN Enterprise or Brocade Network Advisor SAN Professional/Professional Plus; command line interface (CLI); SMI-S compliant; domain; trial license for add-on functionality |
| safety | Security AES-GCM-256 encryption over ISL; DH-CHAP (exchange between machine and end device), FCAP switch authentication; FIPS 140-2 L2 compliant, HTTPS, IPsec, IP overlay filtering, LDAP with IPv6, port binding, RADIUS, user Defined role-based access control (RBAC), Secure Copy (SCP), Secure RPC, SFTP, SSH v2, SSL, switch binding, Trusted Switch |
| Management access | 10/100 Mbps Ethernet (RJ-45) interface over fiber optic Channels for in-band management, 1 serial port (RJ-45), 1 USB mouth |
| Diagnostics | D_Port offline diagnostics, including electrical/optical loopback, link traffic/ Delay/distance; POST and embedded online/offline diagnostics, including including environmental monitoring, FCping and Pathinfo (FC traceroute), Frame Viewer, Non-destructive Daemon Reboot, Port Mirror like (SPAN ports), fiber optic component health monitoring, power Monitoring, RAStrace logs, and Rolling Reboot Detection (RRD) |
| Mechanical parameters | |
| shell | Enclosure Front and rear ventilation; rear power supply, 1U Rear-front ventilation; rear-end power supply, 1U |
| size | Dimensions Width: 438 mm (17.23 in) Height: 43 mm (1.7 in) Depth: 443 mm (17.45 inches) |
| System weight | 9.16 kg (20.20 lbs), dual power FRUs, no transceivers |
| environment | |
Operating environment |
Temperature: 0 to 40°C Humidity: 10% to 85%, non-condensing |
| Non-operating ambient | temperature: -25 to 70°C Humidity: 10% to 90%, non-condensing |
Notices:
1. Open the packaging, check the products carefully, and take them gently.
2. The product is a brand new original unopened equipment.
3. All products 1 year warranty, and the buyer is responsible for the return shipping cost.
International Buyers Please Note:
Import duties, taxes, and charges are not included in the item price or shipping cost. These charges are the buyer's responsibility.
Please check with your country's customs office to determine what these additional costs will be prior to bidding or buying.
Customs fees are normally charged by the shipping company or collected when you pick the item up. These fees are not additional shipping charges.
We won't under-value merchandise or mark the item as a gift on customs forms. Doing that is against U.S. and international laws.
Customs delays are not the responsibility of the seller.
