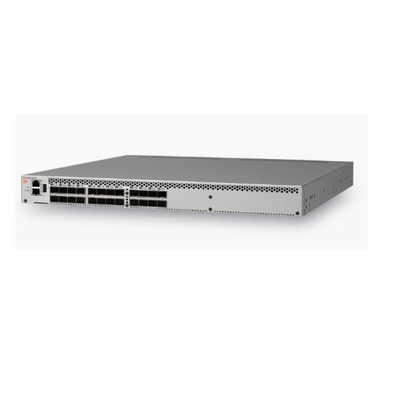

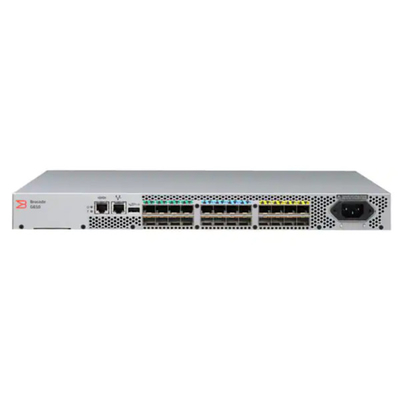

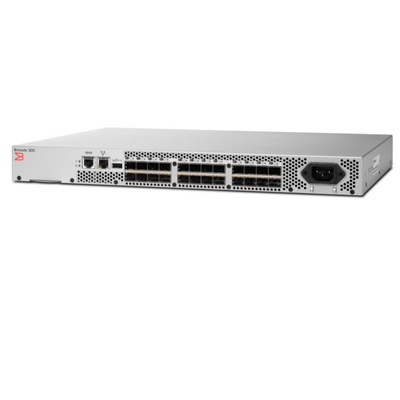

Product Details:
|
| Switch Models:: | Brocade300 Switch | B-L Performance: | 8Gb/s SFPs Can Operate At 32, 16 Or 8Gb/s; 16Gb/s SFPs Will Operate At 8, 8 And 4Gb/s |
|---|---|---|---|
| Maximum Ports: | 8-port Base | Base Chassis: | 1U |
| Management Access: | 10/100 Mbps Ethernet (RJ-45) Interface Over Fiber Optic Channels For In-band Management, 1 Serial Port (RJ-45), 1 USB Mouth | Size: | Dimensions Width: 438 Mm (17.23 In) Height: 43 Mm (1.7 In) Depth: 443 Mm (17.45 Inches) |
| Highlight: | 8 Gb Brocade 300 Fibre Channel Switch,16 Gb Fibre Channel Switch,Brocade 300 San Fiber Switch |
||
| Brocade 300 Specifications | |
| Fiber Channel port | Switch mode (default): 24port configurations (Expandable via Port on Demand [PoD] license to 12-port port increments); common (E, F, M, D, EX) ports Brocade Access Gateway (Access Gateway) Default Port Port mapping: 40 F_Ports, 8 N_Ports |
| scalability | Full-featured Fabric architecture with up to 239 switches change machine |
| Standard maximum support | 6000 active nodes in Brocade Fabric OS® Fabric nodes, 56 switches, and 19 hops; Brocade 31 switches and 3 hops in the M-EOS Fabric architecture; Larger fabrics can be configured on demand |
| performance | 2, 4, 8, and 16 Gbps port rate auto-negotiation; 10 Gbps,It can also be optionally programmed to a fixed port speed. |
| ISL Trunking | Frame-based trunking, up to 8 links per ISL trunk 16 Gbps ports; up to 128 per ISL trunk Gbps throughput. Using the included in Fabric OS DPS implements switch-based cross-ISL load balancing. Opposite There is no limit to the number of link bundling groups that can be configured in the switch. |
| total bandwidth | 68 Gbps end-to-end full-duplex bandwidth |
| Maximum Fabric Latency | Locally switched port latency is 700 ns; encryption/compression latency 5.5 µsec per node; forward error correction between E_Ports (FEC) adds 400 ns (enabled by default). |
| Maximum frame | 2112 bytes payload |
| framebuffer | 8192, dynamic allocation |
| Class of service | Class 2, Class 3, Class F (inter-switch frame) |
| Port Type | D_Port (Diagnostic Port), E_Port, EX_Port, F_Port Port, M_Port (mirror port); based on switch type self-discovery (U_Port); optional port type control Brocade Access Gateway Mode: F_Port and Branch N_Port with NPIV Technology |
| Data traffic type | Fabric switches support unicast traffic |
| Media Type | Hot-swappable, industry-standard Small Form-Factor Pluggable (SFP+), LC Connector; Shortwave (SWL); Long wave (LWL); extra long wave (ELWL); maximum distance depends on Fiber optic cable type and port speed. Supports SFP+ (2, 4, 8, 10 and 16 Gbps) optical transceivers. |
| USB port | 1 USB port for system log file download or microcode upgrade |
| Fabric architecture service | Brocade Advanced Performance Monitoring (APM) (includes E_Ports, F_ Top users of Ports and Fabric patterns); Brocade applies Responsive network (inbound rate limiting, traffic isolation, QoS); Bottleneck detection; Brocade advanced partitioning (default partition, port/ WWN Zoning, Broadcast Zoning); Dynamic Fabric Provisioning (DFP); Dynamic Path Selection (DPS); Extended Fabrics; Enhanced BB Credit Restoration; Brocade Fabric Watch; FDMI; Frame redirection; Frame-based link bundling; FSPF; integrated routing; IPoFC; ISL Trunking; Management Server; NPIV; NTP v3; Port Fencing; Registration Status Change Notification (RSCN); Reliable Commit Service (RCS); the server should Application Optimization (SAO); Simple Name Server (SNS); Virtual Quasi-Fabrics Architecture (Logical Switches, Logical Fabrics architecture |
| expand | Fiber Channel, "In-flight" compression (Brocade LZO) and encryption (AES-GCM-256); for DWDM MAN 10 Gbps Fiber Channel connected |
| FICON FICON | FICON® Stacking; lossless DLS support; FICON CUP |
| manage | |
| Supported Management Software | Supported management software HTTP, SNMP v1/v3 (FE MIB, FC Management MIB), SSH; Audit, Syslog; Brocade Advanced Web Tools, APM, Brocade Fabric Watch; Brocade Network Advisor SAN Enterprise or Brocade Network Advisor SAN Professional/Professional Plus; command line interface (CLI); SMI-S compliant; domain; trial license for add-on functionality |
| safety | Security AES-GCM-256 encryption over ISL; DH-CHAP (exchange between machine and end device), FCAP switch authentication; FIPS 140-2 L2 compliant, HTTPS, IPsec, IP overlay filtering, LDAP with IPv6, port binding, RADIUS, user Defined role-based access control (RBAC), Secure Copy (SCP), Secure RPC, SFTP, SSH v2, SSL, switch binding, Trusted Switch |
| Management access | 10/100 Mbps Ethernet (RJ-45) interface over fiber optic Channels for in-band management, 1 serial port (RJ-45), 1 USB mouth |
| Diagnostics | D_Port offline diagnostics, including electrical/optical loopback, link traffic/ Delay/distance; POST and embedded online/offline diagnostics, including including environmental monitoring, FCping and Pathinfo (FC traceroute), Frame Viewer, Non-destructive Daemon Reboot, Port Mirror like (SPAN ports), fiber optic component health monitoring, power Monitoring, RAStrace logs, and Rolling Reboot Detection (RRD) |
| Mechanical parameters | |
| shell | Enclosure Front and rear ventilation; rear power supply, 1U Rear-front ventilation; rear-end power supply, 1U |
| size | Dimensions Width: 438 mm (17.23 in) Height: 43 mm (1.7 in) Depth: 443 mm (17.45 inches) |
| System weight | 9.16 kg (20.20 lbs), dual power FRUs, no transceivers |
| environment | |
Operating environment |
Temperature: 0 to 40°C Humidity: 10% to 85%, non-condensing |
| Non-operating ambient | temperature: -25 to 70°C Humidity: 10% to 90%, non-condensing |
