Product Details:
|
| Computing:: | 4 × Intel® Xeon® Scalable Processors (Up To 28 Cores And Maximum 205 W Power Consumption) | Memory:: | 48 × DDR4 DIMMs, 6.0 TB (maximum) |
|---|---|---|---|
| Storage Controller: | Embedded RAID Controller (SATA RAID 0, 1, 5, And 10) | FBWC:: | 8 GB DDR4-2666 |
| Storage:: | Maximum Front 24SFF + Rear 2SFF, Support SAS/SATA HDD/SSD Drives | PCIe Slots: | 11 × PCIe 3.0 Slots (one Dedicated Slot For Ethernet Adapter,6 X FH Slots,8 X PCIe X16 |
| Highlight: | UniServer R6700 G3 8gb Server,48 DDR4 8gb Server |
||
26 SFF Drive Storages Server,26 SFF Drives Storage UniServer R6700,UniServer R6700 G3 48 DDR4 4 Socket |

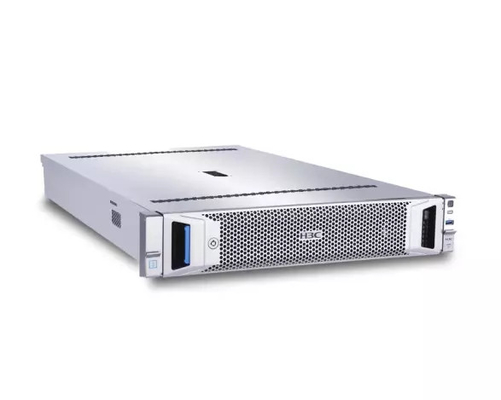

H3C UniServer R6700 G3 2U 4 socket rack Server 48 DDR4 high density storage server supports up to 26 SFF drives

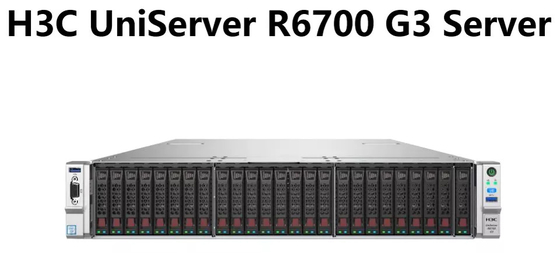

H3C UniServer R6700 G3 Server
New generation H3C UniServer R6700 G3 adopt a high density architecture to provide outstanding performance with 4 sockets and achieve high reliability and flexibility within only 2U rack. This model supports up to 26 SFF drives include optional 18 NVMe SSD drives. R6700 G3 server features Enterprise-grade RAS make it a decent choice for core workload,virtualization,Database,data-processing and high-density computing application.
H3C UniServer R6700 G3 utilizes the most recent 2nd generation Intel® Xeon® scalable processor. With 11 x PCIe3.0 I/O slot to reach excellent IO scalability. 94%/96% power efficiency and 5～45℃ standard Operating temperature Provide users with higher energy efficiency returns.
You can use the R6700 G3 to support the following services:
- Virtualization — Support multiple types of workloads on a single server to save space
- Big Data — Manage exponential growth of structured, unstructured, and semi-structured data.
- Applications centered on storage — Remove I/O bottleneck and improve performance
- Data warehouse/analysis — Query data on demand to help service decision
- Customer relationship management (CRM) — Help you to gain comprehensive insights into business data to improve customer satisfaction and loyalty
- Enterprise resource planning (ERP) — Trust the R6700 G3 to help you manage services in real time
- Virtual desktop infrastructure (VDI) — Deploys remote desktop service to bring great office agility and enable telecommuting with any device anywhere anytime
- High-performance computing and deep learning — Provide 3 dual-slot wide GPU modules in a 2U footprint, meeting the requirements of machine learning and AI applications
The R6700 G3 supports Microsoft® Windows® and Linux operating systems, as well as VMware and H3C CAS and can operate perfectly in heterogeneous IT environments.
Specification
| Computing |
4 × Intel® Xeon® Scalable processors (Up to 28 cores and maximum 205 W power consumption) |
| Memory |
48 × DDR4 DIMMs, 6.0 TB (maximum) (Up to 2933 MT/s data transfer rate and support for both RDIMM and LRDIMM) (Up to 24 Intel ® Optane™ DC Persistent Memory Module.(DCPMM) |
| Storage controller |
Embedded RAID controller (SATA RAID 0, 1, 5, and 10) Standard PCIe HBA cards and storage controllers (Optional) |
| FBWC | 8 GB DDR4-2133MHz |
| Storage |

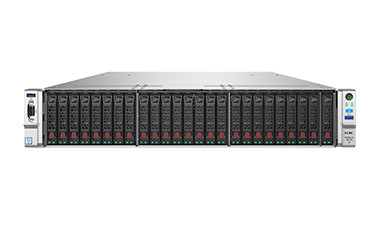

Maximum Front 24SFF + rear 2SFF, Support SAS/SATA HDD/SSD Drives Maximum 16 front UniBay Slots,Rear 2 x UniBay Slots,Support SAS/SATA/NVMe Drives SATA M.2 SSDs (Optional) 2 × SD internal slots (Optional) |
| Network |
1 × onboard 1 Gbps management network port 2 × onboard 1 Gbps network port Support sLOM 4 × 1GE copper ports or 2 × 10GE/2 x 25GE fiber ports, sLOM support NCSI function Support Standard PCIe 3.0 Ethernet Adapters Support 10/25/40/100GE/IB/OPA High-performance Ethernet Adapter, Support FC-HBA SAN Adapter |
| PCIe slots | 11 × PCIe 3.0 slots (one dedicated slot for Ethernet adapter,6 x FH slots,8 x PCIe x16 slots) |
| Ports |

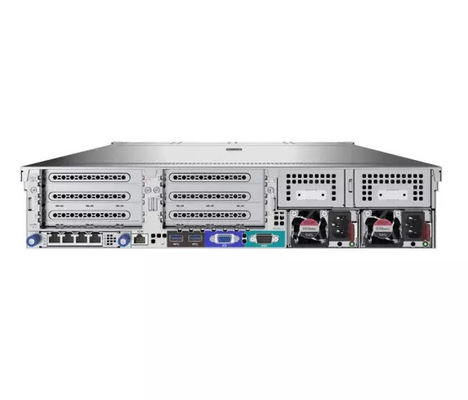

Front VGA connector Rear VGA connector and serial port(RJ-45) 5 × USB 3.0 connectors (one at the front, two at the rear, and two in the server) 1 × USB 2.0 front connector SFF Liquid Crystal Display Module (Optional) |
| GPU | 8 × single-slot wide GPU modules |
| Optical drive | External optical disk drive (Optional) |
| Management | HDM (with dedicated management port) and H3C FIST, Support LED/LCD screen*diagnostic panel |
| Security |
Support Chassis Intrusion Detection TPM2.0 |
| Power supply |
Platinum 1600W(supports 1+1 redundancy) , 800W –48V/336V DC power supplies (1+1 redundancy) Hot swappable fans (supports redundancy) |
| Standards | CE,UL , FCC,VCCI,EAC, etc. |
| Operating temperature |
5°C to 45°C (41°F to 113°F) The maximum operating temperature varies by server configuration. For more information, see the technical documentation for the device. |
| Dimensions (H × W × D) |
2U Height Without a security bezel: 87.5 × 445.4 × 748 mm (3.44 × 17.54 × 29.45 in) With a security bezel: 87.5 × 445.4 × 769 mm (3.44 × 17.54 × 30.28 in) |
