Product Details:
|
| Model: | FusionServer 5885H V5 | Form Factor: | 4U Rack Server |
|---|---|---|---|
| Processors: | 2 Or 4 1st Generation Intel® Xeon® Scalable Processors (5100/6100/8100 Series), Up To 205 W 2 Or 4 2nd Generation Intel® Xeon® Scalable Processors (5200/6200/8200 Series), Up To 205 W | Memory: | 48 DDR4 DIMM Slots, 2,933 MT/s; Up To 24 Intel® Optane™ PMem Modules (100 Series), 2666 MT/s |
| Internal Storage: | Supports Hot-swappable Hard Drives With The Following Configuration Options: • 8 X 2.5-inch SAS/SATA Hard Drives (front) • 24 X 2.5-inch SAS/SATA Hard Drives (front) • 25 X 2.5-inch SAS/SATA Hard Drives (front) • 16 X 2.5-inch SAS/SATA Hard Drives And | RAID: | RAID 0, 1, 5, 50, 6, Or 60; Optional Supercapacitor To Protect Cache Data From Power Failures; RAID Level Migration, Drive Roaming, Self-diagnosis, And Web-based Remote Configuration |
| Network Ports: | 2 X 10 GE + 2 X GE Ports | Power Supply: | 4 Hot-swappable PSUs With Optional 2+2 Redundancy. Supported Options Include: • 1,500W AC Platinum PSUs • 900W AC PSUs • 1,200W DC PSUs |
| Highlight: | 5885H V5 4U Huawei Fusion Server,48 DDR4 Huawei Fusion Server,4U Fusionserver 5885h V5 |
||

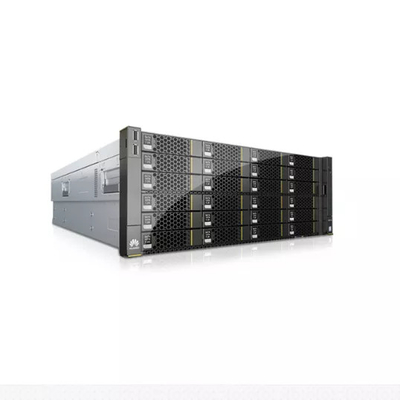

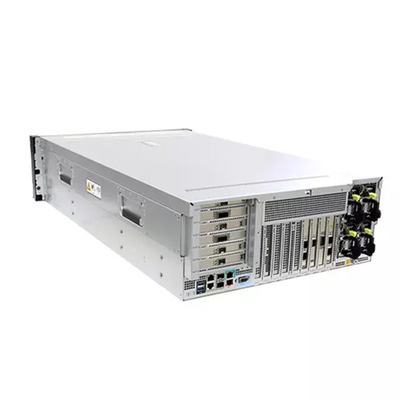

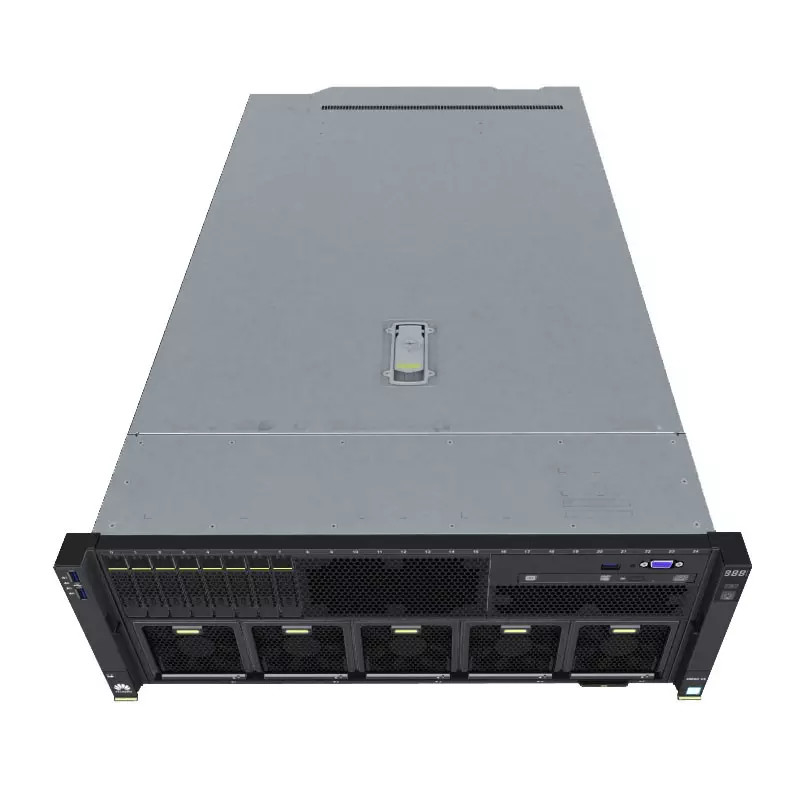

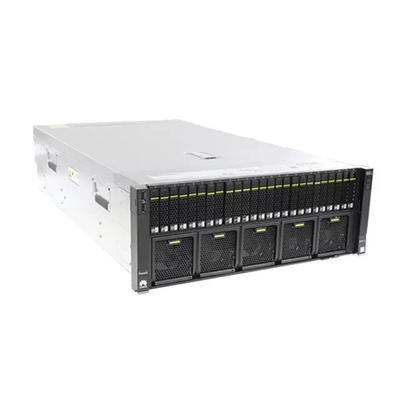

FusionServer 5885H V5 is a 4U, 4-socket rack server
Product Introduction
FusionServer 5885H V5 is a 4U, 4-socket rack server. It applies to mission-critical applications that demand high reliability and performance, and is ideal for compute-intensive services, such as virtualization, HPC, and databases. The 4U server can be configured with 48 DDR4 DIMMs , and 25 x 2.5-in. hard drives for local storage and supports a maximum of eight NVMe SSDs. It incorporates patented technologies, such as Dynamic Energy Management Technology (DEMT) and Fault Diagnosis & Management (FDM), and integrates FusionDirector software for entire-lifecycle management, helping customers drive down OPEX and improve ROI.
Technical Specifications
| Model | FusionServer 5885H V5 |
| Form Factor | 4U rack server |
| Processors |
2 or 4 1st Generation Intel® Xeon® Scalable processors (5100/6100/8100 series), up to 205 W 2 or 4 2nd Generation Intel® Xeon® Scalable processors (5200/6200/8200 series), up to 205 W |
| Memory | 48 DDR4 DIMM slots, 2,933 MT/s; up to 24 Intel® Optane™ PMem modules (100 series), 2666 MT/s |
| Internal Storage |
Supports hot-swappable hard drives with the following configuration options: • 8 x 2.5-inch SAS/SATA hard drives (front) • 24 x 2.5-inch SAS/SATA hard drives (front) • 25 x 2.5-inch SAS/SATA hard drives (front) • 16 x 2.5-inch SAS/SATA hard drives and 8 x 2.5-inch NVMe SSDs (front) • 24 x 2.5-inch NVMe SSDs (front) Flash storage: • Two M.2 SSDs |
| RAID | RAID 0, 1, 5, 50, 6, or 60; optional supercapacitor to protect cache data from power failures; RAID level migration, drive roaming, self-diagnosis, and web-based remote configuration |
| Network Ports | 2 x 10 GE + 2 x GE ports |
| PCIe Expansion |
• Up to 15 PCIe slots for 15 PCIe 3.0 slots • 2 dual-width full-height full-length GPU cards (PCIe 3.0 x16) or 4 full-height half-length GPU cards (PCIe 3.0 x16) |
| Fan Modules | 5 hot-swappable fan modules with optional N+1 redundancy |
| Power Supply |
4 hot-swappable PSUs with optional 2+2 redundancy. Supported options include: • 1,500W AC Platinum PSUs • 900W AC PSUs • 1,200W DC PSUs |
| Management |
• iBMC integrates one dedicated management GE network port to provide comprehensive management features such as fault diagnosis, automated O&M, and hardware security hardening • iBMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0; provides a remote management interface based on HTML5/VNC KVM; supports CD-free deployment and the Agentless feature, simplifying management • (Optional) Configured with the FusionDirector management software to provide advanced management features such as stateless computing, batch OS deployment, and automated firmware upgrade, enabling smart and automatic entire-lifecycle management |
| Operating Temperature | 5ºC to 45ºC (41ºF to 113ºF) (ASHRAE A3 and A4 compliant) |
| Certifications | CE, UL, FCC, CCC, and RoHS |
| Installation Suite | L-shaped guide rails, adjustable guide rails, and holding rails |
| Dimensions (H x W x D) | 175 mm x 447 mm x 790 mm (6.89 in. x 17.60 in. x 31.10 in.) |
Notices:
1. Open the packaging, check the products carefully, and take them gently.
2. The product is a brand new original unopened equipment.
3. All products 3 year warranty, and the buyer is responsible for the return shipping cost.
International Buyers Please Note:
Import duties, taxes, and charges are not included in the item price or shipping cost. These charges are the buyer's responsibility.
Please check with your country's customs office to determine what these additional costs will be prior to bidding or buying.
Customs fees are normally charged by the shipping company or collected when you pick the item up. These fees are not additional shipping charges.
We won't under-value merchandise or mark the item as a gift on customs forms. Doing that is against U.S. and international laws.
Customs delays are not the responsibility of the seller.
