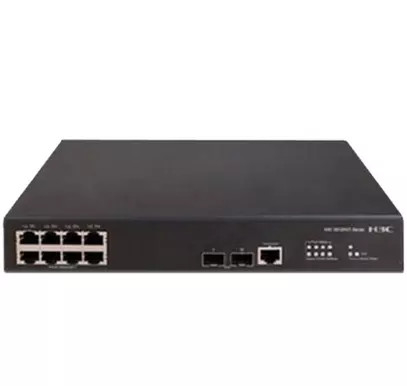

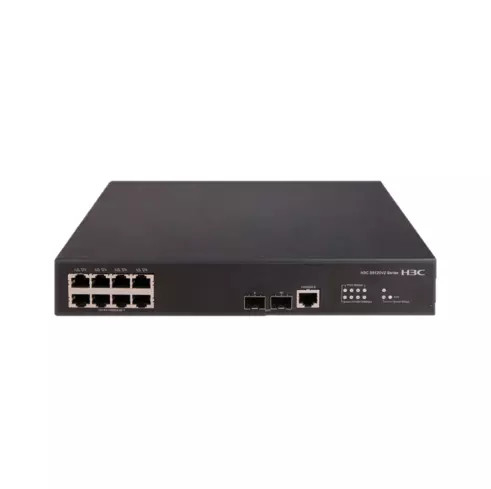

20Gbps 8 Port Gigabit Switch Fiber VLAN Layer 2 Access Switch

Large Image : 20Gbps 8 Port Gigabit Switch Fiber VLAN Layer 2 Access Switch

Product Details:

Place of Origin:	China
Brand Name:	H3C
Model Number:	S5120V2 -10P-LI

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$280-320 pcs Negotiable
Packaging Details:	Carton Packaging
Delivery Time:	5-8 working days
Payment Terms:	T/T
Supply Ability:	50/pcs/week

Contact Now

20Gbps 8 Port Gigabit Switch Fiber VLAN Layer 2 Access Switch

Description

Switching Capacity:	20Gbps	Packet Forwarding Rate:	15Mpps
Dimensions (H × W × D):	43.6× 266 × 161 Mm	Console Ports:	1
Weight:	≤ 1.5kg	Fixed Ports:	810/100 /1000TX+2SFP
Highlight:	Fiber VLAN Layer 2 Access Switch , 20Gbps 8 Port Gigabit Switch , 20Gbps Layer 2 Access Switch

LS-S5120V2-10P-LI/S5120V2-10P-LI H3C 8-port Gigabit Intelligent Network Management Fiber VLAN Layer 2 Access Switch

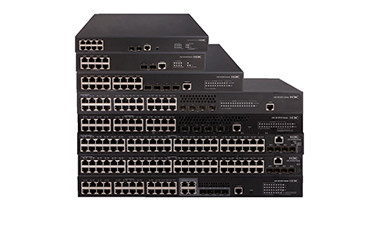

H3C S5120V2-LI Gigabit Access Switch Series

H3C S5120V2-LI is the latest development of Gigabit Layer 2 access switch. It’s the second generation intelligent managed switches designed for networks requiring high performance, high port density and easy to use.
H3C S5120V2-LI series switch offers Gigabit connectivity with10/100/1000 autosensing ports and SFP optical uplink ports.
H3C S5120V2-LI series switch includes eight models as follows:
S5120V2-10P-LI:8 *10/100/1000TX+ 2*SFP
S5120V2-20P-LI:16*10/100/1000TX+ 4*SFP
S5120V2-28P-LI:24 *10/100/1000TX+ 4*SFP
S5120V2-52P-LI:48*10/100/1000TX+ 4*SFP
S5120V2-10P-PWR-LI:8 *10/100/1000TX+ 2*SFP
S5120V2-28P-PWR-LI:24 *10/100/1000TX+ 4*SFP
S5120V2-28P-HPWR-LI:24*10/100/1000 BASE-T + 4*SFP + 4*10/100/1000 BASE-T COMBO
S5120V2-52P-PWR-LI:48*10/100/1000TX+ 4*SFP

Specification

Feature	S5120V2 -10P-LI	S5120V2 -20P-LI	S5120V2 -28P-LI	S5120V2 -52P-LI	S5120V2 -10P- PWR-LI	S5120V2 -28P- PWR-LI	S5120V2 -28P- HPWR-LI	S5120V2 -52P- PWR-LI
Switching capacity	20Gbps	40Gbps	56Gbps	104Gbps	20Gbps	56Gbps	56Gbps	104Gbps
Packet forwarding rate	15Mpps	30Mpps	41.7Mpps	77.4Mpps	15Mpps	41.7Mpps	41.7Mpps	77.4Mpps
Dimensions (H × W × D)	43.6× 266 × 161 mm	43.6× 330 × 230 mm	43.6× 440 × 160 mm	43.6× 440 × 230 mm	43.6× 330 × 230 mm	43.6× 440 × 260 mm	43.6× 440 × 260 mm	43.6× 440 × 260 mm
Weight	≤ 1.5kg	≤ 2kg	≤ 2.5kg	≤ 3.5kg	≤ 3kg	≤ 4kg	≤ 4.5kg	≤ 6kg
Console ports	1
Fixed ports	8*10/100 /1000TX	16*10/10 0/1000TX	24*10/10 0/1000TX	48*10/10 0/1000TX	8*10/100 /1000TX	24*10/10 0/1000TX	2410/10 0/1000TX +410/100/ 1000 BASE-T Combo	48*10/10 0/1000TX
Fixed ports	+2*SFP	+4*SFP	+4*SFP	+4*SFP	+2*SFP	+4*SFP	+ 4*SFP	+4*SFP
Input voltage range	100 VAC to 240 VAC @ 50 Hz/60 Hz						AC: 100-240V @50/60Hz
Input voltage range	100 VAC to 240 VAC @ 50 Hz/60 Hz						DC: -48V~-60V
Power consumption	MIN: 7W MAX: 12W	MIN: 9W MAX: 19W	MIN: 9W MAX: 23W	MIN: 18W MAX: 41W	MIN: 13W MAX:153W (PoE 125W)	MIN: 19W MAX: 240W(PoE 170W)	MIN: AC: 23W DC: 16W MAX: AC: 446W (PoE 370W) DC: 790W(PoE 740W)	MIN: AC: 36W DC: 26W MAX: AC: 467W (PoE 370W) DC: 807W(PoE 740W)
Operating temperature	0ºC to 45ºC
Operating humidity	10% RH to 95% RH, non-condensing
Stacking	Intelligent Resilient Framework 2 (IRF2)
Link aggregation	1G/10GE port aggregation Static aggregation Dynamic aggregation Multichassis link aggregation
Jumbo frame	Supported
MAC address table	Blackhole MAC Address MAC learning limit
Flow control	802.3x flow control and half-duplex backpressure
VLAN	Port-based VLAN QinQ Voice VLAN MAC VLAN
ARP	ARP Detection ARP speed limit
ND	Supported
VLAN virtual port	Supported
DHCP	DHCP Client DHCP Snooping DHCP Relay DHCP Server DHCP Option82
DNS	Static and Dynamic DNS IPV4 and IPV6
Routing protocols	IPV4/IPV6 static routing RIP/ RIPng, OSPFV1/V2/V3
Multicast	IGMP Snooping V1/V2/V3 MVR
Strom suppression	Storm suppression based on port bandwidth percentage Storm suppression based on PPS
Layer 2 ring network protocol	STP/RSTP/MSTP STP Root Protection Smart Link RRPP
Mirroring	Flow mirroring Port mirroring
QoS/ACL	Packet filter Flexible queue scheduling algorithms based on ports and queues, including SP, WRR and SP+WRR Bidirectional ACL Port-based speed limit Flow redirection Time-range
Security	Hierarchical user management and password protection MAC- based authentication 802.1X SSH2.0 Port isolation IP source guard HTTPs EAD
IEEE	IEEE 802.3x IEEE 802.3ad IEEE 802.3af IEEE 802.3at IEEE 802.1p IEEE 802.1x IEEE 802.1q IEEE 802.1d IEEE 802.1w IEEE 802.1s
Loading and upgrading	Loading and upgrading through FTP/TFTP
Management and maintenance	Configuration from CLI Login through Telnet, and the console port Simple Network Management Protocol(SNMP) Remote Monitoring (RMON) IMC network management system WEB management System log Alarming based on severity IRF NTP Debugging information output Telnet-based remote maintenance NQA DLDP Virtual Cable Test

20Gbps 8 Port Gigabit Switch Fiber VLAN Layer 2 Access Switch 0

Notices:

1. Open the packaging, check the products carefully, and take them gently.
2. The product is a brand new original unopened equipment.
3. All products 1 year warranty, and the buyer is responsible for the return shipping cost.

International Buyers Please Note:
Import duties, taxes, and charges are not included in the item price or shipping cost. These charges are the buyer's responsibility.
Please check with your country's customs office to determine what these additional costs will be prior to bidding or buying.
Customs fees are normally charged by the shipping company or collected when you pick the item up. These fees are not additional shipping charges.
We won't under-value merchandise or mark the item as a gift on customs forms. Doing that is against U.S. and international laws.
Customs delays are not the responsibility of the seller.
