Product Details:
|
| Processor: | Multi-core Processors | System Cache: | 384 GB To 4 TB |
|---|---|---|---|
| Maximum Number Of Controllers: | 16 | Supported Storage Protocols: | Fiber Channel, ISCSI, NFS, CIFS, FTP, And HTTP |
| Types Of Front-End Ports: | 12008/16/32 Gbit/s FC And 1/10/25/40/100 Gbit/s Ethernet | Type Of Back-End Ports: | SAS3.0/NVMe Over Fabric |
| Highlight: | OceanStor 5000 V5 Hybrid Flash Storage,128GB 1024GB OceanStor 5000 V5,1024GB huawei Storage Server |
||

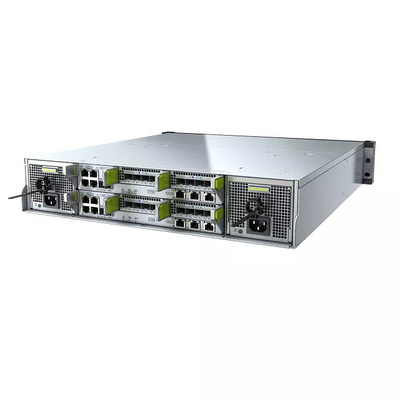

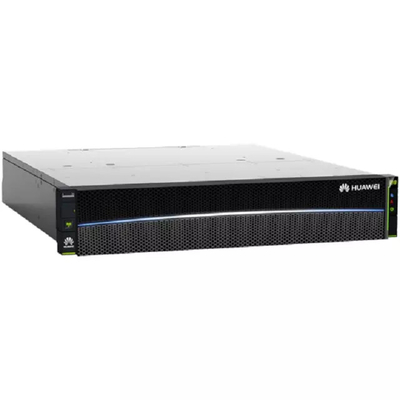

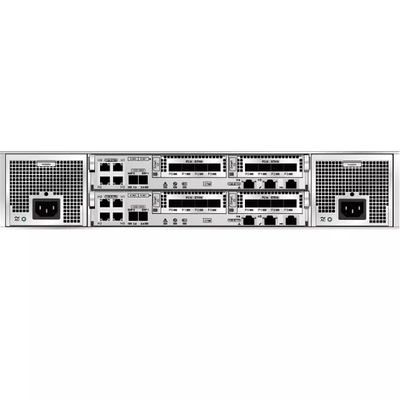

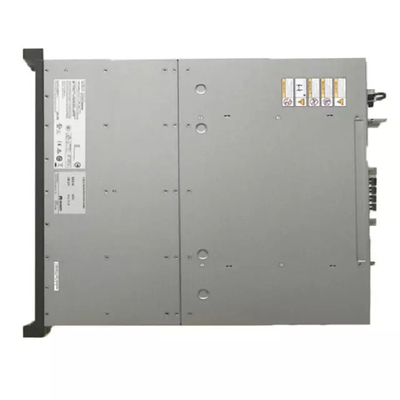

OceanStor 5000 V5 Series Hybrid Flash Storage Systems 5500 V5 with 128 GB to 1,024 GB System Cache
OceanStor 5000 V5 Series Mid-Range Hybrid Flash Storage Systems
Huawei OceanStor 5000 V5 series products feature a cloud-ready operating system, flash-enabled performance, and intelligent management software, delivering excellent functionality, performance, efficiency, reliability, and ease of use.
Satisfying the data storage requirements of large-database Online Transaction Processing (OLTP)/Online Analytical Processing (OLAP), cloud computing, and many other applications, OceanStor 5000 V5 is a natural fit for government, finance, telecommunications, manufacturing, and other sectors with mid-range storage requirements.
Multi-Level Convergence
A gateway-free converged active-active solution guarantees 24/7 stable operations for services, while system efficiency is doubled thanks to the convergence of Storage Area Network (SAN) and Network-Attached Storage (NAS) alongside heterogeneous systems, with primary and backup storage.
Reaching Million-Level IOPS
The flash system design ensures rapid response to core services. With outstanding scalability, OceanStor 5000 V5 can be equipped with a maximum of 16 controllers, 12 TB of cache, and 2400 disk drives, supporting million-level Input/Output Operations Per Second (IOPS).
Intelligent Services
The OceanStor 5000 V5 series employs Huawei’s intelligent management system — eService — throughout the entire lifecycle, and accelerates cloud transformation of enterprises with hybrid cloud solutions.
Specifications
| Model | OceanStor 5300 V5 | OceanStor 5500 V5 | OceanStor 5600 V5 | OceanStor 5800 V5 | |
| Processor | Multi-core processors | ||||
| System Cache (expands with the number of controllers) | 128 GB to 2 TB | 384 GB to 4 TB | 768 GB to 8 TB | 1536 GB to 12 TB | |
| Maximum Number of Controllers | 16 | 16 | 16 | 16 | |
| Supported Storage Protocols | Fiber Channel, iSCSI, NFS, CIFS, FTP, and HTTP | ||||
| Types of Front-End Ports | 8/16/32 Gbit/s FC and 1/10/25/40/100 Gbit/s Ethernet | ||||
| Type of Back-End Ports | SAS 3.0 (single port 4 x 12 Gbit/s) | SAS3.0/NVMe Over Fabric | |||
| Data Protection Software | HyperSnap (snapshot), HyperClone (clone), HyperCopy (copy), HyperMirror (volume mirroring), HyperMetro (active-active arrays), HyperReplication (remote replication), HyperLock (WORM), and HyperVault (all-in-one backup) | ||||
| Mission-Critical Business Protection | SmartEncryption(intelligent data encryption), SmartQoS (intelligent service quality control), SmartPartition (intelligent partitioning), and SmartCache (intelligent SSD caching) | ||||
| Resource Efficiency Improvement Software | SmartMigration (intelligent LUN migration), SmartVirtualization (intelligent heterogeneous virtualization), SmartMulti-tenant (intelligent multi-tenant), SmartQuota (quota management), SmartDedupe (intelligent de-duplication), SmartCompression (intelligent compression), SmartThin (intelligent thin provisioning), SmartTier (intelligent data tiering), SmartMotion (intelligent data motion), SmartErase (intelligent data destruction), and SmartEncryption (intelligent data encryption) | ||||
Notices:
1. Open the packaging, check the products carefully, and take them gently.
2. The product is a brand new original unopened equipment.
3. All products 1 year warranty, and the buyer is responsible for the return shipping cost.
International Buyers Please Note:
Import duties, taxes, and charges are not included in the item price or shipping cost. These charges are the buyer's responsibility.
Please check with your country's customs office to determine what these additional costs will be prior to bidding or buying.
Customs fees are normally charged by the shipping company or collected when you pick the item up. These fees are not additional shipping charges.
We won't under-value merchandise or mark the item as a gift on customs forms. Doing that is against U.S. and international laws.
Customs delays are not the responsibility of the seller.
Contact Person: Sandy Yang
Tel: 13426366826
