Product Details:
|
| Power Input: | DC: 12 V ±10% PoE Power Supply: In Compliance With 802.3at. | Maximum Power Consumption: | 17.9 W (excluding USB) |
|---|---|---|---|
| Maximum Number Of Users: | ≤ 1024 | Operating Temperature: | –10°C To +50°C |
| Antenna Type: | Built-in Smart Antennas | MIMO:Spatial Streams: | 2.4 GHz: 2x2:2; 5 GHz: 4x4:4 |
| Highlight: | AirEngine 5761-21 WLAN Device,Huawei AirEngine 5761-21,Wall Plate Wireless Access Point |
||
huawei AirEngine 5761-21 indoor Wi-Fi 6 wall plate Access Point AP (4*4 MIMO 2.4GHz 5GHz,IEEE802.11a/b/g/n/ac/ac)

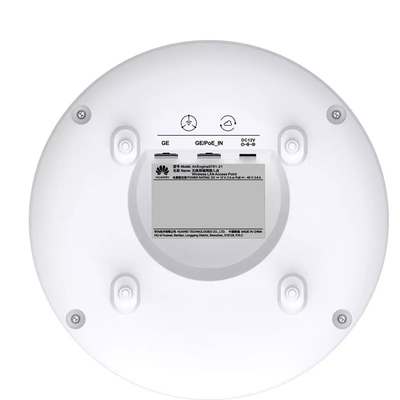

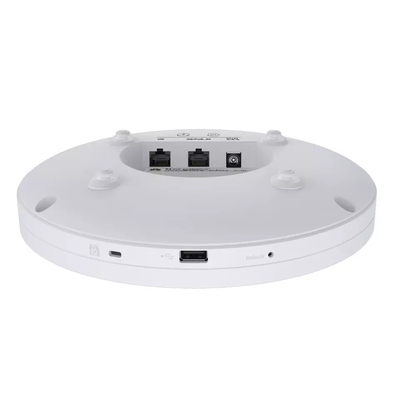

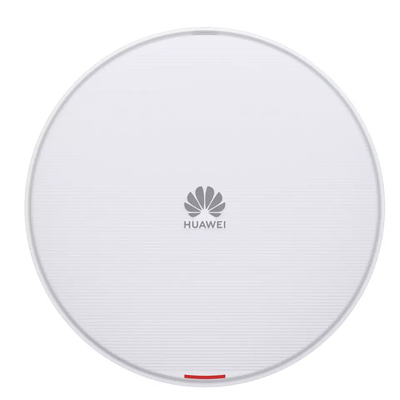

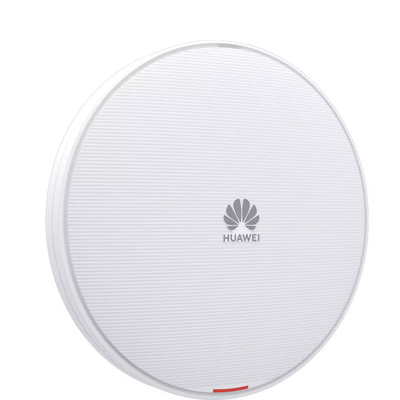

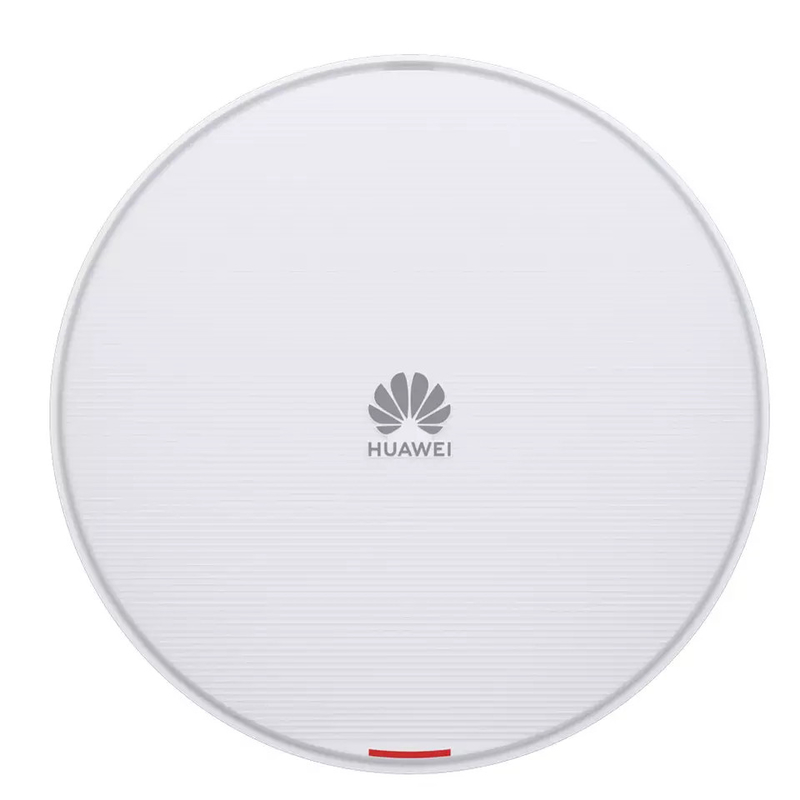

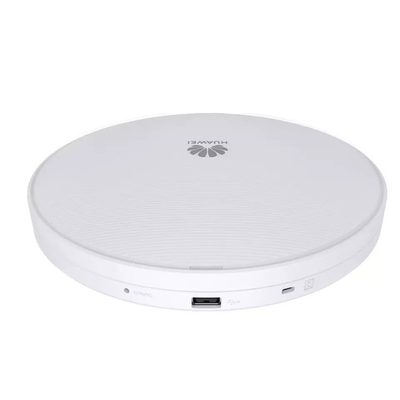

AirEngine 5761-21 Access Point
A next generation indoor Wi-Fi 6 (802.11ax) Access Point (AP), AirEngine 5761-21 supports six spatial streams and features built-in Smart Antennas, where Wi-Fi signals follow users to deliver always-on coverage, with a maximum rate of 5.375 Gbit/s.
This AP excels in scenarios requiring high bandwidth and a high-quality network experience, from small and midsize enterprise offices and education institutions to retail outlets.
Featuring Multi-User Multiple-Input Multiple-Output (MU-MIMO) and Orthogonal Frequency Division Multiple Access (OFDMA) for efficient data transmission, plus 1024 Quadrature Amplitude Modulation (QAM), six spatial streams, and an air interface rate of up to 5.375 Gbit/s.
Dual-band co-planar Smart Antennas suppress interference automatically, double signal strength, and provide 20% wider coverage, realizing high-quality wireless coverage with zero blind spots.
Huawei’s cloud management platform simplifies the management of APs and services, reducing network Operations and Maintenance (O&M) costs.
Specifications
| Parameters | AirEngine 5761-21 |
| Dimensions (Diameter x Height) | Φ220 x 50 mm |
| Power Input | DC: 12 V ±10% PoE power supply: In compliance with 802.3at. |
| Maximum Power Consumption | 17.9 W (excluding USB) Note: The actual maximum power consumption depends on local laws and regulations. |
| Maximum Number of Users | ≤ 1024 Note: The actual number of users varies according to the environment. |
| Operating Temperature | –10°C to +50°C |
| Antenna Type | Built-in Smart Antennas |
| MIMO:Spatial Streams | 2.4 GHz: 2x2:2; 5 GHz: 4x4:4 |
| Radio Protocols | 802.11a/b/g/n/ac/ac wave2/ax |
| Maximum Rate | 5.375 Gbit/s |
Notices:
1. Open the packaging, check the products carefully, and take them gently.
2. The product is a brand new original unopened equipment.
3. All products 1 year warranty, and the buyer is responsible for the return shipping cost.
International Buyers Please Note:
Import duties, taxes, and charges are not included in the item price or shipping cost. These charges are the buyer's responsibility.
Please check with your country's customs office to determine what these additional costs will be prior to bidding or buying.
Customs fees are normally charged by the shipping company or collected when you pick the item up. These fees are not additional shipping charges.
We won't under-value merchandise or mark the item as a gift on customs forms. Doing that is against U.S. and international laws.
Customs delays are not the responsibility of the seller.
