Product Details:
|
| Power Input: | DC: 48 V ± 10% PoE Power Supply: In Compliance With IEEE 802.3bt | Maximum Power Consumption: | ≤ 1024 (dual-radio Mode) ≤ 1152 (triple-radio Mode) |
|---|---|---|---|
| Operating Temperature: | –10°C To 50°C | Antenna Type: | Built-in Smart Antennas |
| Port: | 1 X 5 GE And 1 X GE Electrical | Radio Protocols: | 802.11a/b/g/n/ac/ac Wave 2/ax |
| Highlight: | HUAWEI AirEngine 5760-51,5760-51 Wireless Indoor Access Point,AirEngine 5760-51 WLAN Device |
||

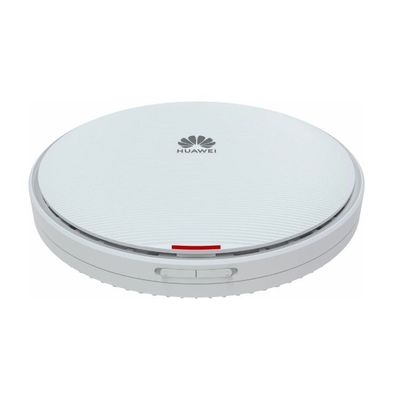

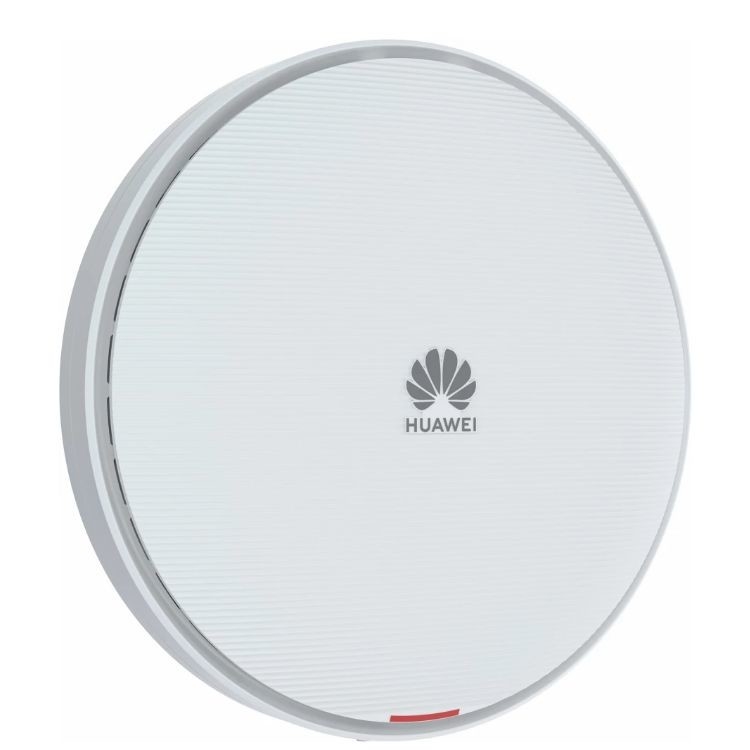

HUAWEI AirEngine 5760-51 Wireless Indoor Access Points

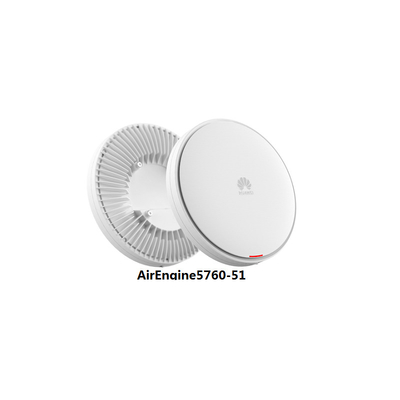

AirEngine 5760-51 Access Point
With Software-Defined Radio (SDR) and flexible switching between dual-radio and triple-radio modes, Huawei AirEngine 5760-51 is a next generation Wi-Fi 6 (802.11ax) indoor Access Point (AP) that excels at handling high performance and high-density scenarios.
Huawei’s unique Smart Antenna technology — derived from innovations made in 5G — enables signals to actively follow users, improving signal gain to realize high-quality coverage with zero blind spots. With a Right to Use (RTU) license, the support for spatial streams can be increased from six to eight. AirEngine 5760-51 faces no problems functioning in high-interference scenarios, with interference scanning capabilities provided by an independent radio. Such strengths make AirEngine 5760-51 optimal for a wide range of scenarios including enterprise office, retail, and manufacturing.
Dual-band co-planar Smart Antennas suppress interference automatically, double signal strength, and provide 20% greater coverage distance, realizing high-quality wireless coverage with zero blind spots.
Flexibly switching between dual-radio and triple-radio modes improves concurrent capacity by 50%, with the ability to adapt to bandwidth-intensive and high-concurrency scenarios.

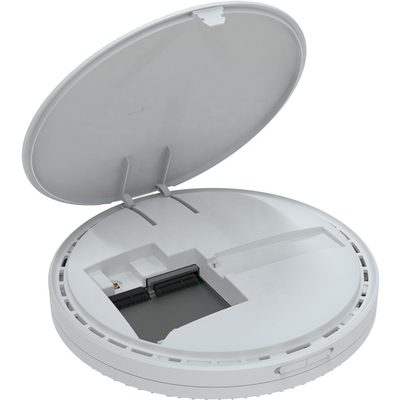

BLE 5.0 supported by default, with built-in, dual IoT slots and a USB port that adapt to multiple IoT protocols, such as RFID and ZigBee, meeting access requirements for a range of IoT terminals.
Specifications
| Parameters | AirEngine 5760-51 |
| Dimensions (Diameter x Height) | 220 mm x 50 mm |
| Power Input | DC: 48 V ± 10% PoE power supply: in compliance with IEEE 802.3bt |
| Maximum Number of Users | ≤ 1024 (dual-radio mode) ≤ 1152 (triple-radio mode) Note: The actual number of users varies according to the environment. |

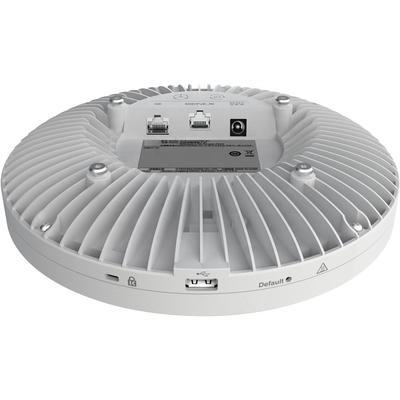

| Port | 1 x 5 GE and 1 x GE electrical |
| IoT | Built-in IoT slots |
| Operating Temperature | –10°C to 50°C |
| Antenna Type | Built-in Smart Antennas |
| MIMO: Spatial Streams | Basic capability: 2.4 GHz: 2x2:2; 5 GHz: 4x4:4 2.4 GHz: 2x2:2; 5 GHz-0: 2x2:2; 5 GHz-1: 2x2:2 Capability upgrade via RTU license: 2.4 GHz: 4x4:4; 5 GHz: 4x4:4 2.4 GHz: 2x2:2; 5 GHz-0: 2x2:2; 5 GHz-1: 4x4:4 |
| Radio Protocols | 802.11a/b/g/n/ac/ac Wave 2/ax |
| Maximum Data Rate | Basic capability: up to 5.37 Gbit/s RTU license upgrade: up to 5.95 Gbit/s |
