Product Details:
|
| Power Input: | PoE Power Supply: In Compliance With IEEE 802.3at/bt; Only The 2.5G/5G Port Supports PoE Input | Maximum Power Consumption: | 802.3bt Power Supply: 45W (excluding The Output Power Of The PoE OUT Port) 802.3at Power Supply: 25.5W (the PoE OUT Function And GE/POE OUT Ports Are Unavailable, 5 GE And SFP Are Mutually Exclusive) |
|---|---|---|---|
| Operating Temperature: | –40°C To 65°C | Antenna Type: | AP8082DN: Built-in Directional Antennas (horizontal 60°, Vertical 30°) AP8182DN: External Antennas (with Eight Type N Connectors) |
| MIMO: Spatial Streams: | 4 X 4:4 | Maximum Number Of Users: | ≤ 512 |
| Highlight: | AP8082DN Outdoor Wireless Access Point,802.11ac Wave 2 Huawei APs,AP8082DN WLAN Device |
||

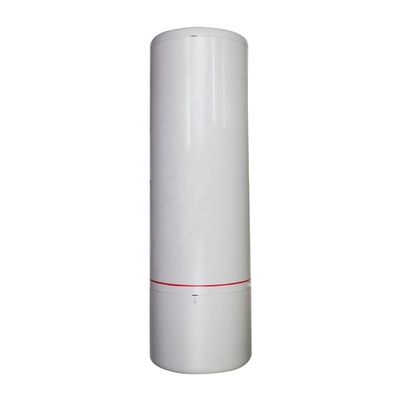

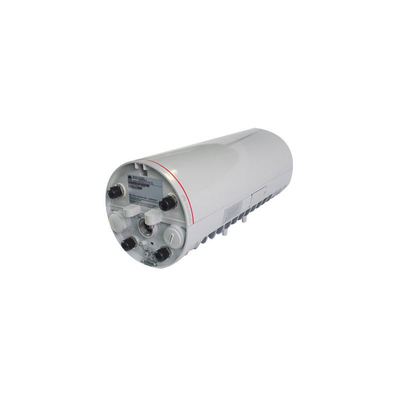

Built-in Wireless Access Point AP8082DN outdoor access points for High Quality Outdoor Access Point 802.11ac Wave 2
AP8082DN & AP8182DN Access Points
Supporting 4SU-4MU (MU-MIMO), and providing a maximum rate of 2.53 Gbit/s or 3.46 Gbit/s when working in dual-5G mode.
Including 5 kA surge protection on antenna ports to simplify installation and 6 kA or 6 kV surge protection on Ethernet interfaces. These industrial-grade APs feature IP68-rated and are submersible in water.

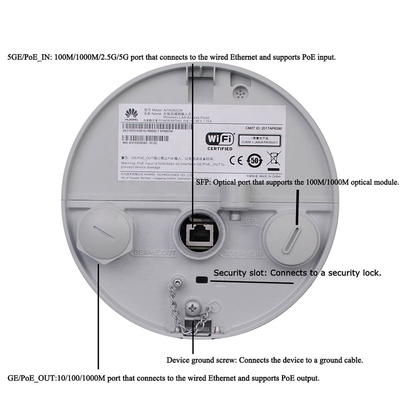

Featuring PoE OUT and possible extension with cameras and IoT protocols such as RFID and ZigBee.
Specifications
| Specifications | AP8082DN & AP8182DN |

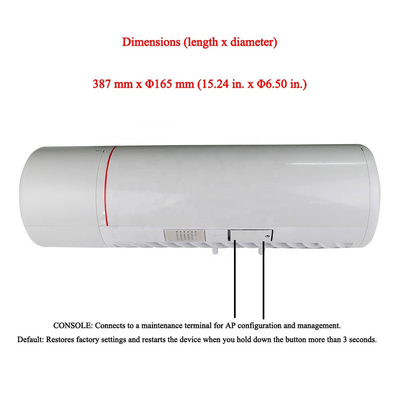

| Dimensions (Length x Diameter) | 387 mm x φ165 mm |
| Power Input | PoE power supply: In compliance with IEEE 802.3at/bt; only the 2.5G/5G port supports PoE input |
| Maximum Power Consumption | 802.3bt power supply: 45W (excluding the output power of the PoE OUT port) 802.3at power supply: 25.5W (the PoE OUT function and GE/POE OUT ports are unavailable, 5 GE and SFP are mutually exclusive) Notes: The actual maximum power consumption depends on local laws and regulations. In 802.3at power supply mode, the radio power is reduced, and the 2.4 GHz radio frequency works in 2 x 4 MIMO mode |
| Operating Temperature | –40°C to 65°C |
| Antenna Type | AP8082DN: Built-in directional antennas (horizontal 60°, vertical 30°) AP8182DN: External antennas (with eight type N connectors) |
| Maximum Number of Concurrent Users | ≤ 512 |
| Maximum Transmit Power | AP8082DN: 2.4G: 29 dBm (combined power) 5G: 28 dBm (combined power) AP8182DN: 2.4G: 28 dBm (combined power) 5G: 27 dBm (combined power) Note: The actual transmit power depends on local laws and regulations |
| MIMO: Spatial Streams | 4 x 4:4 |
| Radio Protocols | 802.11a/b/g/n/ac/ac Wave 2 |
| Maximum Rate | AP8082DN: 2.53 Gbit/s AP8182DN: 3.46 Gbit/s |
