Product Details:
|
| Computing: | 2 X 3rd Generation Intel® Xeon® Ice Lake SP Series | Chipset: | Intel® C621A |
|---|---|---|---|
| Memory: | 32 X DDR4 DIMM Slots , Maximum 12.0 TB | Storage Controller: | Embedded RAID Controller (SATA RAID 0, 1, 5, And 10) |
| FBWC: | 8 GB DDR4 Cache, Depending On Model ,support Supercapacitor Protection | PCIe Slots: | 4 X PCIe 4.0 Standard Slots |
| Highlight: | 12TB 1U 2 Way Server H3C Server,1U 2 Way H3C Server,12TB 1U 2 Way H3C Server |
||
H3C UniServer R4700 G5 2-way 1U rack server designed for intelligent computing for data center SERVRE

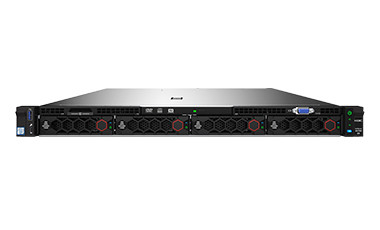

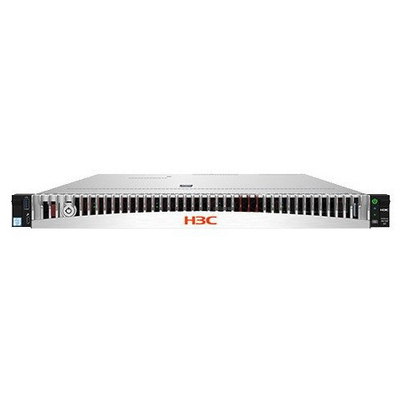

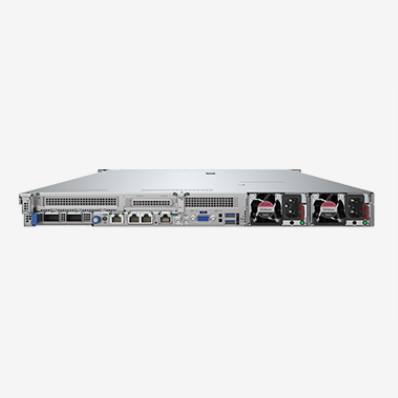

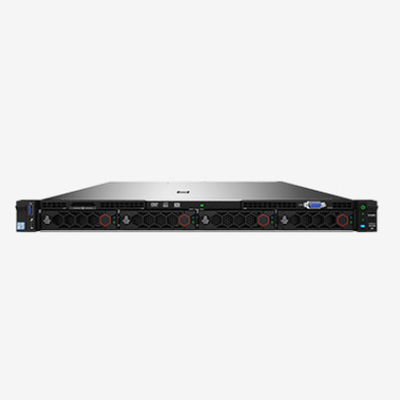

H3C UniServer R4700 G5 Server
New generation H3C UniServer R4700 G5 provide outstanding performance within 1U rack by adopting the latest Intel® X86 platform as well as several optimization for modern data center. Industrial-leading manufacturing process and system design enable customers to easily and reliably manage their IT infrastructure.
H3C UniServer R4700 G5 server is a H3C self-developed mainstream 1U rack server.
R4700 G5 utilizes the most recent 3rd Gen Intel®Xeon® Scalable processors and 8 channel DDR4 memory with 3200MT/s speed to strongly lift the performance up to 52% compared with previous platform.
Data Center Level GPU and NVMe SSD also equip with excellent IO scalability.
Maximum 96% power efficiency and 5～45℃ operating temperature provide users a TCO returns in a greener data center.
- General workloads in high density data center — middle to large enterprise or cloud server provider.
- Flexible Workloads — Database, Virtualization, Private Cloud, Public Cloud.
- Computing Intensive architecture — Big Data, Business Intelligence, Geographical Exploration and Research.
- Low-latency Transaction Applications — Online interactive transaction system in finance industry.
- The R4700 G5 supports Microsoft® Windows® and Linux operating systems, as well as VMware and H3C CAS and can operate perfectly in heterogeneous IT environments.
| CPU |
2 x 3rd generation Intel® Xeon® Ice Lake SP series (each processor up to 40 cores and maximum 270W power consumption) |
| Chipset | Intel® C621A |
| Memory |
32 x DDR4 DIMM slots , maximum 12.0 TB Up to 3200 MT/s data transfer rate,support RDIMM or LRDIMM Up to 16 Intel ® Optane™ DC Persistent Memory Module PMem 200 series ( Barlow Pass) |
| Storage controller |
Embedded RAID controller (SATA RAID 0, 1, 5, and 10) Standard PCIe HBA cards and storage controllers,depending on model |
| FBWC | 8 GB DDR4 cache, depending on model ,support supercapacitor protection |
| Storage |
Up to Front 4LFF bays, Rear 2SFF bays* Up to Front 10SFF bays, Rear 2SFF bays* Front SAS/SATA HDD/SSD/NMVe Drives, maximum 8 x U.2 NVMe Drives SATA/PCIe M.2 SSDs,2 x SD card kit , depending on model |
| Network |
1 x onboard 1 Gbps management network port 1 x OCP 3.0 slot for 4 x 1GE or 2 x 10GE or 2 x 25GE NIC PCIe Standard slots for 1/10/25/40/100GE/IB Ethernet adapter, |
| PCIe slots | 4 x PCIe 4.0 standard slots |
| Ports |
VGA connectors (Front and Rear) and serial port (RJ-45) 5 x USB 3.0 ports (1 front, 2 rear, and 2 internal) 1 dedicated management Type-C port |
| GPU | 4 x single-slot wide GPU modules |
| Optical drive | External optical disk drive,optional |
| Management | HDM OOB system (with dedicated management port) and H3C iFIST/FIST, support LCD touchable smart model |
| Security |
Intelligent Front Security Bezel * Chassis Intrusion Detection TPM2.0 Silicon Root of Trust Two-factor authorization logging |
| Power supply |
2 x Platinum 550W/800W/850W (1+1 redundancy) ,depending on model 800W –48V DC power supply (1+1 Redundancy) Hot swappable redundant fans |
| Standards | CE,UL , FCC,VCCI,EAC, etc. |
| Operating temperature |
5°C to 45°C (41°F to 113°F) The maximum operating temperature varies by server configuration. For more information, see the technical documentation for the device. |
| Dimensions (H × W × D) |
1U Height Without a security bezel: 42.9 x 434.6 x 780 mm (1.69 x 17.11 x 30.71 in) With a security bezel: 42.9 x 434.6 x 808 mm (1.69 x 17.11 x 31.81 in) |
Notices:
1. Open the packaging, check the products carefully, and take them gently.
2. The product is a brand new original unopened equipment.
3. All products 1 year warranty, and the buyer is responsible for the return shipping cost.
International Buyers Please Note:
Import duties, taxes, and charges are not included in the item price or shipping cost. These charges are the buyer's responsibility.
Please check with your country's customs office to determine what these additional costs will be prior to bidding or buying.
Customs fees are normally charged by the shipping company or collected when you pick the item up. These fees are not additional shipping charges.
We won't under-value merchandise or mark the item as a gift on customs forms. Doing that is against U.S. and international laws.
Customs delays are not the responsibility of the seller.
