Product Details:
|
| Computing: | 2 X 3rd Generation Intel® Xeon® Ice Lake SP Series | Memory: | 32 × DDR4 DIMMs (maximum) |
|---|---|---|---|
| Storage Controller: | Embedded RAID Controller (SATA RAID 0, 1, 5, And 10) | FBWC: | 8 GB DDR4 Cache, Depending On Model ,support Supercapacitor Protection |
| Storage: | Front 24LFF; Rear 12LFF+4LFF(2LFF)+4SFF;Support Internal 4LFF* Or 8SFF*;Optional 16 NVMe Drives | PCIe Slots: | 10 X PCIe 4.0 Standard Slots And 1 X OCP3.0 Slots |
| Highlight: | R4300 G5 4U Rackmount Server,UniServer R4300 G5 4U Rackmount Server,UniServer R4300 G5 4U Rackmount |
||
high-performance dual-processor H3C UniServer R4300 G5 4U rack Server

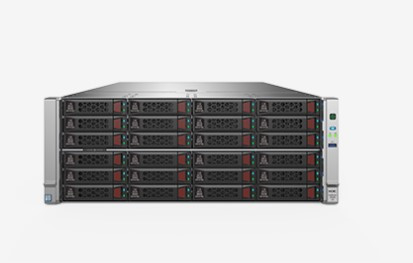

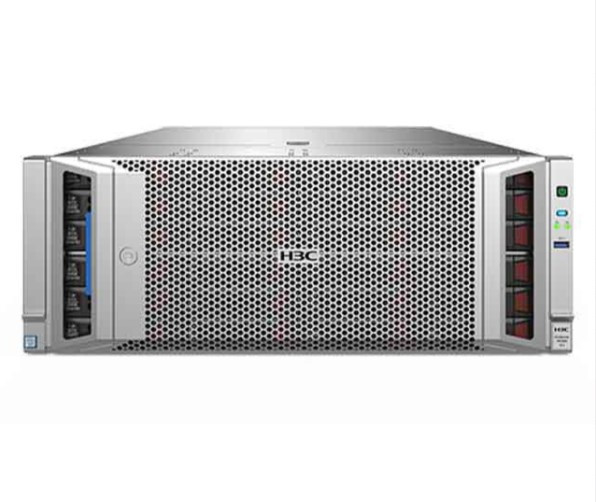

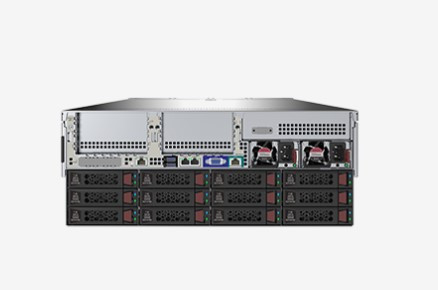

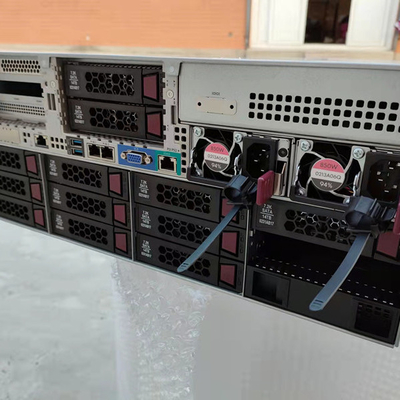

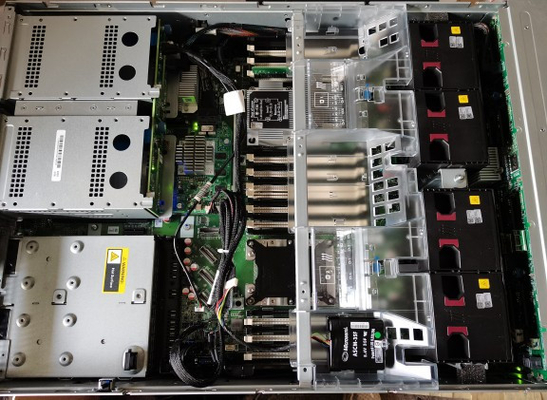

H3C UniServer R4300 G5 Server
The R4300 G5 server realize the comprehensive needs of high storage capacity, efficient data calculation, and linear expansion within 4U rack. This model is suitable for multiple industries such as government, public security, operator, and the Internet.
As an advanced high-performance dual-processor 4U rack server, the R4300 G5 features the most recent the 3rd generation Intel® Xeon® Scalable processors and eight-channel 3200MHz DDR4 DIMMs, achieve an average 46% performance improvement and 43% increase in the number of cores. With up to 2 double-width or 8 single-width GPUs, equipping R4300 G5 with excellent local data processing and real-time AI acceleration performance.
The R4300 G5 server support up to 52 drives, seamless select from M.2 to NVMe drives and flexible DCPMM combination as well as Optane SDD/NVMe high-speed flash/Tri-mode RAID technology.With up to 10 PCIe 4.0 slots and up to200 GB Ethernet card and 56Gb,100Gb ,200Gb IB card, Server can easily achieve reliable and flexible I/O expansion to deliver high volume and concurrent data service.
R4300 G5 Server support power supplies with 96% efficiency that greatly improves data center efficiency and reduce the datacenter cost.
R4300 G5 provide a favorable linear expansion of DC-level storage capacity. It can also support multiple modes Raid technology and power outage protection mechanism to make the server an ideal infrastructure for SDS or distributed storage,
- Big Data – manage exponential growth in data volume includes structured, unstructured, and semi-structured data
- Storage-oriented application – eliminate I / O bottlenecks and improve performance
- Data warehousing/Analysis – extract valuable information for wiser decision-making
- High-performance and deep learning–Powering machine learning and artificial intelligence applications
The R4300 G5 supports Microsoft® Windows® and Linux operating systems, as well as VMware and H3C CAS and can operate perfectly in heterogeneous IT environments.
| CPU |
2 x 3rd generation Intel® Xeon® Ice Lake SP series (each processor up to 40 cores and maximum 270W power consumption) |
| Chipset | Intel® C621A |
| Memory |
32 × DDR4 DIMMs (maximum) Up to 3200 MT/s data transfer rate and support for both RDIMM and LRDIMM Up to 16 Intel ® Optane™ DC Persistent Memory Module PMem 200 series ( Barlow Pass) |
| Storage controller |
Embedded RAID controller (SATA RAID 0, 1, 5, and 10) Standard PCIe 4.0/3.0 HBA cards and storage controllers (Optional) NVMe RAID |
| FBWC | 8 GB DDR4 cache, depending on model ,support supercapacitor protection |
| Storage |
Support SAS/SATA/NVMe U.2 Drives Front 24LFF; Rear 12LFF+4LFF(2LFF)+4SFF;Support internal 4LFF* or 8SFF*;Optional 16 NVMe drives Support SATA M.2 optional part |
| Network |
1 x onboard 1 Gbps HDM management Ethernet port 1 x x16 OCP3.0 Ethernet adapter support NCSI function and hot-swap PCIe 4.0/3.0 Ethernet adapters (Optional), Support 10G,25G,100G LAN Card or 56G/100G IB card |
| PCIe slots | 10 x PCIe 4.0 standard slots and 1 x OCP3.0 Slots |
| Ports |
2 x VGA connector (Front and Rear) and serial port 6 x USB 3.0 connectors (two at the front and two at the rear and two at the internal), 1 × Type C for HDM |
| GPU | 8 x single-slot wide or 2 x double-slot GPU modules* |
| Optical drive | External optical drive |
| Management |
HDM (with dedicated management port) and H3C FIST support LCD touchable smart model* |
| Security |
Intelligent Front Security Bezel * Support Chassis Intrusion Detection TCM1.0/TPM2.0 |
| Power supply and Cooling |
2 x 800W(–48V)/1300W/1600W or 2 x 800w -48VDC power supply (1+1 Redundant Power Supply) 80Plus certification Hot swappable fans (supports 4+1 Redundancy) |
| Standards | CE CB TUV etc. |
| Operating temperature |
5°C to 40°C (41°F to 104°F) Storage Temperature:-40~85ºC(-41°F to 185°F) The maximum operating temperature varies by server configuration. For more information, see the technical documentation for the device. |
| Dimensions (H × W × D) |
4U Height Without a security bezel: 174.8 × 447 × 781 mm (6.88 × 17.60 × 30.75 in) With a security bezel: 174.8 × 447 × 809 mm (6.88 × 17.60 × 31.85 in) |
