Product Details:
|
| Architecture: | MIPSBE | CPU: | AR9344 |
|---|---|---|---|
| CPU Core Count: | 1 | CPU Nominal Frequency: | 600 MHz |
| Dimensions: | 443 X 92 X 44 Mm | RouterOS License: | 5 |
| Operating System: | RouterOS | Size Of RAM: | 128 MB |
| Storage Size: | 128 MB | Storage Type: | NAND |
| MTBF: | Approximately 200'000 Hours At 25C | Tested Ambient Temperature: | -40°C To 60°C |
| Highlight: | 128MB 1U Rackmount Datacom Switches,Datacom Switches 5x Gigabit Ethernet,128MB RAM 1U Rackmount |
||
1U rackmount, 5xEthernet, 5xGigabit Ethernet, USB, LCD, PoE out on port 10, 600MHz CPU, 128MB RAM, RouterOS L5

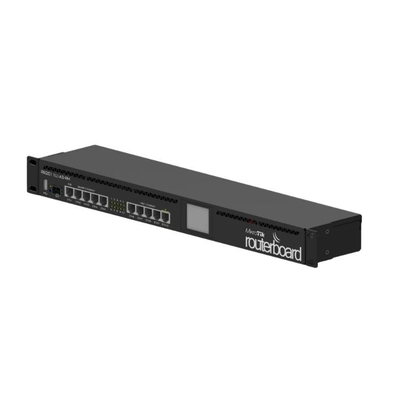

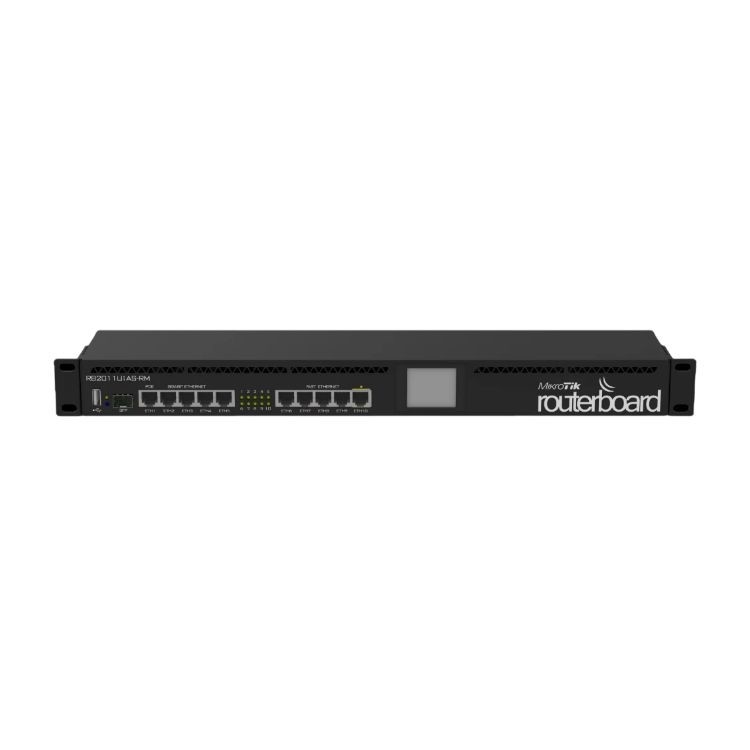

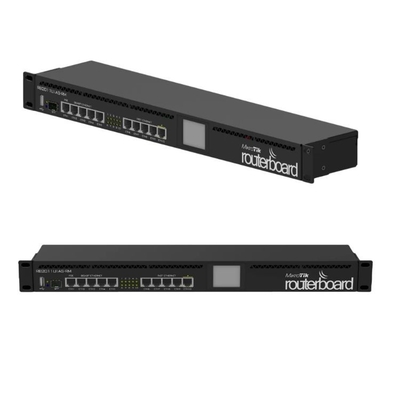

RB2011UiAS-RM
The RB2011 is a low cost multi port device series. Designed for indoor use, and available in many different cases, with a multitude of options.
The RB2011 is powered by RouterOS, a fully featured routing operating system which has been continuously improved for fifteen years. Dynamic routing, hotspot, firewall, MPLS, VPN, advanced quality of service, load balancing and bonding, real-time configuration and monitoring - just a few of the vast number of features supported by RouterOS.
RouterBOARD 2011UiAS-RM, in comparison with RB2011L series, not only has five Gigabit LAN ports and five Fast Ethernet LAN ports, but also has RJ45 serial port, USB port and more RAM (128MB instead of 64MB). Also, it has RouterOS L5 license (instead of L4) and nice touchscreen LCD for configuration. SFP cage is also present (SFP module not included!)
There is PoE output function for port #10 - it can power other PoE capable devices with the same voltage as applied to the unit. Maximum load on the port is 500mA.
Tested and recommended to use with MikroTik SFP modules: S-85DLC05D, S-31DLC20D and S-35/53LC20D (not included)
RouterBOARD 2011UiAS-RM comes with 1U rackmount enclosure, LCD panel and power supply.
| Details | |
|---|---|
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 8-30 V |
| Max power consumption | 28 W |
| Max power consumption without attachments | 6 W |
| Cooling type | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 8-30 V |
| Details | |
|---|---|
| PoE-out ports | Ether10 |
| PoE out | Passive PoE |
| Max out per port output (input 18-30 V) | 510 mA |
| Max total out (A) | 510 mA |
| Details | |
|---|---|
| 10/100 Ethernet ports | 5 |
| 10/100/1000 Ethernet ports | 5 |
| Details | |
|---|---|
| SFP DDMI | Yes |
| SFP ports | 1 |
| Details | |
|---|---|
| Serial console port | RJ45 |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Max USB current (A) | 2 |
| Details | |
|---|---|
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Beeper | Yes |
| Details | |
|---|---|
| Certification | CE, EAC, ROHS |
| IP | IP20 |
