Product Details:
|
| Architecture: | ARM 32bit | CPU: | IPQ-8064 |
|---|---|---|---|
| CPU Core Count: | 2 | CPU Nominal Frequency: | 1.4 GHz |
| Dimensions: | 443 X 92 X 44 Mm | RouterOS License: | 5 |
| Operating System: | RouterOS | Size Of RAM: | 1 GB |
| Storage Size: | 128 MB | Storage Type: | NAND |
| MTBF: | Approximately 200'000 Hours At 25C | Tested Ambient Temperature: | -20°C To 70°C |
| Highlight: | RB3011UiAS-RM 1GB RAM Datacom Switches,RB3011UiAS-RM 1GB RAM Switches,RB3011UiAS-RM 1GB Datacom Switches |
||
1U rackmount, 10xGigabit Ethernet, SFP, USB 3.0, LCD, PoE out on port 10, 2x1.4GHz CPU, 1GB RAM, RouterOS L5

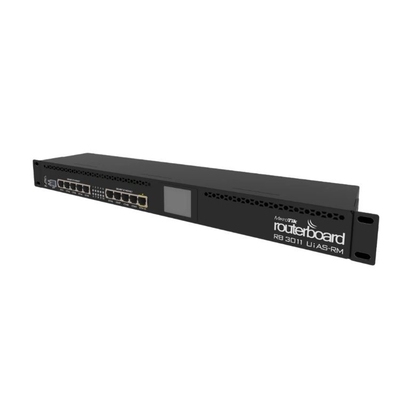

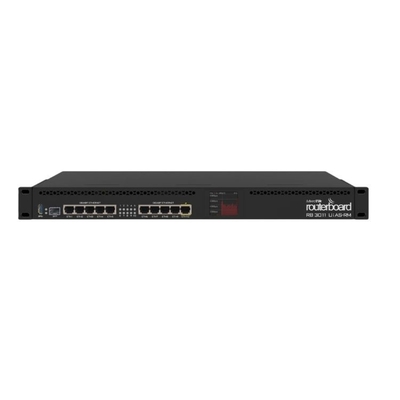

RB3011UiAS-RM
The RB3011 is a new multi port device, our first to be running an ARM architecture CPU for higher performance than ever before. The RB3011 has ten Gigabit ports divided in two switch groups, an SFP cage and for the first time a SuperSpeed full size USB 3.0 port, for adding storage or an external 3G/4G modem.
RB3011UiAS-RM Unit comes with 1U rackmount enclosure, a touchscreen LCD panel, a serial console port and PoE output functionality on the last Ethernet port.
| Details | |
|---|---|
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 10-30 V |
| Max power consumption | 30 W |
| Max power consumption without attachments | 10 W |
| Cooling type | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 10-30 V |
| Details | |
|---|---|
| PoE-out ports | Ether10 |
| PoE out | Passive PoE |
| Max out per port output (input 18-30 V) | 600 mA |
| Max total out (A) | 600 mA |
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 10 |
| Details | |
|---|---|
| SFP ports | 1 |
| Details | |
|---|---|
| Serial console port | RJ45 |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB 3.0 type A |
| Max USB current (A) | 1 |
| Details | |
|---|---|
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Beeper | Yes |
| Details | |
|---|---|
| Certification | CE, EAC, ROHS |
| IP | IP20 |
