Product Details:
|
| Architecture: | MMIPS | CPU: | MT7621A |
|---|---|---|---|
| CPU Core Count: | 2 | CPU Nominal Frequency: | 880 MHz |
| Dimensions: | 113 X 89 X 28 Mm | RouterOS License: | 4 |
| Operating System: | RouterOS | Size Of RAM: | 256 MB |
| Storage Size: | 16 MB | Storage Type: | FLASH |
| MTBF: | Approximately 100'000 Hours At 25C | Tested Ambient Temperature: | -40°C To 70°C |
| Highlight: | MikroTik hEX S RB760iGS,mikrotik hex s gigabit ethernet router,256mb L4 Gigabit Ethernet Router |
||
5x Gigabit Ethernet, SFP, Dual Core 880MHz CPU, 256MB RAM, USB, microSD, RouterOS L4, IPsec hardware encryption support

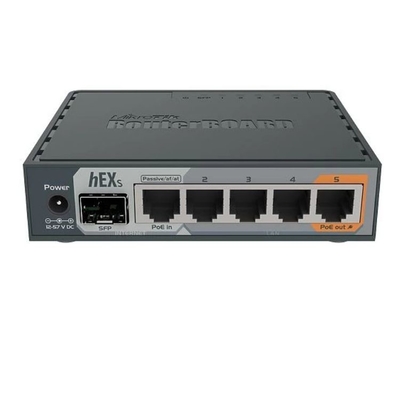

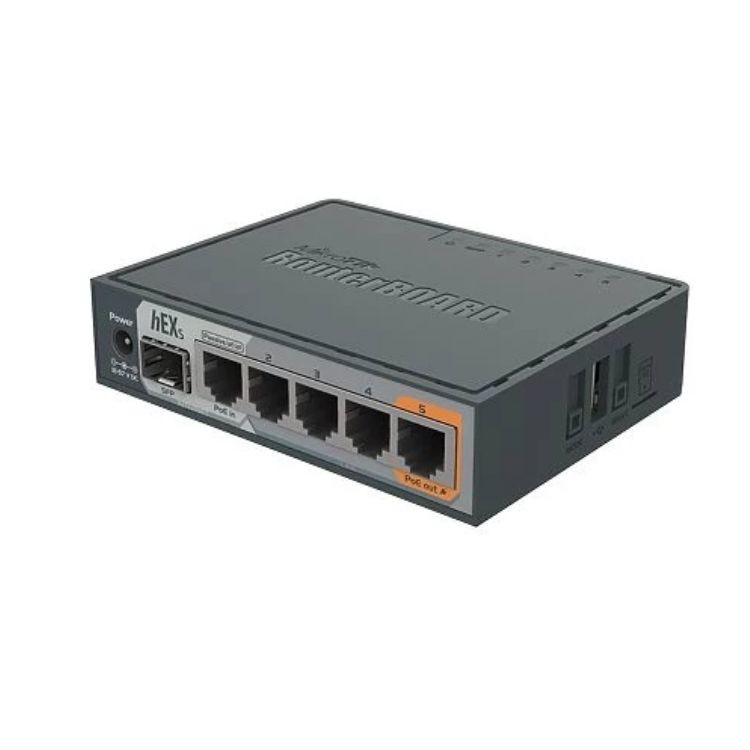

hEX S RB760iGS
hEX S is a five port Gigabit Ethernet router for locations where wireless connectivity is not required. Compared to the hEX, the hEX S also features an SFP port and PoE output on the last port.
It is affordable, small and easy to use, but at the same time comes with a very powerful dual core 880 MHz CPU and 256 MB RAM, capable of all the advanced configurations that RouterOS supports. The device has a USB 2.0, PoE output for Ethernet port #5 and a 1.25Gbit/s SFP cage. The port #5 can power other passive PoE capable devices with the same voltage as applied to the unit
IPsec hardware encryption (~470 Mbps) and The Dude server package is supported, microSD slot on it provides improved r/w speed for file storage and Dude.
| Details | |
|---|---|
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 12-57 V |
| Max power consumption | 24 W |
| Max power consumption without attachments | 6 W |
| Cooling type | Passive |
| PoE in | 802.3af/at |
| PoE in input Voltage | 12-57 V |
| Details | |
|---|---|
| PoE-out ports | Ether5 |
| PoE out | Passive PoE up to 57V |
| Max out per port output (input 18-30 V) | 500 mA |
| Max out per port output (input 30-57 V) | 500 mA |
| Max total out (A) | 500 mA |
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 5 |
| Details | |
|---|---|
| SFP ports | 1 |
| Details | |
|---|---|
| Memory card type | microSD |
| Memory Cards | 1 |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Max USB current (A) | 1 |
| Details | |
|---|---|
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Mode button | Yes |
| Beeper | Yes |
| Details | |
|---|---|
| Certification | CE, EAC, ROHS |
| IP | IP20 |
