Product Details:
|
| Architecture: | ARM 32bit | CPU: | 98DX3236 |
|---|---|---|---|
| CPU Core Count: | 1 | CPU Nominal Frequency: | 800MHz |
| Dimensions: | 443 X 144 X 44 Mm | RouterOS License: | 5 |
| Operating System: | RouterOS / SwitchOS | Size Of RAM: | 512 MB |
| Storage Size: | 16 MB | Storage Type: | FLASH |
| MTBF: | Approximately 200'000 Hours At 25C | Tested Ambient Temperature: | -40°C To 60°C |
| Highlight: | SwitchOS Datacom Switches,24 Gigabit Port Switch,RouterOS Datacom Switches |
||
Gigabit port switch with 2 x SFP+ cages in 1U rackmount case, Dual boot (RouterOS or SwitchOS)
CRS326-24G-2S+RM

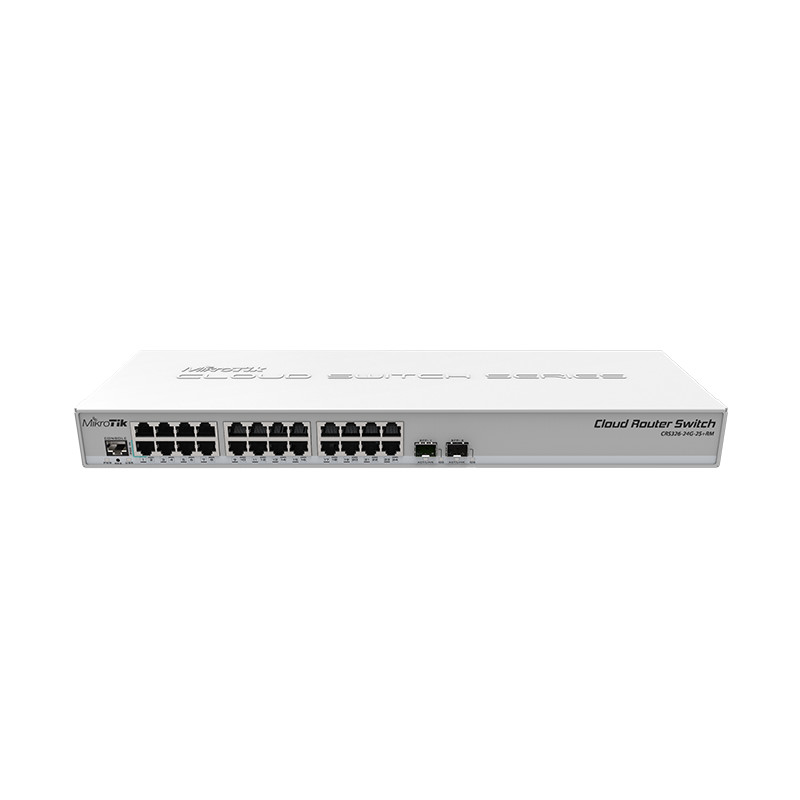

24 Gigabit port switch with 2 x SFP+ cages in 1U rackmount case, Dual boot (RouterOS or SwitchOS)
SwOS/RouterOS powered 24 port Gigabit Ethernet switch with two SFP+ ports, wire speed connectivity with several new switching features!
It has “Dual boot” feature that allows you to choose which operating system you prefer to use, RouterOS or SwOS. If you prefer to have a simplified switch only OS with more switch specific features, use SwOS. If you are used to Winbox and would like the ability to use routing and other Layer 3 features on some ports in your CRS, boot and use RouterOS. You can select the desired operating system from RouterOS, from SwOS or from the RouterBOOT loader settings.
It gives you all the basic functionality for a managed switch, plus more: allows to manage port-to-port forwarding, apply MAC filter, configure VLANs, mirror traffic, apply bandwidth limitation and even adjust some MAC and IP header fields. SFP cage supports both 1.25 Gb SFP and 10 Gb SFP+ modules.
| Details | |
|---|---|
| Product code | CRS326-24G-2S+RM |
| Architecture | ARM 32bit |
| CPU | 98DX3236 |
| CPU core count | 1 |
| CPU nominal frequency | 800 MHz |
| Dimensions | 443 x 144 x 44 mm |
| RouterOS license | 5 |
| Operating System | RouterOS / SwitchOS |
| Size of RAM | 512 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -40°C to 60°C |
| Details | |
|---|---|
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 10-30 V |
| Max power consumption | 24 W |
| Cooling type | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 10-30 V |
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 24 |
